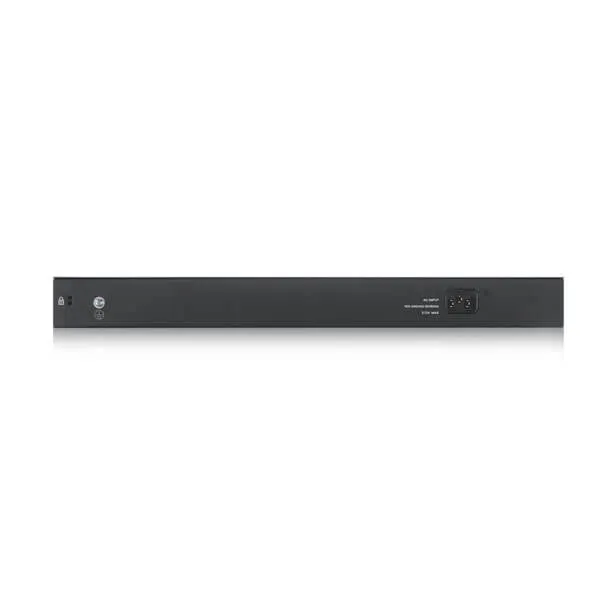

Zyxel XGS1930 52 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Ethernet
- IEEE 802.3ab 1000BASE-T Ethernet
- IEEE 802.3z 1000BASE-X
- IEEE 802.3ae 10-Gigabit Ethernet Over Fiber
- IEEE 802.3af PoE
- IEEE 802.3at PoE Plus
- IEEE 802.3az EEE
- IEEE 802.3x flow control
- IEEE 802.3ad LACP aggregation
- IEEE 802.1D Spanning Tree Protocol (STP)
- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
- IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
- IEEE 802.1p Class of Service (CoS) prioritization
- IEEE 802.1X port authentication
The most affordable choice for 10G migration
The XGS1930 series, a new 10G uplink smart managed switch, comes with a stylish new look and enables cloud manageability with Zyxel NebulaFlexTM technology.
Built for convenience
This smart-looking switch features an intuitive design that simplifies daily network management for SMBs.
Manage it your way!
The XGS1930 series introduces Zyxel NebulaFlexTM, which allows you to easily switch between standalone mode and our license-free Nebula cloud management platform anytime with just a few simple clicks.
Don’t overspend to upgrade your wired network
With Gigabit connectivity plus four 10G uplinks, the XGS1930 series is ideal for those seeking to upgrade to an easier-to-manage network—and at an affordable price.
Whisper-quiet operation
Smart fan and fanless designs for silent operation in your workplace.
Power more devices more easily
– Provides 30W per port and a high power budget of 375W, ideal for denser PoE deployments.
– Default consumption mode boosts efficiency by delivering the actual power required.
User-friendly LED indicators
View real-time status instantly with cloud and PoE power-usage LED indicators.
Zyxel ONE Network
Use the complimentary ZON Utility to configure and discover switches, WLANs, and gateways in your network with one click.
Designed for the long haul
A web smart managed switch with an enterprise-grade hardware design. Built-in state-of-the-art hardware technology brings high quality and robustness to SMB networks.
| Management features | |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Network | |
|---|---|
| Number of VLANs | 4000 |
| Virtual LAN features | Port-based VLAN, Voice VLAN |
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Routing entries | 32 |
| IP routing | Yes |
| Port mirroring | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Packet buffer memory | 1.5 MB |
| Static route | Yes |
| Forwarding rate | 130.9 Mpps |
| Switching capacity | 176 Gbit/s |
| MAC address table | 16000 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, SNMPv3, SSL/TLS |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| Password protection | Yes |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client |
| Protocols | |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Design | |
|---|---|
| Electromagnetic compatibility | FCC 15 A, CE A, BSMI EMC |
| Product colour | Black |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 494960 h |
| Noise level | 28.4 dB |
| Flash memory | 32 MB |
| Internal memory | 512 MB |
| Power | |
|---|---|
| Power consumption (max) | 498.4 W |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 375 W |
| Power over Ethernet (PoE) ports quantity | 48 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Heat dissipation | 1699.544 BTU/h |
| Storage relative humidity (H-H) | 10 – 95% |
| Operating relative humidity (H-H) | 10 – 95% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 5.1 kg |
| Height | 44 mm |
| Depth | 330 mm |
| Width | 441 mm |
| Packaging content | |
|---|---|
| Rack mount kit | Yes |
| Cables included | AC |
| Packaging data | |
|---|---|
| Package weight | 6.31 kg |
| Package height | 95 mm |
| Package depth | 503 mm |
| Package width | 585 mm |
| Package type | Box |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
