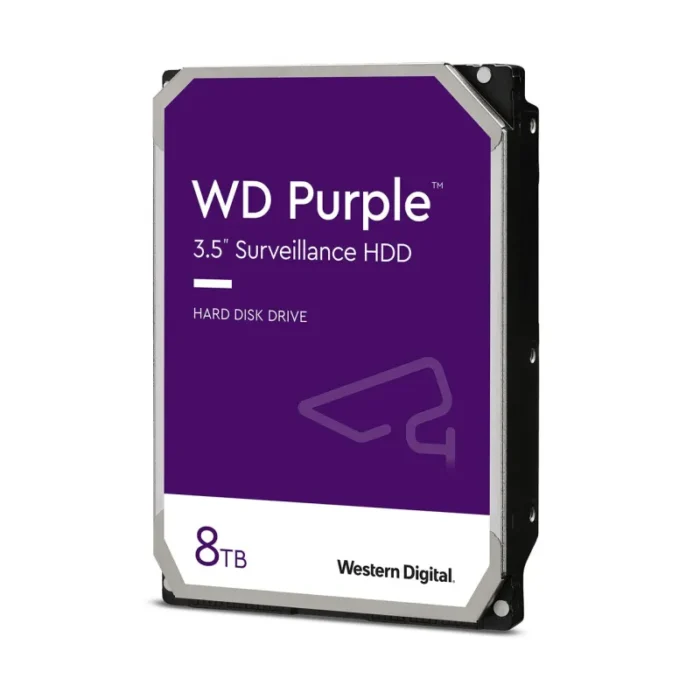

Western Digital WD Purple internal hard drive 8 TB 5640 RPM 128 MB 3.5″ Serial ATA III
- 8 TB 3.5″ 5640 RPM Serial ATA III
- Surveillance system HDD
- Storage drive buffer size: 128 MB
- 6 Gbit/s
- 720 g
UNCOMPROMISING STORAGE
Built for 24/7, always-on, high-definition security systems. With a supported workload rate of up to 180 TB/yr and support for up to 64 cameras, WD Purple drives are optimized for surveillance systems. WD Purple 8TB, 10TB & 12TB drives are designed to support Deep Learning analytics in AI capable NVRs, and feature an enhanced workload rating of up to 360TB/yr, and up to 16 AI channels for analytics within the system.
The Right Drive for the Job
WD Purple drives have been engineered specifically for the extreme demands of high temperature, 24/7 surveillance systems.
Performance You Can Trust
From a worldwide leader in the storage industry, WD Purple is engineered for quality video playback when you need it most.
Expand Your View to 64
WD Purple drives are optimized to support up to 64 cameras, giving you flexibility to upgrade or expand your security system.
SEAMLESS INTEGRATION
With a wide range of industry-leading enclosures and chipsets supported, you’re sure to find the configuration and compatibility that’s right for your NVR.
LESS IS MORE
Low power consumption is a must in a high-temperature, always-on surveillance environment. IntelliSeek technology helps reduce damaging ambient noise and vibrations.
DESIGNED FOR SURVEILLANCE
The WD Purple drive is designed for both DVR and NVR security systems, and is compatible with many of the the leading surveillance and security manufacturers. We can help you find the perfect storage for your system.
| Features | |
|---|---|
| Mean time between failures (MTBF) | 1000000 h |
| Start/stop cycles | 300000 |
| HDD average transfer rate | 194 MB/s |
| HDD interface transfer rate | 6 Gbit/s |
| Storage drive buffer size | 128 MB |
| Hot-swap | No |
| Component for | Surveillance system |
| Type | HDD |
| Interface | Serial ATA III |
| HDD size | 3.5″ |
| HDD speed | 5640 RPM |
| HDD capacity | 8 TB |
| Power | |
|---|---|
| Power consumption (read) | 6.2 W |
| Power consumption (write) | 6.2 W |
| Power consumption (idle) | 5.5 W |
| Power consumption (standby) | 0.4 W |
| Operational conditions | |
|---|---|
| Non-operating shock | 250 G |
| Operating shock | 30 G |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 65 °C |
| Packaging content | |
|---|---|
| Storage drive adapter included | No |
| Weight & dimensions | |
|---|---|
| Weight | 720 g |
| Height | 26.1 mm |
| Depth | 147 mm |
| Width | 101.6 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717050 |
| Other features | |
|---|---|
| Compliance certificates | RoHS |
