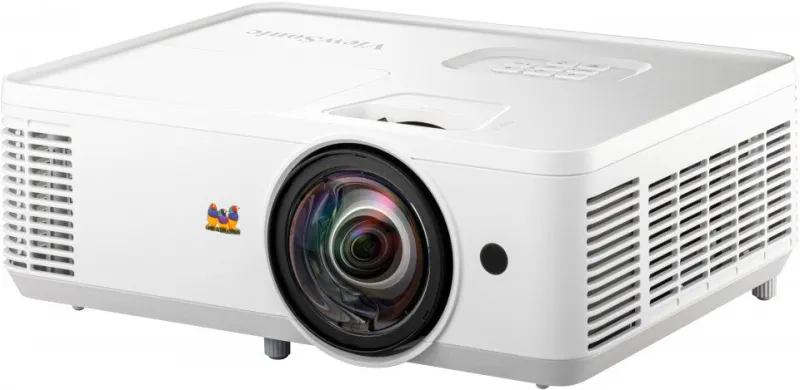

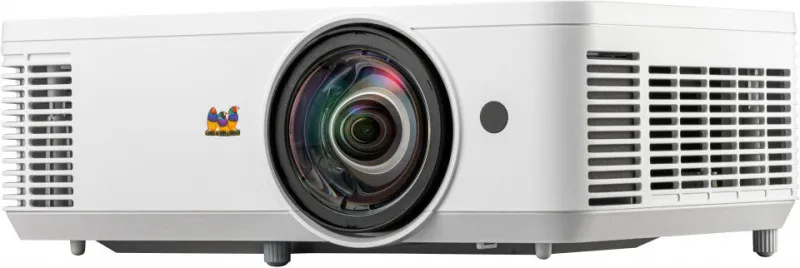

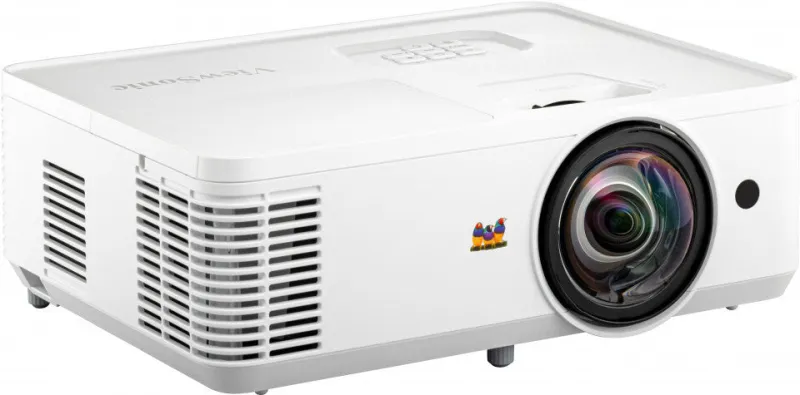

Viewsonic PS502W data projector Short throw projector 4000 ANSI lumens WXGA (1280×800) White
- 4,000 ANSI Lumens offering clear images in any environment
- 0.52 Short throw ratio for minimal space consumption
- Up to 300″ ultra large screen with lower cost-per-inch
- Easy and flexible connection: dual HDMI ports, USB Type-A port
- Convenient software updates for projectors via USB connection
The PS502W is ViewSonic’s high brightness WXGA short throw business/education projector. Boasting 4,000 ANSI Lumens of high brightness, the projector offers clear images of up-to-300” large screen in meeting rooms, classrooms, or any other bright environment. With 0.52 short throw ratio, the projector can provide 100” large screen size from only 1.1 m away without being obstructed by shadows, allowing for a large screen even in small spaces. The dual HDMI ports allow you to flexibly connect to multiple devices, easily switching between content sources. The USB Type-A port can supply power to HDMI wireless dongles, making wireless content streaming more convenient. The projector also allows software updates via USB cable connection with simply your laptops, skipping trips to service centers.
High Brightness for Business & Education Environments
Thanks to 4,000 ANSI Lumens brightness, you’re guaranteed clear visuals of vibrancy, which are perfectly suitable for spaces with a lot of ambient light.
Big Screen for Small Spaces
The PS502W’s 0.52 short throw projection gives you 100” from only 1.3m away when positioning the projector. Presenters will stay clear of the projector beam, eliminating eye glare and shadows on the projection screen.
Ultra-Large Screen with Lower Cost-per-inch
The projector allows for an up-to-300” image size, which is much larger and easier to install than commercial displays.
Easy and Flexible Connection
The dual HDMI ports offer ample connectivity to accommodate all your HDMI-enabled multimedia devices. You no longer have to unplug your existing device to switch to a new one. Simply use the on-screen display to select and change the input source.
Vibrant Colors for Captivating Presentations
Impress any audience with ViewSonic’s exclusive color technology and elevate your presentation with a true-to-life color experience.
A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily and onsite via USB cable connection with your laptop.
*The latest projector software update can be found in the download section at the bottom of the page when available.
USB Type A Power Supply
A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming your multimedia content.
Audio Right Out of the Box
The projector comes equipped with a 16W speaker, allowing for audio to be delivered during presentations without the need for external speakers.
| Projector | |
|---|---|
| Keystone correction, vertical | -19 – 19° |
| Horizontal scan range | 15 – 102 kHz |
| Vertical scan range | 23 – 120 Hz |
| Number of colours | 1.07 billion colours |
| Projection distance | 0.67 – 3.36 m |
| Screen size compatibility | 1524 – 7620 mm (60 – 300″) |
| Smart projector | No |
| Contrast ratio (typical) | 15000:1 |
| Projector native resolution | WXGA (1280×800) |
| Projector brightness | 4000 ANSI lumens |
| Light source | |
|---|---|
| Lamps quantity | 1 lamp(s) |
| Lamp power | 240 W |
| Lamp type | UHP |
| Service life of light source (economic mode) | 12000 h |
| Service life of light source | 4000 h |
| Light source type | Lamp |
| Lens system | |
|---|---|
| Offset | 112.4% |
| Throw ratio | 0.52 |
| Digital zoom | 2x |
| Zoom capability | Yes |
| F-number (relative aperture) | 2.8 |
| Fixed focal length | 7.51 mm |
| Focus | Manual |
| Video | |
|---|---|
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1080 (HD 1080) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| 3D | No |
| Full HD | Yes |
| Analog signal format system | NTSC, PAL, SECAM |
| Ports & interfaces | |
|---|---|
| AC (power) in | Yes |
| PC in (D-Sub) | Yes |
| PC Audio out | Yes |
| PC Audio in | Yes |
| Serial interface type | RS-232 |
| USB 2.0 Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Service port type | USB Type-A |
| DVI port | No |
| HDMI version | 1.4 |
| HDMI connector type | Full-size |
| HDMI ports quantity | 2 |
| VGA (D-Sub) ports quantity | 2 |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | No |
| Smart TV | No |
| Storage | |
|---|---|
| Card reader integrated | No |
| Features | |
|---|---|
| Air filter | Yes |
| HDCP version | 1.4 |
| Number of OSD languages | 22 |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Indonesian, Italian, Korean, Polish, Portuguese, Russian, Thai, Turkish, Vietnamese |
| On Screen Display (OSD) | Yes |
| HDCP | Yes |
| Noise level (economic mode) | 25 dB |
| Noise level | 34 dB |
| Interactive | No |
| Multimedia | |
|---|---|
| RMS rated power | 16 W |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| LED indicators | Yes |
| Product colour | White |
| Market positioning | Education |
| Product type | Short throw projector |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 295 W |
| Power source | AC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Package weight | 4.08 kg |
| Package height | 168 mm |
| Package depth | 337 mm |
| Package width | 400 mm |
| Height | 115 mm |
| Depth | 234 mm |
| Width | 309 mm |
| Weight | 2.87 kg |
| Packaging content | |
|---|---|
| Warranty card | Yes |
| Cables included | AC, VGA |
| Quick start guide | Yes |
| Remote control type | IR |
| Remote control included | Yes |
| Technical details | |
|---|---|
| Image lag time | 33.2 ms |
