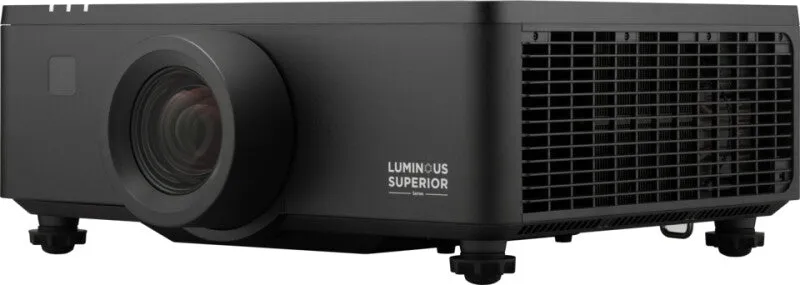

Viewsonic LS950-4K data projector Standard throw projector 7100 ANSI lumens UHD 4K (3840×2160) Black
- 7,100 ANSI Lumens with a high native contrast ratio ensure vibrant images in large venues
- True 4K HDR delivers exceptional image clarity and detail
- Supports 21:9 aspect ratio, ideal for Microsoft Teams Rooms
- Installation flexibility: motorized focus, 1.6x optical zoom, lens shift , H/V keystone correction, and 360° projection
- Centralized LAN control for efficient management
- 3rd generation laser phosphor technology with up to 30,000-hour lifespan
Introducing the LS950-4K from ViewSonic’s Luminous Superior Series, tailored for expansive venue displays. Featuring a robust 7,100 ANSI Lumens brightness and high native contrast through DLP technology, it delivers stunning 4K UHD visuals on screens exceeding 100 inches. Perfect for museums and educational institutions, the LS950-4K’s ultra-high resolution with HDR/HLG support ensures every detail is vivid and clear, enhancing viewer engagement. With 21:9 aspect ratio support, the LS950-4K is also an ideal choice for Microsoft Teams Rooms. Its 1.6x optical zoom allows for a flexible setup to suit various installation needs, and the motorized focus, lens shift, and H/V keystone adjustment make the process a breeze. Additionally, portrait mode and 360° projection capabilities cater to more advanced requirements. Comprehensive LAN control ensures seamless integration into corporate networks. Employing advanced 3rd generation laser phosphor technology, the LS950-4K boasts a remarkable 30,000-hour lifespan, reducing maintenance costs for both business and educational institutions.
| Projector |
| Keystone correction, horizontal |
-30 – 30° |
| Keystone correction, vertical |
-30 – 30° |
| Horizontal scan range |
15 – 135 kHz |
| Vertical scan range |
23 – 240 Hz |
| Number of colours |
1.07 billion colours |
| Projection distance |
1.36 – 13.42 m |
| Screen size compatibility |
1270 – 7620 mm (50 – 300″) |
| Supported aspect ratios |
16:9 |
| Native aspect ratio |
16:9 |
| Contrast ratio (typical) |
300000:1 |
| Projector native resolution |
UHD 4K (3840×2160) |
| Projector brightness |
7100 ANSI lumens |
| Light source |
| Service life of light source (economic mode) |
30000 h |
| Service life of light source |
20000 h |
| Light source type |
Laser |
| Lens system |
| Offset |
0% |
| Zoom capability |
Yes |
| Aperture range (F-F) |
2 – 2.1 |
| Focal length range |
18.72 – 29.59 mm |
| Ports & interfaces |
| AC (power) in |
Yes |
| 3D sync port |
Yes |
| Audio (L/R) out |
1 |
| USB 2.0 ports quantity |
1 |
| HDMI ports quantity |
3 |
| Features |
| Noise level (economic mode) |
32 dB |
| Noise level |
34 dB |
| Multimedia |
| Number of built-in speakers |
2 |
| RMS rated power |
20 W |
| Built-in speaker(s) |
Yes |
| Design |
| LED indicators |
Yes |
| Product colour |
Black |
| Market positioning |
Education |
| Product type |
Standard throw projector |
| Display |
| Built-in display |
No |
| Power |
| AC input frequency |
50 – 60 Hz |
| AC input voltage |
100 – 240 V |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
450 W |
| Power source |
AC |
| Operational conditions |
| Operating temperature (T-T) |
5 – 40 °C |
| Weight & dimensions |
| Package weight |
18.8 kg |
| Package height |
373 mm |
| Package depth |
563 mm |
| Package width |
654 mm |
| Height |
186 mm |
| Depth |
433 mm |
| Width |
486 mm |
| Weight |
14.1 kg |
| Packaging content |
| Manual |
Yes |
| Remote control included |
Yes |
