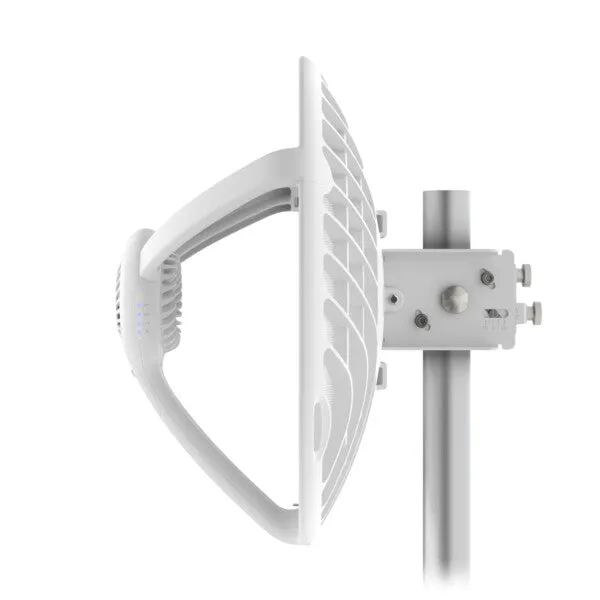

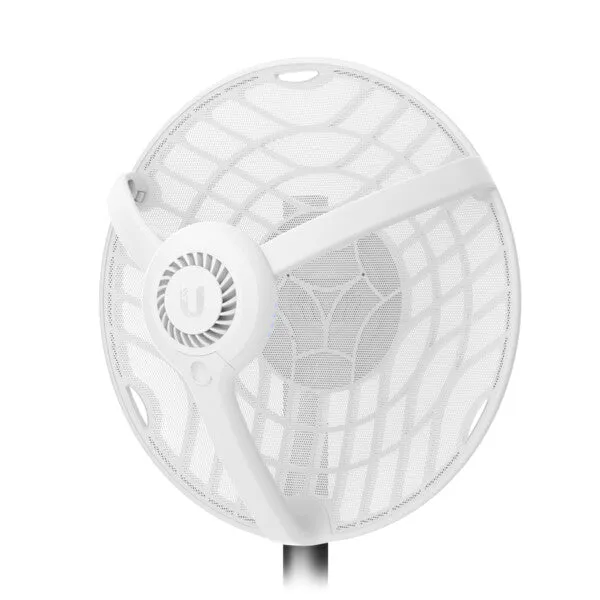

Ubiquiti airFiber 60 LR
- Low-Interference 60 GHz Spectrum
- Integrated GPS
- Long Range, Up to 12 km
- Precision Alignment Mount Included
- link.ui.com Planning Support
- Quick Setup Using the *UISP™ App via Bluetooth
airFiber 60 GHz Radio System Featuring Wave Technology with True Duplex Gigabit Performance for PtP Links over 12 km Distances
AF60 LR is a 60GHz radio designed for high-throughput connectivity over an extended range. The airFiber 60 LR features the integrated high-gain dish antenna for high speed, long-range performance Point-to-Point (PtP) links. New WaveTechnology enables incredible long-range performance within the 60GHz spectrum.
Includes a built-in Bluetooth management radio for easy setup.
| Data transmission | |
|---|---|
| Maximum transfer distance | 12000 m |
| Maximum data transfer rate | 1800 Mbit/s |
| Antenna | |
|---|---|
| Antenna design | External |
| Wireless LAN features | |
|---|---|
| Frequency band | 60 GHz |
| Network | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired & Wireless |
| Security | |
|---|---|
| Security algorithms | AES, WPA2-PSK |
| Management features | |
|---|---|
| Web-based management | Yes |
| Features | |
|---|---|
| RAM type | DDR3 |
| Internal memory | 256 MB |
| Power LED | Yes |
| LED indicators | LAN |
| Product colour | White |
| Mounting type | Pole |
| Material | Aluminium, Polycarbonate (PC) |
| Product type | Network bridge |
| System requirements | |
|---|---|
| Minimum system requirements | Modern Web Browser or Android/iOS Smartphone |
| Power | |
|---|---|
| Power over Ethernet (PoE) voltage | 48 V |
| Power consumption (max) | 18 W |
| Power source type | PoE |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 – 95% |
| Operating temperature (T-T) | -40 – 60 °C |
| Certificates | |
|---|---|
| Certification | FCC, IC, CE |
| Weight & dimensions | |
|---|---|
| Weight | 2.7 kg |
| Depth | 360 mm |
| Antenna diameter | 41.3 cm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
