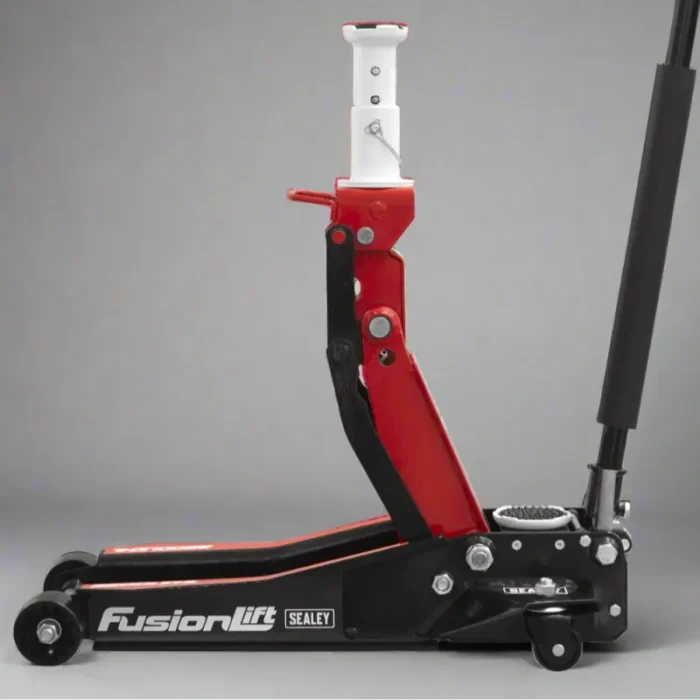

Trolley Jack 2/3 Tonne Low Profile High Lift 98-770mm – Sealey Model 3200LEHL
Trolley Jack 2/3 Tonne Low Profile High Lift Rocket Lift – Sealey Model 3200LEHL
This revolutionary “fusion” trolley jack replaces three separate jacks by combining low entry, high lift, and super high lift capabilities in one adjustable unit. With an extraordinary 98-770mm height range and twin-piston Rocket Lift technology, this jack transforms from ultra-low profile for sports cars to extreme height for off-road vehicles and SUVs. The reinforced lifting arm and cast iron twin-piston pump deliver rapid deployment whilst dual capacity ratings (2 tonne low profile/3 tonne high lift) provide maximum versatility for any workshop application.

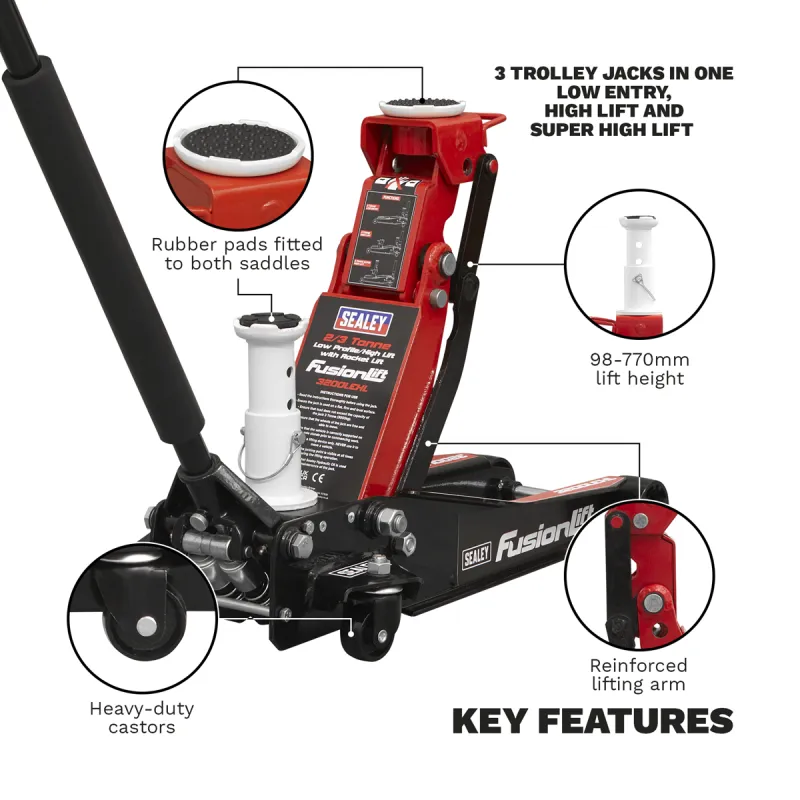

Key Features and Benefits
Three Jacks in One Fusion Design
Replaces separate low entry, high lift, and super high lift jacks with one versatile unit. The quickly adjustable lifting span eliminates the need for multiple jacks, saving workshop space and equipment costs whilst providing complete vehicle coverage from sports cars to extreme off-road vehicles.
Extraordinary 98-770mm Height Range
Ultra-low 98mm entry height slides under the lowest sports and custom cars, while 770mm maximum height reaches extreme off-road vehicles and high SUVs. This exceptional 672mm lifting range handles virtually any vehicle type with a single jack.
Twin-Piston Rocket Lift Technology
Cast iron pump with dual pistons brings the lifting arm into contact with jacking points in minimal pumps, dramatically reducing setup time and operator effort. The rapid deployment system transforms workshop efficiency for high-volume operations.
Dual Capacity Rating System
Provides 2 tonne capacity in low profile mode and 3 tonne capacity in high lift configuration, optimising load handling for different vehicle types. This intelligent capacity system ensures maximum safety whilst providing flexibility for diverse lifting applications.
Reinforced Heavy-Duty Construction
Features strengthened lifting arm with solid U-channel side plates for maximum rigidity under load. The reinforced design maintains stability and precision even at extreme height extensions, ensuring safe operation across the full lifting range.
Professional Protection Features
Includes rubber pads on both saddles to prevent vehicle damage, foam-protected 2-piece handle to avoid bodywork scratches, and 360° rear castors for smooth positioning. These protective elements safeguard both vehicles and workshop floors during operations.
Technical Specifications and Construction
Dual Capacity System: 2 tonne capacity (low profile mode) / 3 tonne capacity (high lift mode) optimised for different vehicle applications.
Exceptional Height Range: 98mm minimum to 770mm maximum saddle height providing 672mm total vertical travel with 153mm maximum chassis clearance.
Compact Dimensions: 805mm overall length with 44.5kg construction weight for workshop manoeuvrability and storage efficiency.
Twin-Piston System: Cast iron hydraulic pump with dual pistons for rapid lifting deployment and reduced operator effort during setup.
Safety Construction: Reinforced lifting arm with U-channel side plates, rubber saddle protection, and heavy-duty castor system for stable operation.
Professional Warranty: Backed by Sealey’s comprehensive warranty for reliable performance in demanding workshop environments requiring versatile lifting solutions.
