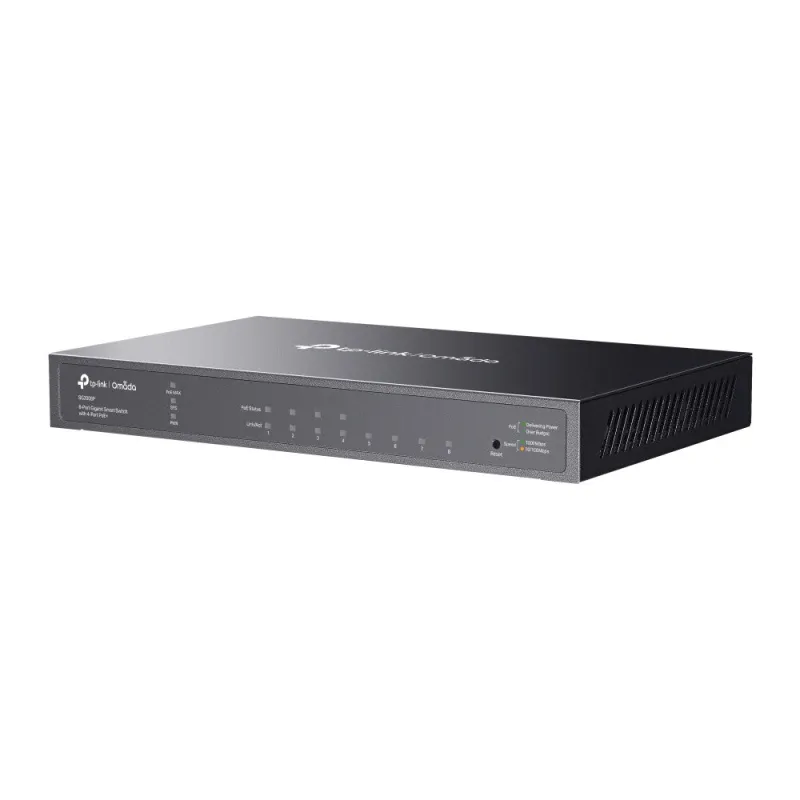

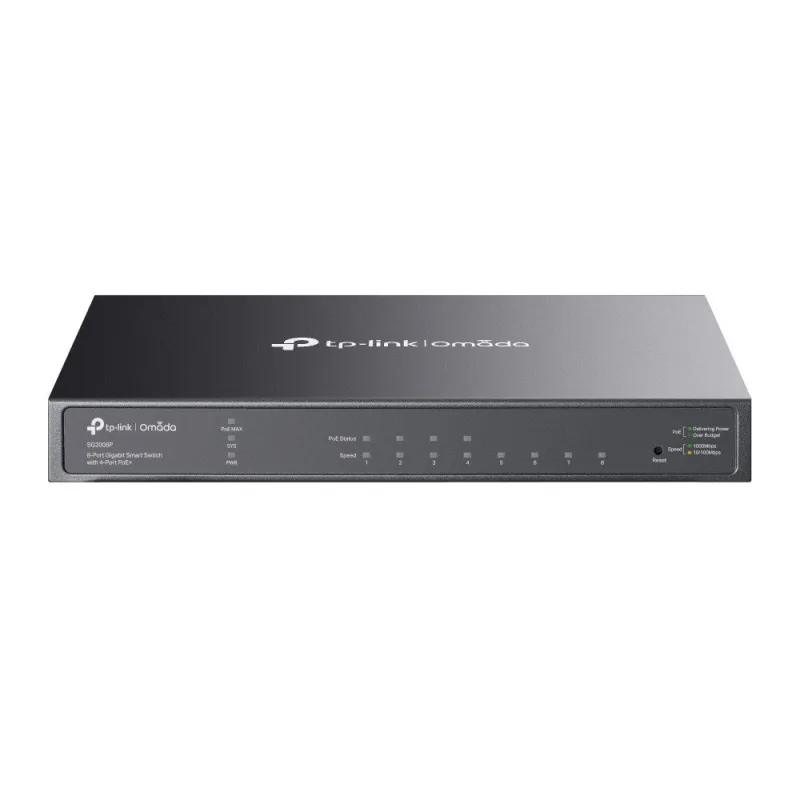

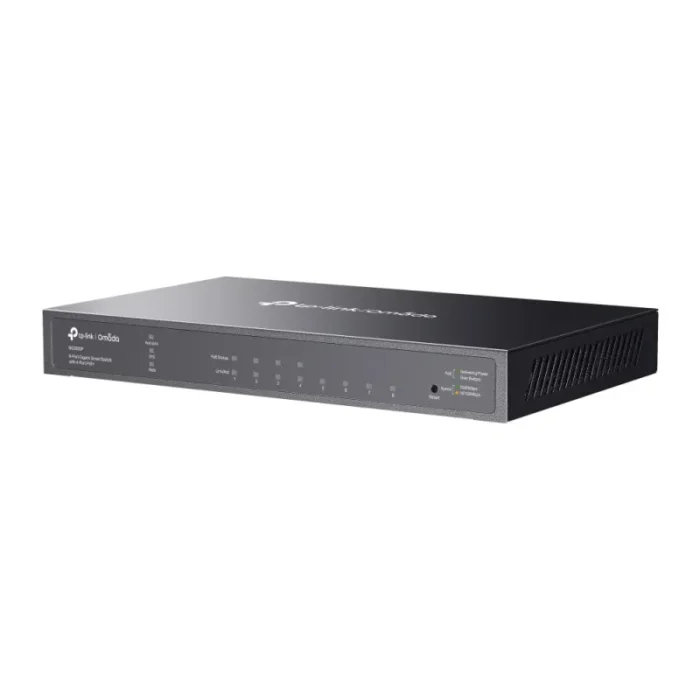

TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+
- 8× Gigabit ports (4× 802.3at/af-compliant PoE+ ports)
- 62 W total PoE budget with up to 30 W PoE output per port*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
| Management features |
| MIB support |
MIB II (RFC1213) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIBs RMON MIB(RFC1757, rmon 1,2,3,9) |
| System event log |
Yes |
| ARP inspection |
Yes |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2/L2+ |
| Switch type |
Managed |
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
| Number of VLANs |
4094 |
| VLAN support |
Yes |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| Rate limiting |
Yes |
| Broadcast storm control |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Data transmission |
| Packet buffer memory |
4.1 MB |
| Jumbo frames |
9000 |
| Jumbo frames support |
Yes |
| Number of queues |
8 |
| Forwarding rate |
11.9 Mpps |
| Switching capacity |
16 Gbit/s |
| MAC address table |
8000 entries |
| Security |
| Security algorithms |
802.1x RADIUS |
| Authentication |
MAC-based authentication, Web-based authentication |
| Authentication type |
RADIUS |
| MAC address filtering |
Yes |
| IGMP snooping |
Yes |
| DHCP features |
DHCP client, DHCP relay, DHCP snooping, DHCPv6 server, DHCPv6 snooping |
| Multicast features |
| Multicast support |
Yes |
| Protocols |
| IPv4 & IPv6 features |
IPv6 Telnet, IPv6 ping, IPv6 tracert |
| Management protocols |
SNMPv1/v2c/v3 |
| Design |
| LED indicators |
Yes |
| Product colour |
Black |
| Rack mounting |
Yes |
| Power |
| Power consumption (max) |
77.3 W |
| Power supply included |
Yes |
| Power over Ethernet (PoE) |
| Power over Ethernet plus (PoE+) ports quantity |
4 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Heat dissipation |
263.6 BTU/h |
| Storage relative humidity (H-H) |
5 – 90% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Height |
26 mm |
| Depth |
126 mm |
| Width |
209 mm |
| Packaging content |
| Manual |
Yes |
| Packaging data |
| Package type |
Box |
| General |
| Product family |
Omada |
| Certificates |
| Certification |
CE, FCC, RoHS |
