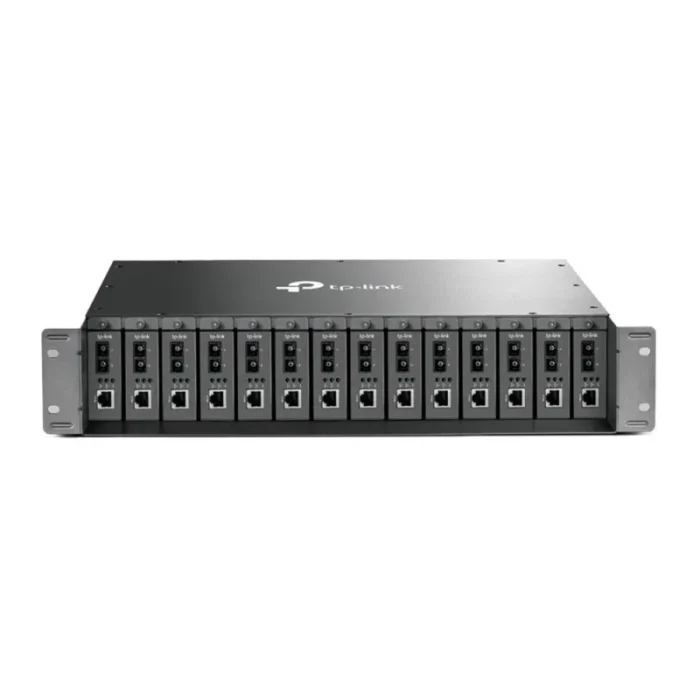

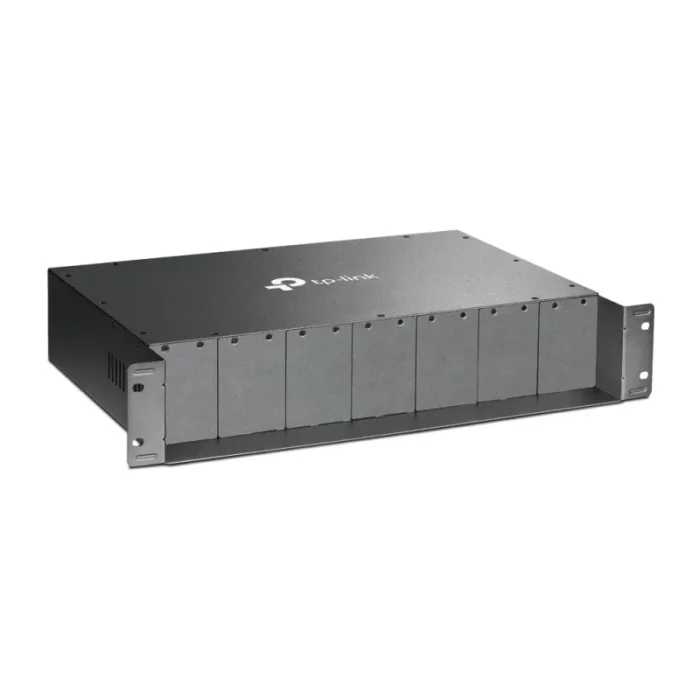

TP-LINK (MC1400) 14-Slot Rackmount Chassis, 14 Bays for up to 14 Media Converters, Hot-Swappable, 2 Fans
- 14 bays to house up to 14 media converters
- Optional redundant power supply to ensure non-stop reliable operation
- Hot-Swappable; easy & quick replacement of converter and power supply
- Mounted two cooling fans for better ventilation
What This Product Does
The TL-MC1400 14-Slot Rack-mount Chassis is specially designed to accommodate 14 TP-LINK‘s Media Converters for central power supply, saving space and power cables. Continuous operation is of great importance to fiber communication, so the chassis is equipped with optional redundant power supply and Hot-Swapping function which allows installing/removing the converter/power supply without powering off the chassis. Moreover, to stabilize the performance and extend the lifetime, two cooling fans are installed internally. Together with MC series Gigabit / Fast Ethernet media converters, TL-MC1400 is the ideal solution for your media conversion network.
| Technical details |
| Dimensions (WxDxH) |
482 x 358 x 86 mm |
| Size (imperial) |
48.3 cm (19″) |
| Ports quantity |
14 |
| Number of fans |
2 fan(s) |
| Rack capacity |
2U |
| Operational conditions |
| Operating temperature (T-T) |
0 – 40 °C |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage relative humidity (H-H) |
5 – 90% |
| Power |
| Power requirements |
100-240V |
| AC input frequency |
50 – 60 Hz |
| AC adapter output voltage |
9.5 V |
| Weight & dimensions |
| Weight |
8 kg |
| Width |
482 mm |
| Depth |
309 mm |
| Height |
86 mm |
| Packaging data |
| Package weight |
6.7 kg |
| Package height |
170 mm |
| Package depth |
455 mm |
| Package width |
585 mm |
