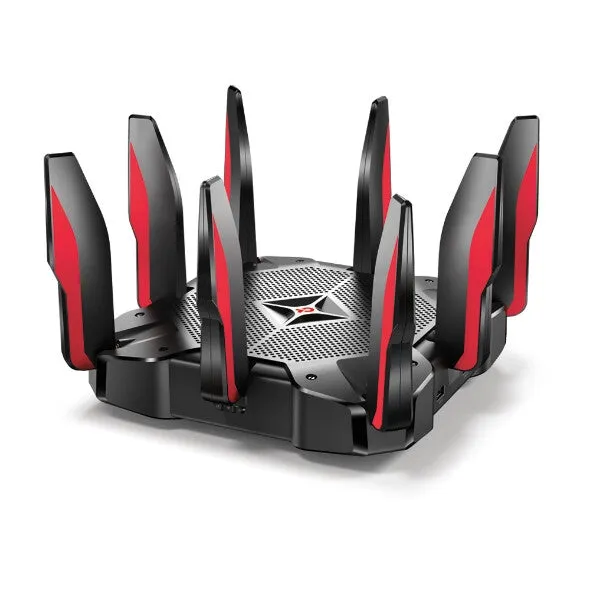

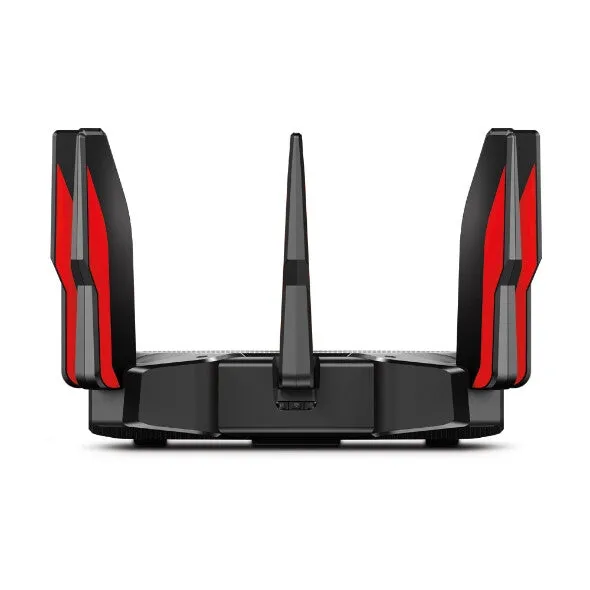

TP-Link Archer C5400X wireless router Gigabit Ethernet Tri-band (2.4 GHz / 5 GHz / 5 GHz) Black, Red
- TP-Link first gaming router
- 1.8GHz 64-bit quad-core CPU, 3 co-processor and 1GB RAM
- Tri-band with blazing fast speed at 5334 Mbps in total
- HomeCare for all-around protection
- VPN acceleration for 5 times faster VPN connection
BATTLE-TESTED PROCESSING
When you game at the highest settings, it’s imperative you have impressive processing power. Quad-core means power. With a 1.8 GHz 64-bit quad-core CPU, three co-processors and 1 GB RAM, the Archer C5400X delivers the raw power required to perfectly execute every service, thread and application to eradicate latency and deliver smooth gameplay.
INTELLIGENT TRAFFIC PRIORITIZATION
The Archer C5400X conquers lag, immediately eradicating it from your gaming experience. Its dynamic optimization engine automatically identifies gaming traffic to give you the tactical advantage during heated raids, PvP encounters and ranked matches. When you aren’t gaming, fast-track streaming to watch immersive 4K movies.
FULL-THROTTLE WIRELESS PERFORMANCE
The Archer C5400X employs MU-MIMO and Airtime Fairness to balance the requests of every device with speed and precision. Calibrated metrics and sophisticated algorithms determine how the router divides air time and distributes dedicated Wi-Fi streams to each device, leaving you to focus on taking down the opposition instead of fighting your allies for bandwidth.
FAR-REACHING WI-FI RANGE
Game from the basement to the garage and even the backyard with RangeBoost, which strengthens reception quality to reinforce connections in your home and keep both older and newer devices connected at greater distances than other routers.
ACCELERATED
WIRED CONNECTIONS

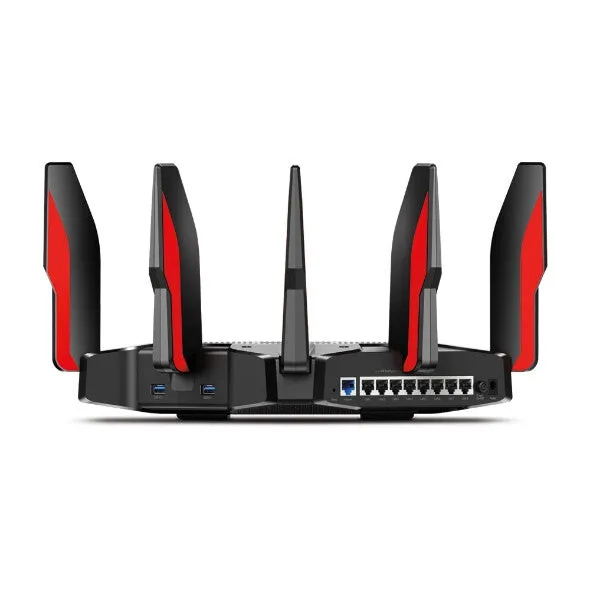

With eight Gigabit Ethernet ports, you can connect PCs, smart TVs and game consoles to fast, wired connection without needing a switch.
Team two LAN ports using Link Aggregation to double connection speeds from 1 Gbps to 2 Gbps for Network Attached Storage (NAS) devices and PCs. Combine the WAN port with a LAN port to connect DOCSIS 3.1 modems for best-in-industry internet speeds.
| WAN connection | |
|---|---|
| SIM card slot | No |
| Ethernet WAN | Yes |
| Wireless LAN features | |
|---|---|
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 2167 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 5 GHz) |
| Network | |
|---|---|
| Receiver sensitivity | 5GHz:11a 6Mbps: -94dBm, 11a 54Mbps: -76dBm11ac VHT20_MCS0: -96dBm, 11ac VHT20_MCS11: -64dBm11ac VHT40_MCS0: -93dBm, 11ac VHT40_MCS11: -61dBm11ac VHT80_MCS0: -89dBm, 11ac VHT80_MCS11: -58dBm,2.4GHz:11g 6Mbps: -97dBm, 11g 54Mbps: -79dBm11n HT20_MCS0: -98dBm, 11n HT20_MCS7: -77dBm11ac VHT20_MCS11: -66dBm, 11n HT40_MCS0: -95dBm11n HT40_MCS7: -75dBm, 11ac VHT40_MCS11: -64dBm |
| Port forwarding | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Mobile network | |
|---|---|
| 3G | No |
| 4G | No |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Memory card slot(s) | No |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB port | Yes |
| Ethernet LAN (RJ-45) ports | 8 |
| Management features | |
|---|---|
| WPS push button | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Security | |
|---|---|
| IP address filtering | Yes |
| MAC address filtering | Yes |
| Filtering | Yes |
| DoS attack prevention | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Guest access | Yes |
| Firewall | Yes |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Protocols | |
|---|---|
| Supported network protocols | IPv4, IPv6 |
| DHCP server | Yes |
| DHCP client | Yes |
| Design | |
|---|---|
| On/off switch | Yes |
| LED indicators | Power |
| Product colour | Black, Red |
| Product type | Tabletop router |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Certificates | |
|---|---|
| Certification | CE, FCC, RoHS |
| Antenna | |
|---|---|
| Transmit power | 20 dBmW |
| Antennas quantity | 8 |
| Antenna design | External |
| Features | |
|---|---|
| Firmware upgradeable | Yes |
| Processor cores | 4 |
| Processor frequency | 1800 MHz |
| Built-in processor | Yes |
| Power | |
|---|---|
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 -240 V |
| Power source type | AC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| System requirements | |
|---|---|
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Weight & dimensions | |
|---|---|
| Width | 240.5 mm |
| Depth | 240.5 mm |
| Height | 55.3 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
