Tio 10 Port Manifold With Pressure Gauge & Auto Air Vent | TIOMAN0010

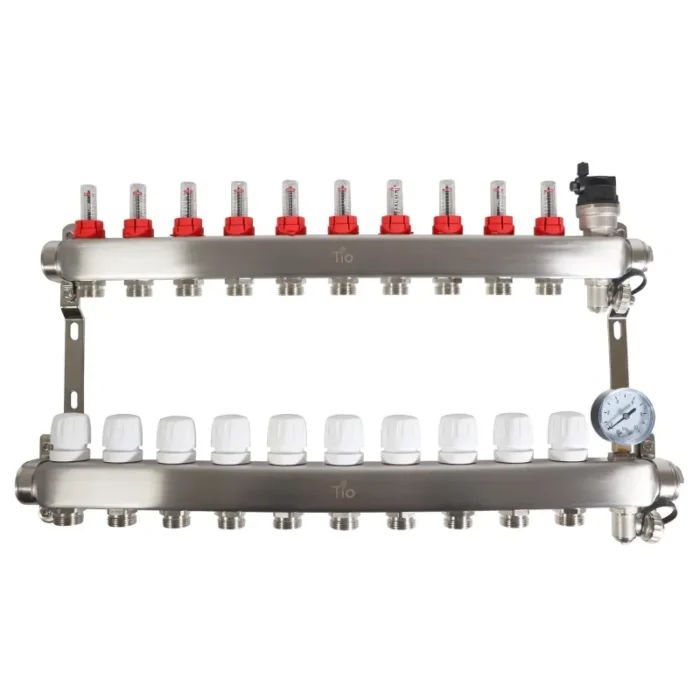

10 Port Manifold with PG and AAV – 580mm
The Tio premium stainless-steel manifold is a pre-assembled unit for use within either underfloor heating systems or wall-hung radiator systems.
- The unit is pre-assembled and complete with an auto air vent (AAV), 10 bar pressure gauge, flow meters with 0-5 l/m indicators and fill and drain valves.
- Compatible with various pipe sizes up to 20mm.
- Integrated filling and drain off valves to ease long term maintenance
The Tio manifold has a standard UK distance of 210mm between the flow and return bars. This makes the unit versatile with various mixing units. The unit has a spacing of 50mm between each port from the centre point. This enables various pipe sizes and materials to be installed. For ease of installation, we recommend no larger than 20mm pipe to be installed with the Tio manifold connectors. The unit has 1” threaded inlets to house isolation valves. The bottom rail has a modulating pin that can be either manually adjusted with the white adjusting caps, or to achieve electronic control an actuator can be installed.
