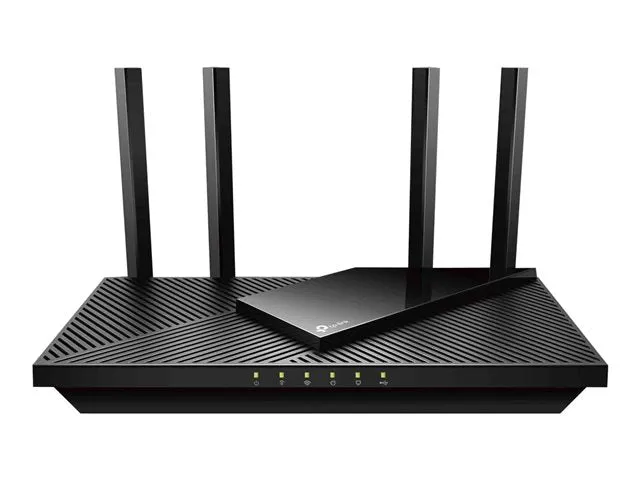

TieDex UK TP-Link Archer AX55 V1 – wireless router – Wi-Fi 6 – desktop
TP-Link Archer AX55 V1 – Wireless router 4-port switch – 1GbE – Wi-Fi 6 – Dual Band
Basic Specifications
- Manufacturer’s Part Number
- Archer AX55
- EAN
- 4897098683040
- Manufacturer Warranty
- 3-year warranty
- Product Description
- TP-Link Archer AX55 V1 – wireless router – Wi-Fi 6 – desktop
- Model
- TP-Link Archer AX55 V1
- Dimensions (WxDxH)
- 26.11 cm x 13.45 cm x 4.1 cm
- Features
- NAT support, VPN support, SPI, parental control, ACL support, QoS, WPS, DHCP server, FTP server, port forwarding, UPnP Media Server, reset button, port triggering, dynamic IP mode, DHCP client, power-saving mode, beamforming technology, Smart Connect, Airtime Fairness, DMZ support, OpenVPN client, OpenVPN server, 8K HD video streaming, OneMesh support, Guest Network, TP-Link HomeShield
- Device Type
- Wireless router – 4-port switch (integrated)
- Compliant Standards
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, UPnP, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6
- Frequency Band
- 2.4 GHz / 5 GHz
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
- Enclosure Type
- Desktop
- Routing Protocol
- Static IP routing
- Network / Transport Protocol
- PPTP, L2TP, PPPoE, FTP, DHCP, DNS, DDNS, IPv4, IPv6
- WAN Ports Qty
- 1
- Remote Management Protocol
- HTTP, DHCP
General
- Device Type
- Wireless router – 4-port switch (integrated)
- Enclosure Type
- Desktop
- Connectivity Technology
- Wireless, wired
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
- Frequency Band
- 2.4 GHz / 5 GHz
- Network / Transport Protocol
- PPTP, L2TP, PPPoE, FTP, DHCP, DNS, DDNS, IPv4, IPv6
- Routing Protocol
- Static IP routing
- Remote Management Protocol
- HTTP, DHCP
- Encryption Algorithm
- WPA, WPA2, WPS, WPA3, WPA3-Personal, WPA2-Personal, WPA-Personal
- Wi-Fi Rating
- AX3000
- Features
- NAT support, VPN support, SPI, parental control, ACL support, QoS, WPS, DHCP server, FTP server, port forwarding, UPnP Media Server, reset button, port triggering, dynamic IP mode, DHCP client, power-saving mode, beamforming technology, Smart Connect, Airtime Fairness, DMZ support, OpenVPN client, OpenVPN server, 8K HD video streaming, OneMesh support, Guest Network, TP-Link HomeShield
- Compliant Standards
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, UPnP, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6, FCC, RoHS
- Status Indicators
- Status
Dimensions & Weight
- Width
- 26.11 cm
- Depth
- 13.45 cm
- Height
- 4.1 cm
Miscellaneous
- Cables Included
- 1 x network cable
Manufacturer Warranty
- Service & Support
- Limited warranty – 3 years
Expansion / Connectivity
- Interfaces
- LAN: 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ USB 3.0: 1 x 9 pin USB Type A
Power
- Power Device
- External power adapter
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 – 90% (non-condensing)
Aerial
- Aerial
- External
- Antenna Qty
- 4
Line Properties
- Line Coding Format
- OFDMA
