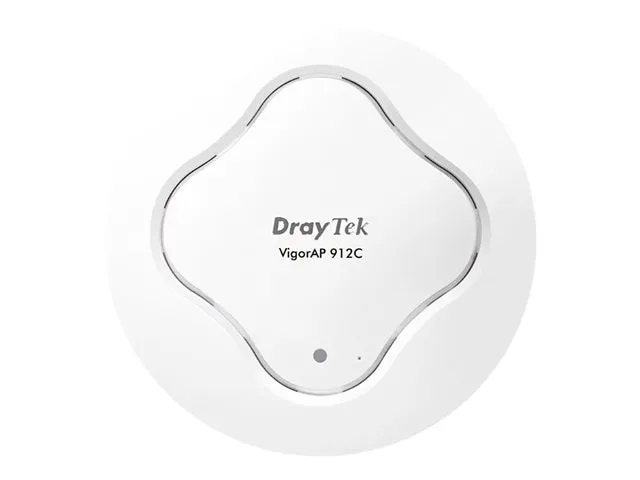

TieDex UK Draytek VigorAP 912C – radio access point – Wi-Fi 5
Draytek VigorAP 912C – Radio access point – Wi-Fi 5 – 2.4 GHz, 5 GHz – AC 100 – 240 V – in-ceiling
Basic Specifications
- Manufacturer’s Part Number
- VAP912C-K
- EAN
- 4712909129022
- Manufacturer Warranty
- 2-year warranty
- Weight
- 300 g
- Product Description
- Draytek VigorAP 912C – radio access point – Wi-Fi 5
- Model
- Draytek VigorAP 912C
- Dimensions (WxDxH)
- 16.2 cm x 16.2 cm x 4.2 cm
- Power
- AC 100 – 240 V
- Device Type
- Radio access point
- Performance
- Maximum data rate (2.4 GHz): 300 Mbps ¦ Maximum data rate (5 GHz): 866 Mbps
- Form Factor
- In-ceiling
- Frequency Band
- 2.4 GHz, 5 GHz
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
- Power Over Ethernet (PoE) Supported
- PoE
- Included Accessories
- Ceiling mounting kit, T-Rail mounting kit
General
- Device Type
- Radio access point
- Width
- 16.2 cm
- Depth
- 16.2 cm
- Height
- 4.2 cm
- Weight
- 300 g
Miscellaneous
- Included Accessories
- Ceiling mounting kit, T-Rail mounting kit
- Cables Included
- 1 x network cable
Manufacturer Warranty
- Service & Support
- Limited warranty – 2 years
Networking
- Form Factor
- In-ceiling
- Connectivity Technology
- Wireless
- Data Transfer Rate
- 866 Mbps
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
- Remote Management Protocol
- SNMP 2, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, CLI, TR-069
- Frequency Band
- 2.4 GHz, 5 GHz
- Performance
- Maximum data rate (2.4 GHz): 300 Mbps ¦ Maximum data rate (5 GHz): 866 Mbps
- Wi-Fi Rating
- AC1200
- Features
- Power over Ethernet (PoE), repeating mode, Syslog support, MAC address filtering, Wireless Distribution System (WDS) support, firmware upgradable, wall mountable, Mesh networking, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), RADIUS support, Wi-Fi Protected Setup (WPS), Multiple SSID support, hidden SSID, reset button, 2T2R MIMO technology, DHCP client, tagged VLAN, band steering, Airtime Fairness, Multi-User MIMO & Beamforming technology, AP-Assisted Roaming, Wireless Auto On/Off, Multi-SSID over Mesh, Client Limit per SSID, Trusted DHCP Server IP for WLAN, Device Object/Group Control
- Encryption Algorithm
- TLS, PEAP, WPA2, WPA2-PSK, WEP, WPA3
- Authentication Method
- RADIUS, Radio Service Set ID (SSID)
- Compliant Standards
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.11ac Wave 2
Expansion / Connectivity
- Interfaces
- 1 x 1000Base-T (PoE) – RJ-45
Power
- Power Over Ethernet (PoE) Supported
- PoE
- Power Device
- External power adapter
- Voltage Required
- AC 100 – 240 V
- Power Consumption Operational
- 10 Watt
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 10 – 90% (non-condensing)
Aerial
- Antenna
- Internal
