Thermaltake S100 TG Micro Tower Black
- Micro Tower PC
- micro ATX, Mini-ITX
- Supported HDD sizes: 2.5,3.5″
- Number of 2.5″ bays: 2 Number of 3.5″ bays: 2
- Side window Tempered glass panel(s) Anti-dust filter
- SPCC
- Black

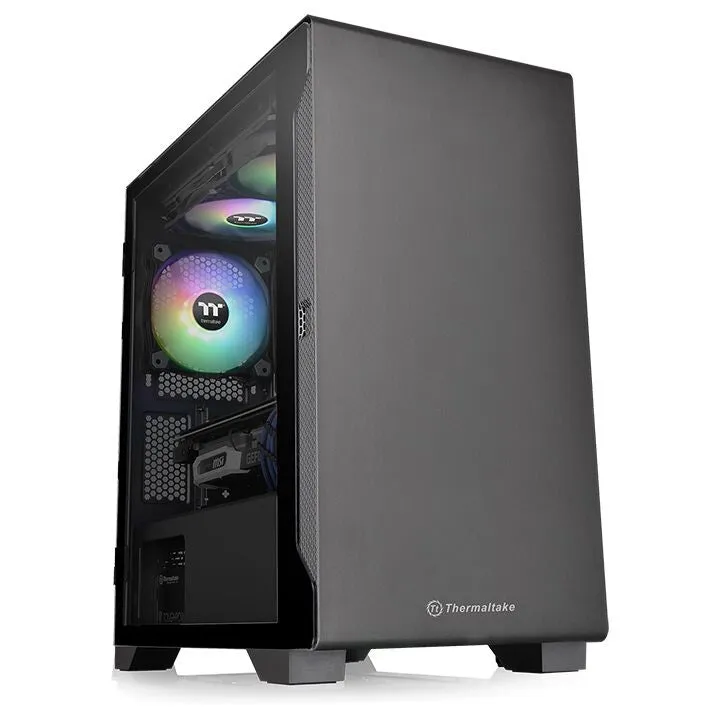

S100 TG Micro case comes with one tempered glass panel on the left, one preinstalled 120mm standard fan at the rear and supports motherboards up to Micro-ATX.
Thermaltake S100 Tempered Glass Edition Micro Chassis
The S100 Tempered Glass Edition Micro Chassis combines sophistication, elegance, and simplicity and is built with modern steel construction. Based on the key features of S Series chassis TG, the S100 TG is designed to be even more compact and is manufactured with one tempered glass window on the left for a stunning view and one preinstalled 120mm standard fan at the rear for fundamental ventilation. The flexibility is limitless for high-end components. The S100 TG Micro Chassis is a great fit for users who are looking for a budget friendly and stylish chassis.
Slim and Compact Design

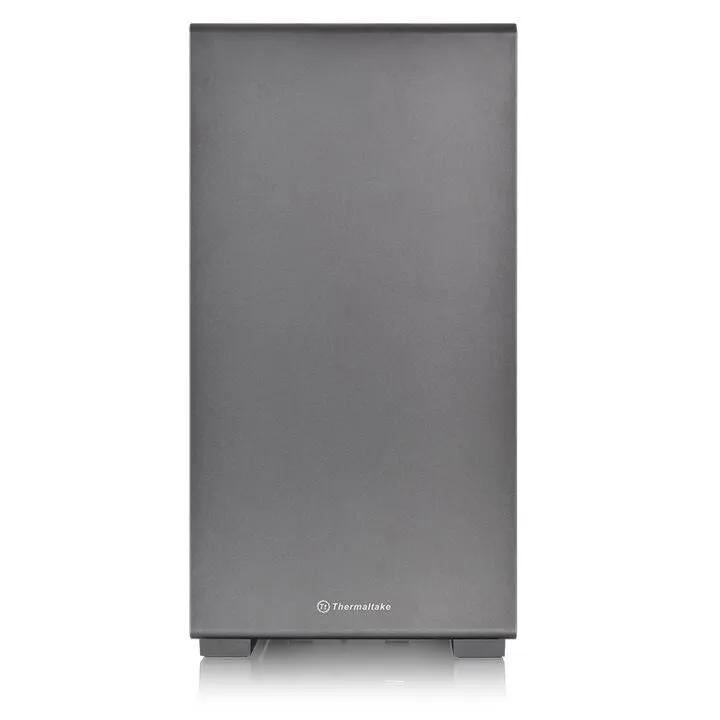

Full metal construction around the body with sleek front panel design, the S100 TG Micro Chassis demonstrates a slim and compact design style.
Built-in PSU Cover
The built-in ventilated PSU cover design can improve airflow and hide those unsightly cables.
Tempered Glass Window

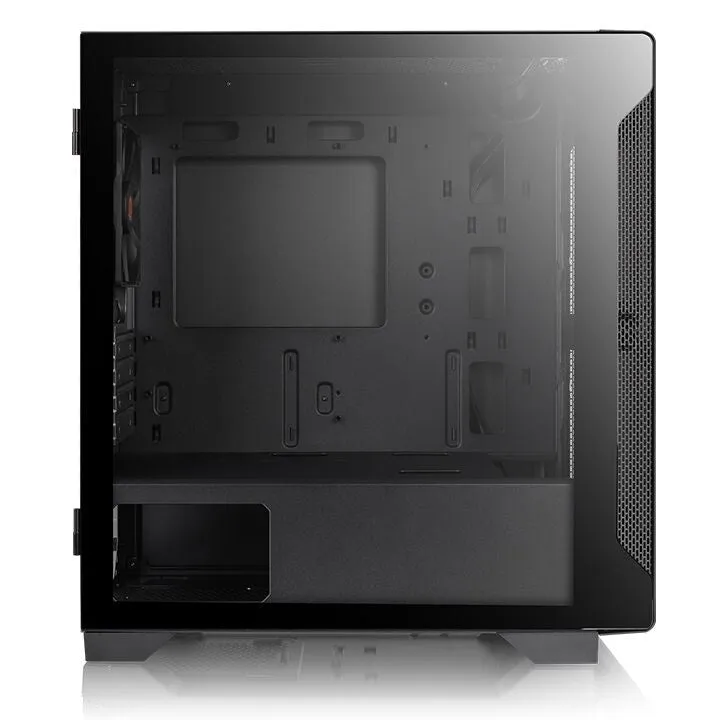

The 3mm tempered glass window on the side of the S100 TG is built to be more durable, scratch resistant, and transparent for an advanced view of your hardware.
Dust Reduction
A handy magnetic fan filter on the top simply attaches for easy dust filtration and particulate protection. At the base of the chassis, additional fan filters can provide excellent protection against both dirt and dust.
Hardware Expansion
S100 TG has excellent expandability. It can support a CPU cooler with a maximum height of 165mm, VGA up to 330mm long, and a full length power supply of up to 160mm. The case comes with a preinstalled 120 mm rear exhaust fan optimized for excellent cooling capabilities. S100 TG is able to house up to two 140mm or Three 120mm fans at the front and a radiator of up to 280mm at the front and on the top to allowing users to build their desired high-end system.
Handy I/O Ports
One 3.0 USB and two 2.0 USB ports on the top-front panel to grants direct access when needed.
| Design | |
|---|---|
| Maximum PSU length | 16 cm |
| Maximum graphics card length | 33 cm |
| Maximum CPU cooler height | 16.5 cm |
| On/off button | Yes |
| Reset button | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Side window | Yes |
| Number of expansion slots | 4 |
| Number of 2.5″ bays | 2 |
| Number of 3.5″ bays | 2 |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Product colour | Black |
| Material | SPCC |
| Type | PC |
| Form factor | Micro Tower |
| Power supply | |
|---|---|
| Supported power supply form factors | PS2 |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 120,140,240,280 mm |
| Rear radiator sizes supported | 120 mm |
| Front radiator sizes supported | 120,140,240,280 mm |
| Liquid cooling capability | Yes |
| Top fans diameters supported | 240,280 mm |
| Number of top fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 120 mm |
| Front fans diameters supported | 240,280 mm |
| Number of front fans supported (max) | 1 |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5″ |
| Weight & dimensions | |
|---|---|
| Material thickness | 4 mm |
| Weight | 6.1 kg |
| Height | 411 mm |
| Depth | 441 mm |
| Width | 220 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
