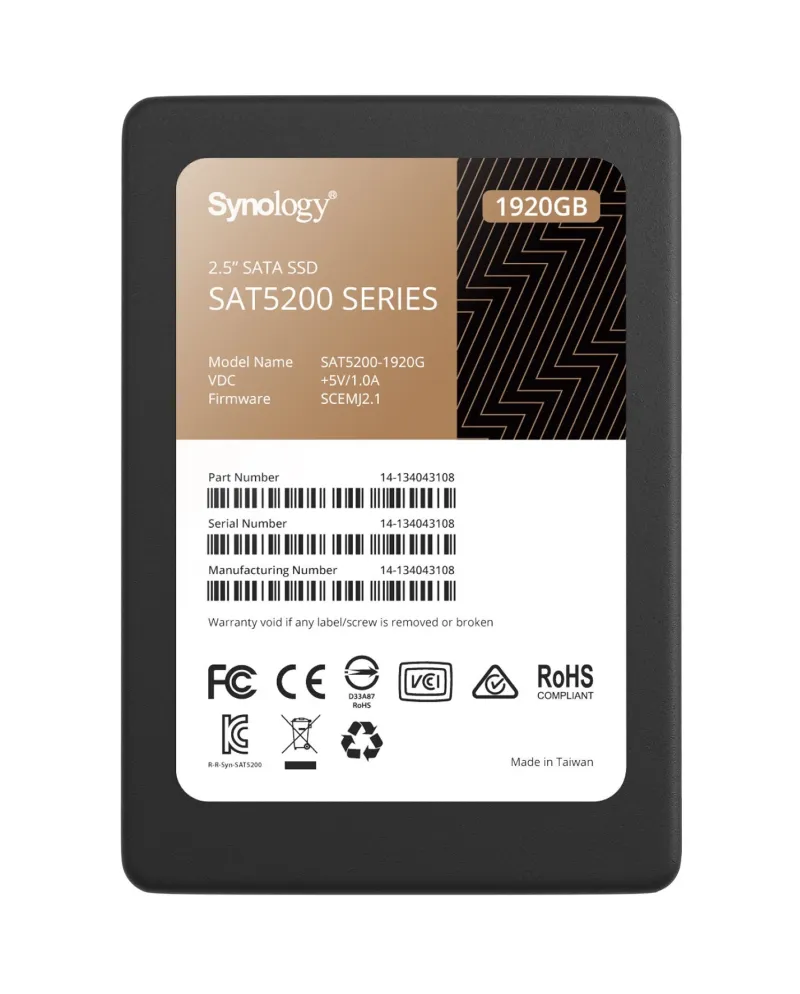

Synology SAT5200-1920G internal solid state drive 1.92 TB 2.5″ Serial ATA III
- 1.92 TB 2.5″ Serial ATA III
- Read speed: 530 MB/s 98000 IOPS
- Write speed: 500 MB/s 60000 IOPS
- Component for: NAS
Enterprise-grade SSD built for Synology systems
Synology SAT5200 SATA SSD offers stable I/O performance while reducing the latency of critical services and applications. It is built to handle mixed and intensive 24/7 workloads without compromising on endurance, providing a streamlined storage experience on Synology systems with minimal service disruptions.
Stable high performance for demanding environments
Engineered for demanding environments such as online transaction processing (OLTP) databases and virtualization deployments, Synology SAT5200 delivers stable high performance at up to 67,000 4K random write IOPS, allowing firms to modernize existing storage infrastructure effortlessly.
Enterprise-grade endurance and reliability
1.3 DWPD
Provides 1.3 DWPD within the 5-year warranty period to withstand 24/7 intensive workloads.
End-to-end data protection
Safeguards data integrity and consistency over the entire data transfer path.
Power loss protection circuit design
Dedicated capacitors provide sufficient power to flush data-in-flight into NAND flash during a power loss event, further preventing data corruption.
Lifetime analytics based on actual workload
Full integration with Synology’s DiskStation Manager (DSM) enables lifetime analytics for each SAT5200 unit based on actual workloads3:
Timely Notifications
Plan further ahead for uninterrupted system performance and longevity with timely notifications.
Optimal Use
Easy monitoring allows you to make optimal use of each SSD.
Purpose-built for Synology systems
Synology SAT5200 is thoroughly tested for compatibility with our systems following each engineering change, while firmware and component changes are strictly managed. Intensive I/O stress, power cycling, and temperature
| Features | |
|---|---|
| Certification | FCCCEBSMIVCCIRCMKC |
| TBW rating | 4581 |
| Mean time between failures (MTBF) | 1500000 h |
| Random write (4KB) | 60000 IOPS |
| Random read (4KB) | 98000 IOPS |
| Write speed | 500 MB/s |
| Read speed | 530 MB/s |
| Data transfer rate | 6 Gbit/s |
| Component for | NAS |
| NVMe | No |
| Interface | Serial ATA III |
| SSD form factor | 2.5″ |
| SSD capacity | 1.92 TB |
| Power | |
|---|---|
| Power consumption (idle) | 1.6 W |
| Power consumption (write) | 5.1 W |
| Power consumption (read) | 3.1 W |
| Operating voltage | 5 V |
| Weight & dimensions | |
|---|---|
| Height | 7 mm |
| Depth | 100 mm |
| Width | 69.8 mm |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 – 85 °C |
| Operating temperature (T-T) | 0 – 70 °C |
| Other features | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
