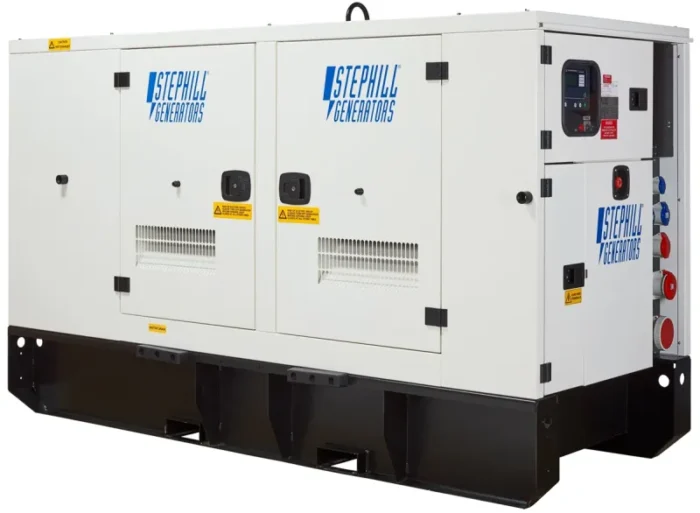

STEPHILL GENERATOR LOW NOICE SSDP115 115.0kVA / 92.0kW Turbo charged water cooled 4 cylinder Made in UK
|
ENGINE SPECIFICATION |
|
|
Engine |
Perkins 1104C-44TAG2 |
|
Emissions certified |
EU Stage ll |
|
Cylinders |
4 |
|
Aspiration |
Turbo charged |
|
Cooling |
Water cooled |
|
Displacement |
4.4 Litres |
|
Rpm |
1500 |
|
Gross Engine kWm |
117.5 |
|
Cooling fan air flow |
151.8m³/min |
|
Exhaust gas flow |
16.54m³/min |
|
GENERATOR SPECIFICATION |
||
|
Voltage |
400/230 |
|
|
Phase |
3 |
|
|
Frequency |
50Hz |
|
|
Standby Power (ESP) |
115.0 kVA / 92.0 kW |
|
|
Prime Power (PRP) |
103.7 kVA / 82.9 kW |
|
|
Alternator |
105kVA Meccalte ECP 34-2S/4 |
|
|
AVR |
DER 3Ø Electronic +/- 1% |
|
|
Fuel tank capacity |
470 Litres |
|
|
Autonomy 100% load |
19 Hours |
24.5 Litres per hour |
|
Autonomy 75% load |
24 Hours |
19.8 Litres per hour |
|
Autonomy 50% load |
35 Hours |
13.2 Litres per hour |
|
LWA |
94 |
|
|
dBA @ 7M |
69 |
|
|
dBA @ 4M |
74 |
|
|
DI |
MENSIONS (mm) & WEIGHT (KG) |
|
||
|
Status |
Length |
Width |
Height |
Weight |
|
Skid dry |
|
|
|
1900 |
|
Skid wet |
2710 |
1100 |
1650 |
2290 |
POWER DEFINITION
|
Standby Power : An approximate overload of 10% is allowed for 1 hour in 12. This is typically used for regulation purposes and small unexpected loading. |
Prime Power (PRP) : Applicable for supplying power to varying electrical load for unlimited hours in accordance ISO 8528-1 under the agreed operating conditions with the maintenance intervals and procedures being carried out as prescribed by the manufacturers. |
|
||
|
|
CONTROL PANEL |
STANDARD FEATURES |
||
|
|
• DSE 6110 control module. – see below for details |
• Low fuel level shutdowns. |
||
|
|
• Hinged control panel for easy access. |
• Zintec weatherproof enclosure. |
||
|
|
• MCCB/MCB overload protection. |
• Lifting eye. |
||
|
|
• Variable RCD protection (30mA – 30A). • RCD bypass switch. • 1 x 400V 125A, 1 x 400V 32A & 1 x 400V 63A BS4343 sockets. • 2 x 230V 32A & 1 x 230v 16A BS4343 sockets. • RCBO protection on all 230V sockets. • Hard wire terminals. • Remote start connections. • Emergency stop. |
• 6-Way diverter valve complete with remote fuel tank quick release (1/2″ BSP) fittings. • Heavy duty 5mm base with fork lift pockets. • Fork lift hard rubber bumpers. • Oil sump pump. • Battery isolator & emergency stop button for safety. • Radiator water drain facility. • Bunded fuel tank. |
||
|
|
DEEP SEA ELECTRONICS 6110 START/STOP CONTROL MODULE |
|||
• The module will display warnings, shutdown & engine status information on the back-lit LCD screen.
• Monitoring engine speed, oil pressure, coolant temperature, coolant level & fuel level.
• Volts, HZ, Amps, kW & kVA monitoring & protection.
• Service hours counter with maintenance warning.
• Battery voltage monitoring.
• 2-wire remote start function.
• Remote communication (telemetry) compatible.
|
|
OPTIONS |
|
• ATS Panel (Automatic Transfer Switch). |
• Power-lock (Litton) connectors. |
|
• Remote communication (telemetry) available. |
• Mains battery charger. |
|
• Engine coolant heater. |
• Auto start/stop programmable 7-day timer. |
|
• Customised socket arrangement on request. |
• Chalwyn valve/Spark arrestor. |
|
STANDBY GENERATOR DEFINITION |
|
This generator is designed for permanently fixed, standby applications only in accordance with Regulation 2016/1628. Article 3 describes stationary machinery as: “machinery that is intended to be permanently installed in one location for its first use and is not intended to be moved, by road or otherwise, except during shipment from the place of manufacture to the place of first installation”. Where permanently installed means: “bolted,
