StarTech.com USB 3.0 to VGA Adapter, USB to VGA Monitor Converter for Windows, Slim (no support for macOS/ChromeOS/Linux) – TAA
- COMPATIBILITY: This adapter is only compatible with Windows and does not support macOS, ChromeOS or Linux; Works with all Windows X86/X64/ARM platforms: Intel, AMD, and Snapdragon X Copilot+ PC; Administrator rights are required to install the drivers
- EXTERNAL VIDEO ADAPTER: USB to VGA adapter lets you lets you connect your laptop or desktop computer to an VGA monitor using a single USB Type-A port; TAA Compliant
- 1920×1200 DISPLAY: With display resolution up to 1920×1200, you don’t have to worry about sacrificing quality when you use this USB 3.0 External Video & Graphics Card
- USB POWERED: Drawing power from the USB port of your Windows laptop, this USB display adapter doesn’t require any additional cords or plugs
- SCALABLE SOLUTION: With the ability to connect up to five adapters to one source, the external graphics adapter offers flexible setup options for future expansion
USB 3.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Windows®

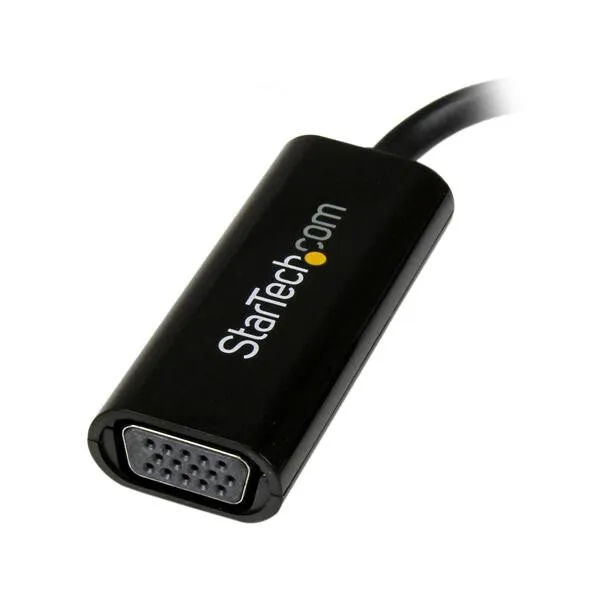

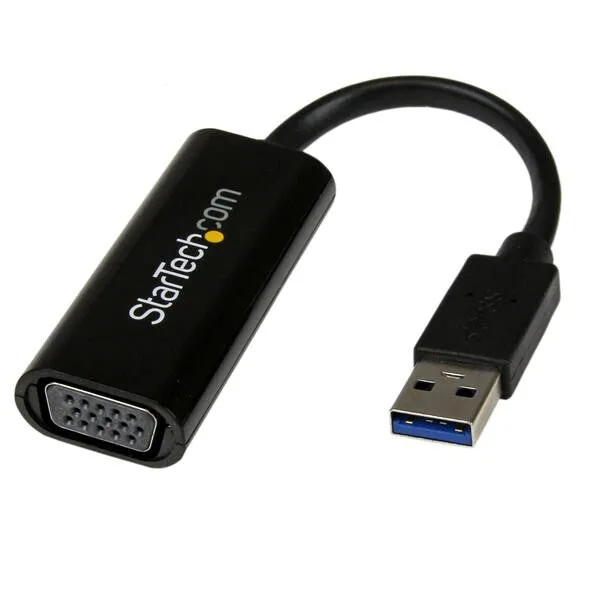

The USB32VGAES Slim USB 3.0 to VGA Adapter turns a USB 3.0 port into a VGA output port with 1920×1200/1080p video support. The adapter minimizes clutter with a slim design that seamlessly blends with your video cable – an ideal space-saving solution for multi-monitor applications on Ultrabook™; laptop, or desktop computers.
Functioning as an external graphics card, this USB to VGA adapter provides a convenient way to add multi-monitor capability to a USB 3.0-enabled desktop or laptop computer (optimal performance from USB 3.0, backward compatible with USB 2.0).
To save space while travelling, this ultra-portable USB to VGA adapter features a lightweight, small footprint design that fits easily in a laptop carrying bag.
Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the adapter delivers smooth, high-definition content to your VGA display/projector. The adapter can be used to mirror your primary desktop, showing the same image on each display, or to extend your desktop to double your workspace and increase your productivity.
The USB32VGAES is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Recommended System Requirements:
CPU: Quad Core 2.4GHz or Higher (i5 recommended)
RAM: 4GB or higher
USB 3.0 port (Backwards compatible with USB 2.0)
The StarTech.com Advantage
| Performance | |
|---|---|
| Certification | CE, FCC, TAA, REACH |
| Chipset | Trigger – T5-302 |
| USB pass-through | No |
| Supported graphics resolutions | 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800, 1280 x 960, 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Maximum resolution | 1920 x 1200 pixels |
| Internal memory | 16 MB |
| VGA (D-Sub) output | Yes |
| Number of displays supported | 1 |
| DisplayPort output | No |
| HDMI output | No |
| DVI output | No |
| USB connector gender | Male |

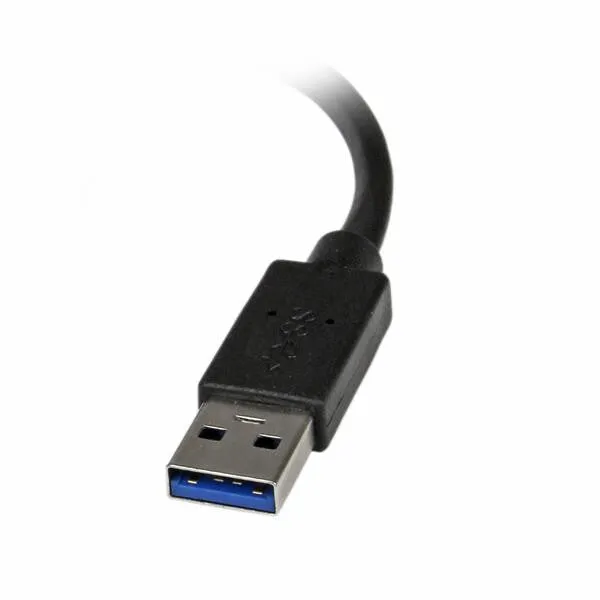

| USB connector type | USB Type-A |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Design | |
|---|---|
| Integrated USB cable | Yes |
| Product colour | Black |
| System requirements | |
|---|---|
| Minimum RAM | 4 GB |
| Minimum processor speed | 2.4 GHz |
| Minimum processor family | Core i5 |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Weight & dimensions | |
|---|---|
| USB cable length | 0.062 m |
| Weight | 25 g |
| Height | 12 mm |
| Depth | 190 mm |
| Width | 25 mm |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 – 85% |
| Storage temperature (T-T) | -10 – 75 °C |
| Operating temperature (T-T) | 0 – 50 °C |
| Packaging data | |
|---|---|
| Package weight | 148 g |
| Package height | 32 mm |
| Package depth | 151 mm |
| Package width | 171 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Software CD | Yes |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
