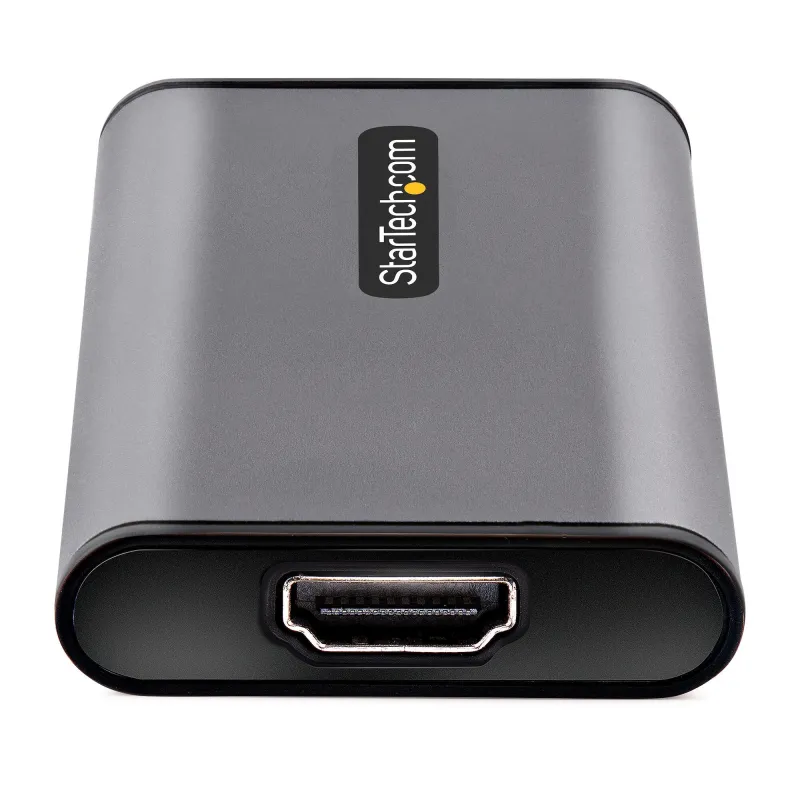

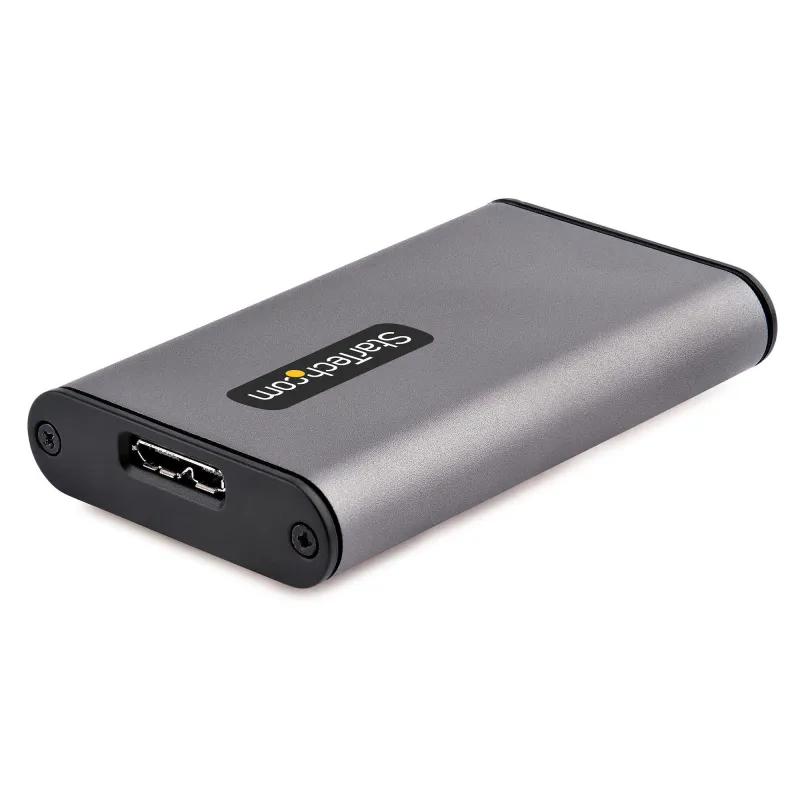

StarTech.com USB 3.0 HDMI Video Capture Device, 4K 30Hz Video Capture Adapter/External USB Capture Card, UVC, Live Stream, Screen Recorder, Works w/ USB-A, USB-C, TB3 – Windows/Mac/Ubuntu
- PERFORMANCE: The HDMI Video Capture Device records up to 4K 30Hz HDMI / Captures up to 2160p 30fps, 1440p 60fps, or 1080p 120fps / 2ch 16 bit PCM audio support / 32KHz/44.1KHz/48KHz sampling rate / HDCP 1.4 compliant, does not capture protected content
- USB VIDEO CLASS: UVC ensures driverless, automatic install in Windows, macOS, and Ubuntu / The External USB Capture Card is compatible with DirectShow/QuickTime applications (OBS, Xsplit and VLC) / H.264/H.265 software encoding (MPEG4/MJPEG/YUY2)
- APPLICATIONS: Record conference calls, presentations, security feeds or training videos using 3rd party software / Live stream for education, corporate presentations, or houses of worship on platforms with RTSP/RTMP / Capture video camera, DSLR or webcams
- PORTABLE & BUS POWERED: Durable, compact, and lightweight aluminum video capture adapter / Ideal for media rooms, classrooms or recording studios/ Connects directly to a laptop or desktop / 16inch (40cm) USB 3.2 Gen 1 USB-A and USB-C cables included
- COMPATIBILITY: This screen recorder works with Windows (7 & up), macOS (10.14 & up) and Ubuntu (20.04 & up) / Works w/ Thunderbolt 3 / Works with video editing and collaboration software such as Teams, Google Hangouts, Zoom, Adobe Connect, and GoToMeeting
4K 30Hz HDMI Recorder | USB 3.2 Gen 1 (5Gbps) | UVC | USB-A/USB-C Cables Included
This USB to HDMI video capture device enables HDMI A/V recording, at up to 4K 30Hz, to a USB-C or USB-A enabled computer.
Record 4K Video
The USB 3.2 Gen 1 (5Gbps) Capture Device enables recording of HDMI audio and video. Capture at up to 2160p 30fps, 1440p 60fps or 1080p 120fps with 16-bit PCM audio using third party software that supports DirectShow or QuickTime. Ideal for capturing the HDMI output of DSLR cameras, action cameras, webcams, and more.
USB Video Class

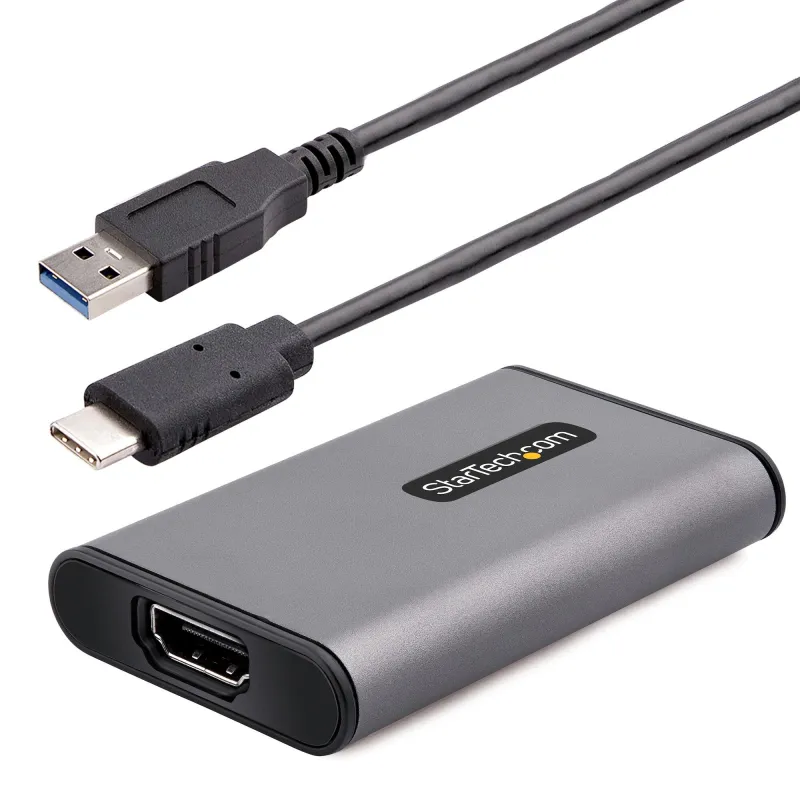

The capture device features USB Video Class (UVC), a video capture standard that’s natively supported by Mac, Windows, and Ubuntu. USB bus-power and UVC facilitate plug and play installation. The included USB-A and USB-C cables let you connect to almost any host device running a supported operating system.
Capture or Stream
Record conference calls, presentations, security feeds, training videos, and more using third party software. Live stream content for community events, remote troubleshooting, or educational purposes on platforms supporting RTSP or RTMP communication protocols. The Capture Device works with Teams, Google Hangouts, Zoom, Adobe Connect, GoToMeeting, and more.
4K30-HDMI-CAPTURE is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance.
Note: This device is HDCP compliant, and will not capture copy protected video, such as Blu-rays or the video output of Mac computers. However, this device will capture video to Mac computers and will capture non-encrypted video.
The StarTech.com Advantage
| Performance | |
|---|---|
| Housing material | Aluminium |
| Cable length | 0.4 m |
| Capturing from | Digital camera, PC |
| Chipset | ITE IT66021 / ITE IT9323 |
| Video capture resolution (max) | 3840 x 2160 pixels |
| Host interface | HDMI |
| Internal | No |
| Product colour | Black, Grey |
| Video | |
|---|---|
| Supported video modes | 1080p, 1440p, 2160p |
| HDCP | Yes |
| HDCP version | 1.4 |
| Maximum frame rate | 60 fps |
| Audio | |
|---|---|
| Supported audio channels | 2 |
| File formats | |
|---|---|
| Audio formats supported | PCM |
| Ports & interfaces | |
|---|---|
| HDMI in | 1 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | Micro-USB B |
| USB port | Yes |
| Power | |
|---|---|
| Power consumption | 1.5 W |
| Input current | 0.3 A |
| Input voltage | 5 V |
| AC input voltage | 5 V |
| Power supply type | USB |
| Software | |
|---|---|
| Linux operating systems supported | Ubuntu 20.04 LTS |
| Mac operating systems supported | Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 – 90% |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating temperature (T-T) | 0 – 45 °C |
| Technical details | |
|---|---|
| Compliance certificates | CE, RoHS |
| Other features | |
|---|---|
| Master (outer) case width | 490 mm |
| Master (outer) case height | 260 mm |
| Weight & dimensions | |
|---|---|
| Weight | 41 g |
| Height | 12 mm |
| Depth | 73 mm |
| Width | 44 mm |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Cables included | USB Type-A to Micro USB-B, USB Type-C to Micro-USB Type-B |
| Packaging data | |
|---|---|
| Package height | 37 mm |
| Package width | 107 mm |
| Package depth | 155 mm |
| Package weight | 181 g |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case length | 390 mm |
