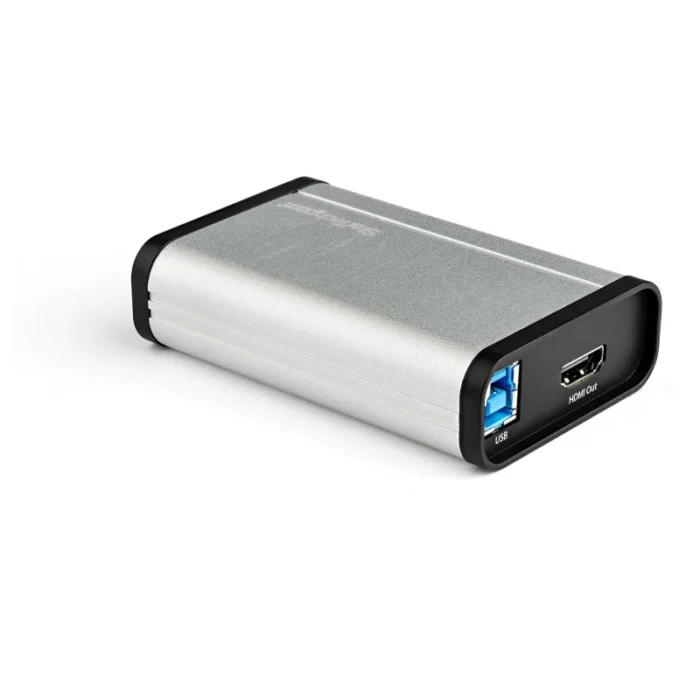

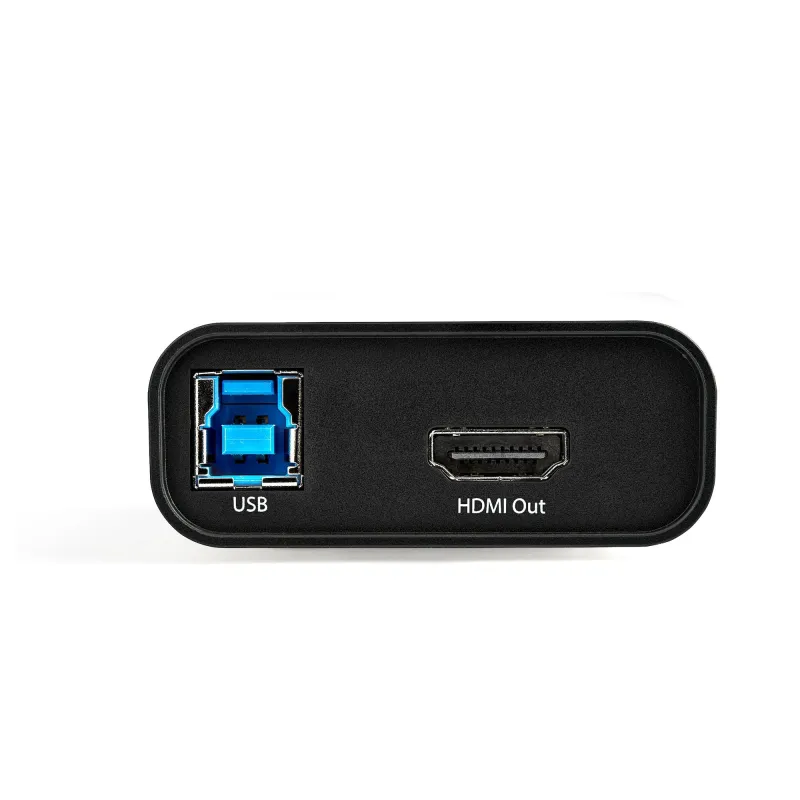

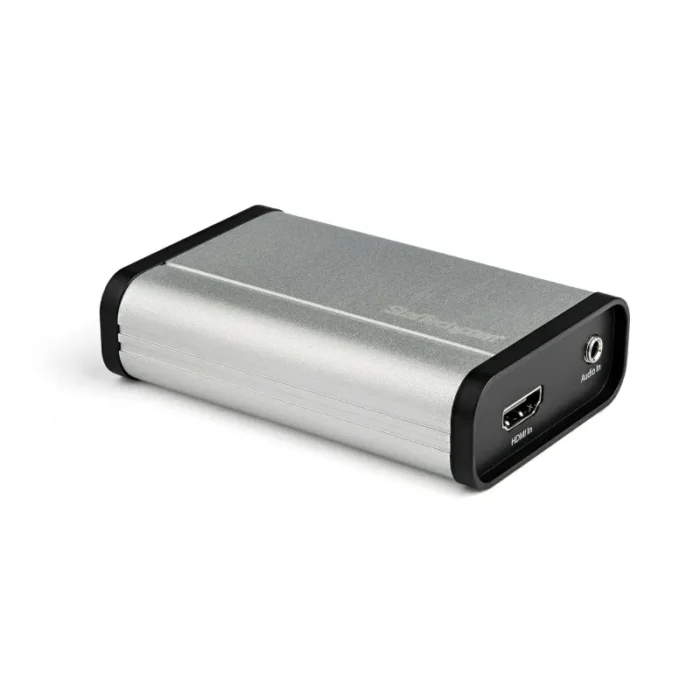

StarTech.com HDMI to USB C Video Capture Device 1080p 60fps – UVC – External USB 3.0 Type-C Capture/Live Streaming – HDMI Audio/Video Recorder Adapter – Works with USB-C/USB-A/Thunderbolt 3 – TAA
- HD VIDEO CAPTURE: Bus-powered USB 3.0 capture device records HDMI video to USB-C, TB3, TB4 or USB-A computer with low-latency; 1080p 60fps, 3.5mm 2ch audio, HDMI pass-through, H.264 software encoding (MJPEG/MPEG-2/MPEG-4)
- USB VIDEO CLASS: UVC ensures an easy driverless setup, automatic install in Windows (8 & up), Mac (10.11 & up) & Linux (4.x LTS); Capture device is compatible with DirectShow & QuickTime applications
- APPLICATIONS: Experience HDMI playback while recording conference calls, camera feeds or live streaming at 1080p60 with Streamcatcher or 3rd party software (OBS); Live streaming on YouTube/platforms w/ RTSP, RTMP; Works with Teams & Zoom
- PORTABLE & DURABLE: Compact & lightweight aluminum screen recorder adapter is easy to carry from a media room, classroom or recording studio, so you can connect the device directly to a laptop/desktop
- COMPATIBILITY: External video capture card with included Stream Catcher software works with Windows; HDCP compliant, will not capture protected-content source video like Blu-rays or video output from a Mac
HDMI® Recorder| USB 3.0 | USB Video Class | USB-A Cable Included
This HDMI® to USB-C™ video capture device lets you record HDMI video to your USB-C, USB-A or Thunderbolt™ 3 computer.
Easy Setup, Easy Capture
For hassle-free recording, you can install the HDMI capture device by simply connecting it to your computer. The capture device features USB Video Class (UVC), a video capture standard that’s natively supported by Mac, Windows® and Linux®. Unlike other capture devices that require proprietary driver installation, UVC based capture devices install automatically for a truly plug-and-play solution. Also, with this recorder you’re not limited to the included software; you can use any third-party software that uses UVC compatible frameworks such as Quicktime or DirectShow®.
Capture HD Video
Record 1080p video at 60fps (frames per second) from your Windows PC, gaming console, camera (and more) so you can save, share or edit your content. Capture meetings, presentations, conference calls and security footage directly to your computer.
Stream Your 1080p Content
Stream video over the web using Twitch™ or other third-party streaming platforms. With the included software or third-party UVC compatible software like Open Broadcaster Software (OBS), you can live broadcast video over the internet using third-party video streaming platforms.
Note: This device is HDCP compliant, and will not capture copy protected video, such as Blu-rays or the video output of Mac computers. However, this device will capture video to Mac computers and will capture non-encrypted video.
The StarTech.com Advantage
| Performance | |
|---|---|
| Chipset | Mstar MST3363CNK-170 |
| Video capture resolution (max) | 1920 x 1080 pixels |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Internal | No |
| Product colour | Black, Silver |
| Video | |
|---|---|
| Supported video modes | 1080p |
| Maximum frame rate | 60 fps |
| Supported resolutions | 1920 x 1080, 1280 x 720, 1024 x 768, 800 x 600 |
| Audio | |
|---|---|
| Audio support | Yes |
| Supported audio channels | 2 |
| Ports & interfaces | |
|---|---|
| Audio (L/R) in | 1 |
| Number of HDMI outputs | 1 |
| HDMI in | 1 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-B |
| USB port | Yes |
| Power | |
|---|---|
| Power supply type | USB |
| Software | |
|---|---|
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -5 – 40 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Technical details | |
|---|---|
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 86 g |
| Height | 23 mm |
| Depth | 92 mm |
| Width | 60 mm |
| Other features | |
|---|---|
| Master (outer) case width | 470 mm |
| Master (outer) case height | 470 mm |
| Packaging data | |
|---|---|
| Package height | 215 mm |
| Package width | 470 mm |
| Package depth | 215 mm |
| Package weight | 470 g |
| Packaging content | |
|---|---|
| User guide | Yes |
| Cables included | HDMI, USB |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Products per master (outer) case | 48 pc(s) |
| Master (outer) case length | 470 mm |
