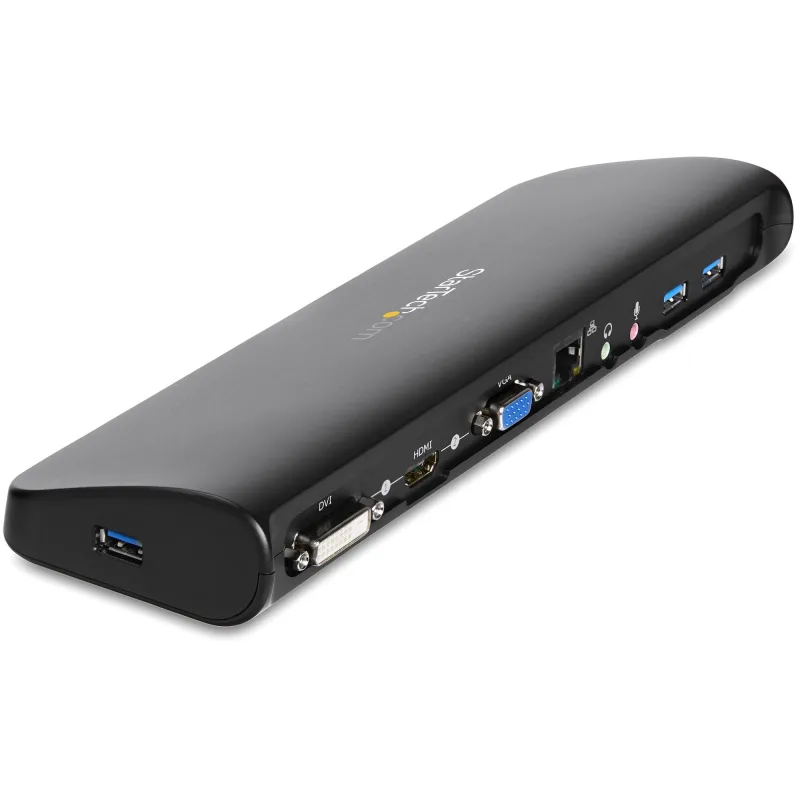

StarTech.com Dual-Monitor USB 3.0 Docking Station with HDMI & DVI/VGA~Dual Monitor USB 3.0 Laptop Docking Station with HDMI/DVI/VGA, 3x USB-A Hub, GbE, Audio, Universal Type-A Dock for Windows/macOS/ChromeOS – TAA Compliant
- UNIVERSAL DUAL MONITOR DOCKING STATION: USB 3.0 docking station features HDMI, VGA, and DVI outputs for broad display compatibility; Supports up to 1920×1080 (HDMI), 1920×1200 (DVI-D), and 2048×1152 (VGA); This dual monitor dock is TAA compliant
- INCREASED PRODUCTIVITY: This dual monitor docking station combines 3x USB 3.2 Gen 1 (5Gbps) ports, headphone & mic audio jack, and a Gigabit Ethernet RJ45 port into a single IT-grade dock; Connect directly to older VGA and DVI monitors without adapters
- VERSATILE DESIGN: The high performance dock features a sleek design that is the ideal addition to any home or office workstation; This dock enhances your laptop’s capabilities while taking up little desk space; Includes 3ft (0.9m) USB 3.2 Gen 1 host cable
- UNIVERSAL COMPATIBILITY: Compatible with Windows, macOS, & ChromeOS, enabling extended dual displays on laptops, Chromebooks and MacBooks that feature a USB-A host connection such as X1 Carbon, ThinkPad, Latitude, Precision, XPS 15, Spectre, and ZBook
- CONNECTIVITY TOOLS: Optimize the performance and security of this docking station, using the included MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities (available for download)
Maximize your productivity with this Dual Monitor USB-A Docking Station featuring Gigabit Ethernet, USB Hub, and Audio
This USB 3.0 dock combines three USB 3.0 ports, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port, into a single docking station for maximum productivity.
Display Adaptability
Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI, DVI and VGA external monitor outputs. Each video output supports HD video resolutions (2048×1152 max) and HD video playback for an ideal solution to expanding your notebook’s video capability.
Available display combinations:
• HDMI + VGA
• HDMI + DVI
Integrated USB Hub
The built-in USB hub features three USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse, as if they are connected directly to your laptop.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a wired network.
StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime Technical Support.
The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| DVI-D ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Performance | |
|---|---|
| Certification | FCC, CE, TAA, REACH |
| Housing material | Plastic |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Maximum analog resolution | 2048 x 1152 pixels |
| Maximum digital resolution | 1920 x 1200 pixels |
| Data transfer rate | 5 Gbit/s |
| Card reader integrated | No |
| Product colour | Black |
| Power | |
|---|---|
| Compatible power plug types | AU, EU, UK, US |
| Power plug type | Type B |
| Power consumption (typical) | 20 W |
| Output voltage | 5 V |
| Output current | 4 A |
| Input current | 0.9 A |
| AC input voltage | 100-240 V |
| Software | |
|---|---|
| Other operating systems supported | ChromeOS |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 – 90% |
| Storage temperature (T-T) | -10 – 60 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 295 g |
| Height | 44 mm |
| Depth | 304 mm |
| Width | 178 mm |
| Packaging data | |
|---|---|
| Package weight | 878 g |
| Package height | 66 mm |
| Package depth | 296 mm |
| Package width | 195 mm |
| Packaging content | |
|---|---|
| Cables included | USB |
| AC adapter included | Yes |
| Drivers included | Yes |
| Manual | Yes |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 215 mm |
| Master (outer) case length | 435 mm |
| Master (outer) case height | 345 mm |
| Harmonized System (HS) code | 84733020 |
| Other features | |
|---|---|
| Chipset | DisplayLink – DL-3900, Genesys Logic – GL3520, Realtek – RTL8211E |
| USB data transfer rates | 12,480,5000 Mbit/s |
