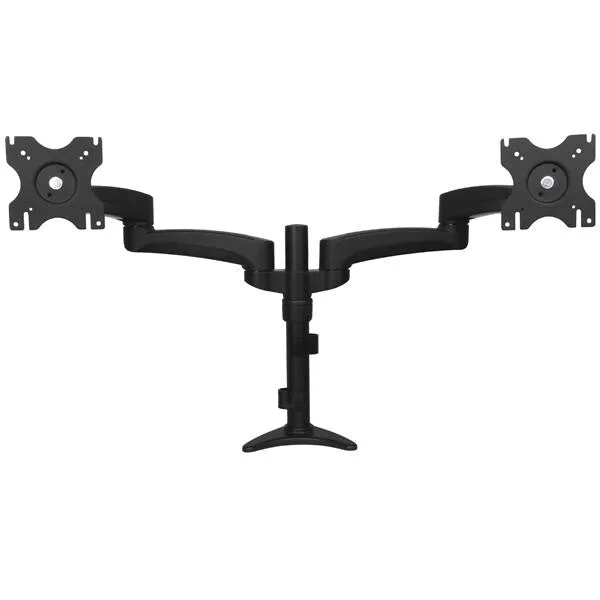

StarTech.com Desk-Mount Dual Monitor Arm – Articulating
- Mount two 12” to 24” displays (max weight of 30.0 lb./13.6 kg per display)
- Dual articulating arms provide a wide range of motion
- 360° rotation around the support pole and at the elbow, 180° rotation at the shoulder
- Landscape to portrait screen rotation, plus +/-90 degrees tilt and +/-90 degrees pan
- Maximum arm extension of 17.5” (445 mm)
Monitor Mount | Desk/Grommet Mount | Height Adjustable | For 12” to 24” Monitors

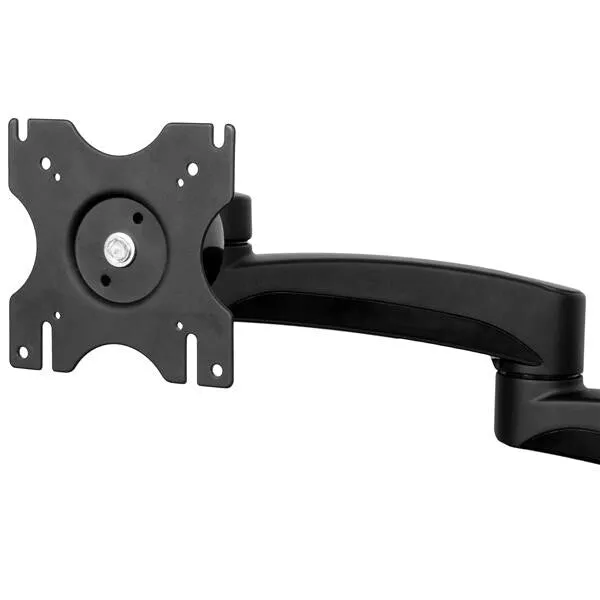

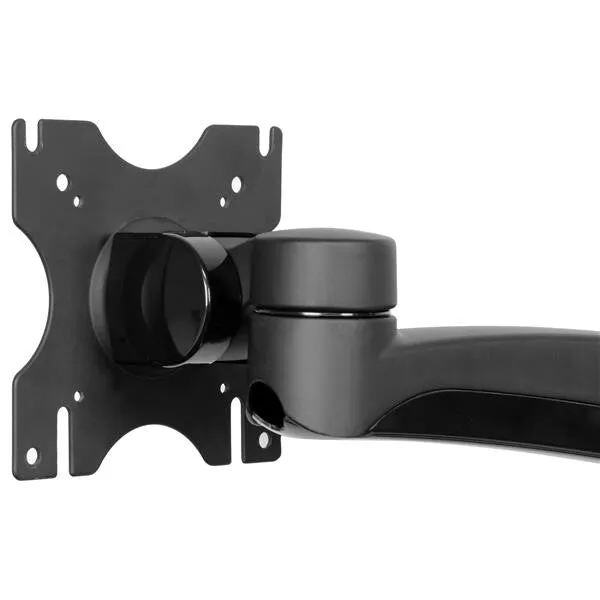

Enhance productivity while freeing up space. This desk mount dual monitor arm lets you mount two VESA (75×75, 100×100) displays to your desk or table, with extension, tilt, pan, swivel, pivot and height adjustments.
Wide Range of Motion for Optimum Viewing
The dual articulating monitor arms offer a wide range of motion on several axes, giving you the freedom to place your displays side-by-side and adjust the viewing angle. Tilt your monitors +/-90 degrees and pan +/-90 degrees for ideal viewing. For viewing longer pages or blocks of code without scrolling, the dual monitor arm also supports landscape to portrait display rotation for either monitor.
Create a More Ergonomic Workspace
Mounting your displays on a dual monitor arm above the desk surface enables you to adjust your display height, position and viewing angles easily for an ergonomic work environment. Work in comfort, and reclaim valuable workspace on your desk or table.
The dual monitor mount supports two VESA mount (75×75, 100×100) displays up to 24”, with a maximum weight capacity of 30lbs (13.6kg) per arm. The computer monitor mount holds your displays with ease, and integrates a cable management channel to keep things neat.
Flexible Mounting Options
For added installation flexibility, the included mounting hardware can either clamp to the side of your desk / table or mount through a grommet hole, for a versatile dual-monitor mounting solution.
ARMDUAL is backed by a StarTech.com 5-year warranty and free, lifetime technical support.
The StarTech.com Advantage
– Mount two 12” to 24” displays (max weight of 30.0 lb./13.6 kg per display)
– Dual articulating arms provide a wide range of motion
– 360° rotation around the support pole and at the elbow, 180° rotation at the shoulder
| Mounting | |
|---|---|
| Desk thickness (max) | 7.5 cm |
| Desk thickness (min) | 1 cm |
| Number of displays supported | 2 |
| Maximum VESA mount | 100 x 100 mm |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp |
| Mounting type | Desk |
| Maximum screen size | 61 cm (24″) |
| Minimum screen size | 30.5 cm (12″) |
| Maximum weight capacity | 13.6 kg |
| Ergonomics | |
|---|---|
| Cable management | Yes |
| Pan range | -90 – 90° |
| Angle of rotation | 360° |
| Swivel angle | 360° |
| Tilt angle range | -90 – 90° |
| Height adjustment | Yes |
| Design | |
|---|---|
| Housing material | Plastic, Steel |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Weight | 4 kg |
| Height | 327 mm |
| Depth | 75 mm |
| Width | 834 mm |
| Packaging data | |
|---|---|
| Package weight | 4.89 kg |
| Package height | 160 mm |
| Package depth | 580 mm |
| Package width | 325 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Number of spacers included | 8 |
| Number of washers included | 2 |
| Number of screws | 18 |
| Screws included | Yes |
| Number of cable clips | 2 |
| Clamp included | Yes |
| Wrench included | Yes |
| Other features | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85299097 |
