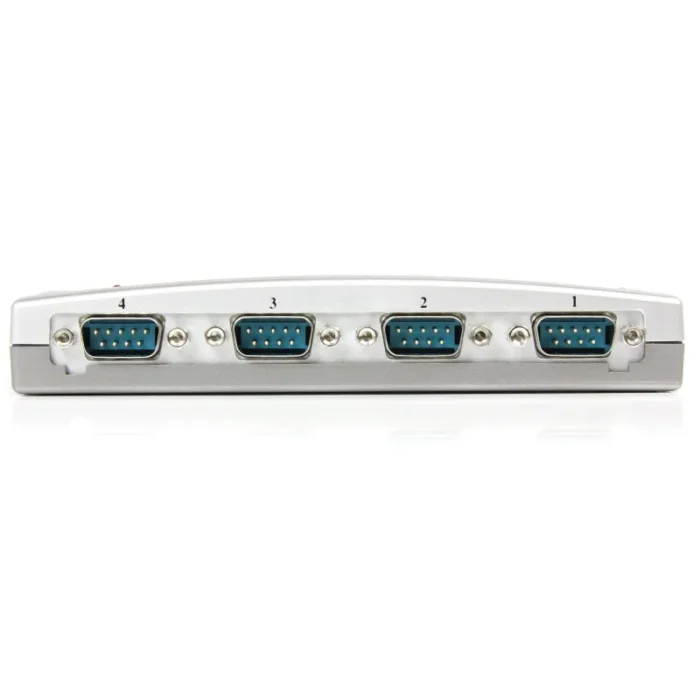

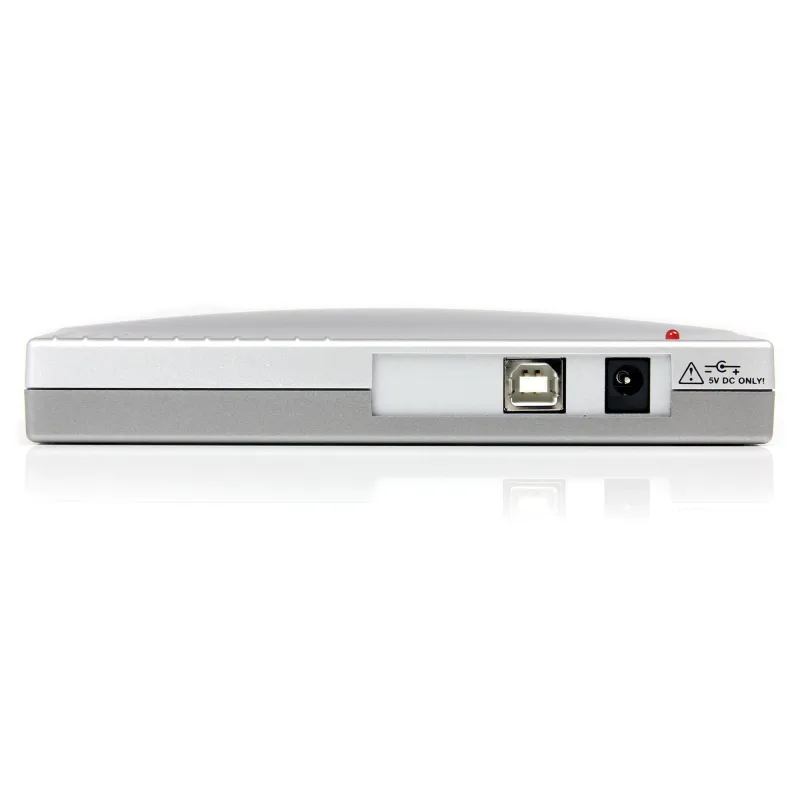

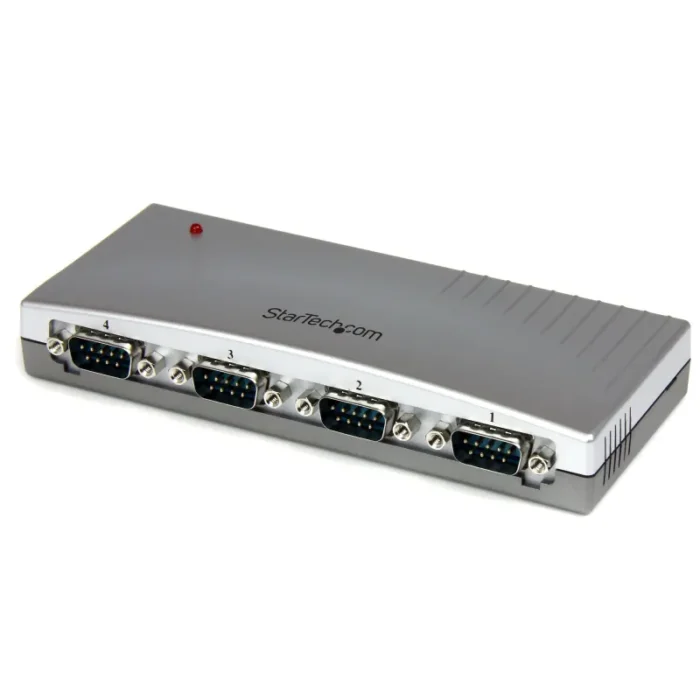

StarTech.com 4 Port USB to RS232 Serial Adapter Hub
- Host interface: USB
- Hub interfaces: Serial
- Ports quantity: 4
- Silver Plastic
Add four RS232 serial ports to any notebook or desktop computer using a single USB port
This 4 Port USB to RS232 Serial Hub lets you connect up to four RS232 serial devices to your Mac or PC laptop or desktop computer through a single USB port, as though the computer offered built-on DB9M serial connectors.
The RS232 Serial Hub is compactly designed to preserve valuable workspace, and is bus-powered to eliminate the need for an external power adapter.
A cost-effective solution that bridges the compatibility gap between modern USB-capable computers and legacy RS232 serial peripherals, this dependable USB/RS232 Serial Adapter hub is backed by StarTech.com’s Lifetime Warranty.
The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| RS-232 ports | 4 |
| Hub interfaces | Serial |
| Host interface | USB |
| Ports quantity | 4 |
| Features | |
|---|---|
| Certification | CE, FCC, RoHS |
| Plug and Play | Yes |
| Product colour | Silver |
| Housing material | Plastic |
| Power | |
|---|---|
| Power consumption (typical) | 1 W |
| Power consumption (max) | 1.5 W |
| System requirements | |
|---|---|
| Other operating systems supported | Windows XP Embedded |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Weight & dimensions | |
|---|---|
| Weight | 110 g |
| Height | 26 mm |
| Depth | 150 mm |
| Width | 66.5 mm |
| Packaging data | |
|---|---|
| Package weight | 378 g |
| Package height | 53 mm |
| Package depth | 220 mm |
| Package width | 150 mm |
| Packaging content | |
|---|---|
| Cables included | USB |
| Manual | Yes |
| Drivers included | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -20 – 85 °C |
| Operating temperature (T-T) | 0 – 55 °C |
| Performance | |
|---|---|
| Baud rate | 921.6 Kbit/s |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84719000 |
| Other features | |
|---|---|
| Chipset | FTDI – FT232RL |
