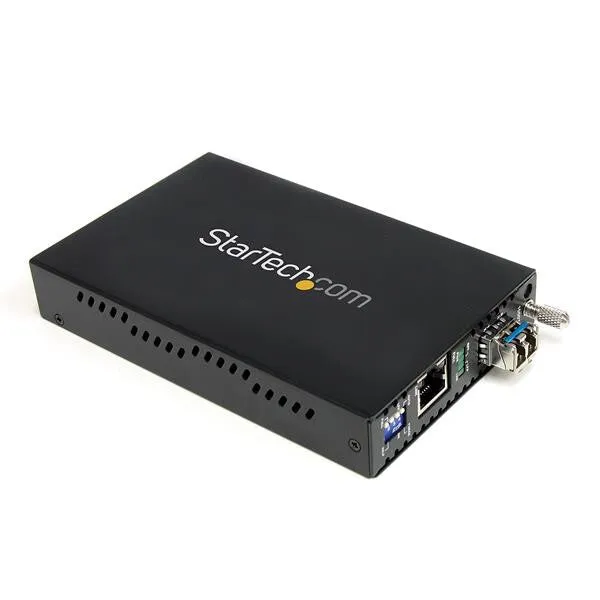

StarTech.com 1000 Mbps Gigabit Single Mode Fiber Media Converter LC 40 km
- 2000 Mbit/s 40000 m 1310 nm

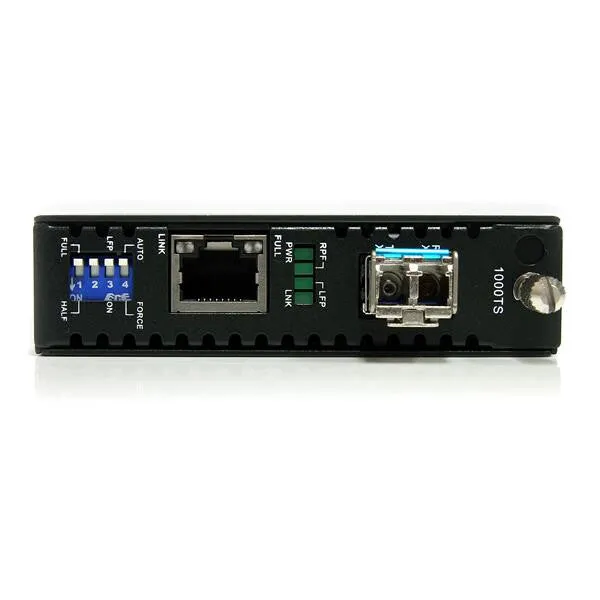

- Ethernet LAN (RJ-45) ports: 1 DC-in jack
- Single-mode Fiber ports quantity: 1 LC
- Black
Convert and extend a Gigabit Ethernet connection up to 24.8 miles/40km over Single Mode LC fiber
The ET1000S40LC2 1000 Mbps Gigabit Single-Mode Fiber Media Converter (LC, 40 km) enables you to extend a Gigabit Ethernet network over single-mode fiber, at distances up to 40km (25 miles).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the GbE to SM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to LC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
– Link loss forwarding, remote monitoring of status ensures maximum up-time
– Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
– Rugged steel casing for added durability in harsh environments
– Cost-effective way to extend/bridge networks using fiber cabling
| Network |
| Duplex system |
Full, Half |
| Auto MDI/MDI-X |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Converter output interface |
1000Base-LX, 1000Base-SX |
| Converter input interface |
1000Base-T |
| Maximum data transfer rate |
2000 Mbit/s |
| Performance |
| Mean time between failures (MTBF) |
65000 h |
| Fiber mode structure |
Single-mode |
| Wavelength |
1310 nm |
| Maximum transfer distance |
40000 m |
| Features |
| Product colour |
Black |
| Plug and Play |
Yes |
| Internal |
No |
| Ports & interfaces |

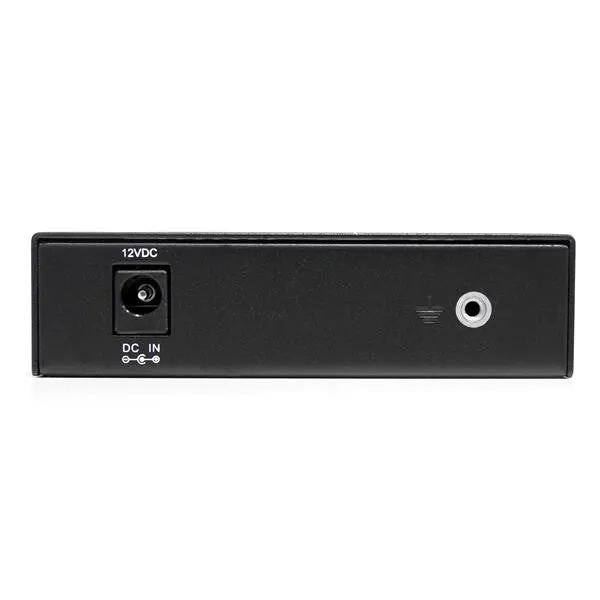

| DC-in jack |
Yes |
| Fiber optic connector |
LC |
| Fiber ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
| External power adapter |
Yes |
| Output current |
1 A |
| Output voltage |
12 V |
| Weight & dimensions |
| Weight |
620 g |
| Operational conditions |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-10 – 70 °C |
| Operating temperature (T-T) |
0 – 60 °C |
| Packaging content |
| Manual |
Yes |
| Packaging data |
| Package weight |
754 g |
| Package height |
89 mm |
| Package depth |
138 mm |
| Package width |
205 mm |
| Certificates |
| Certification |
CE, FCC |
| Compliance certificates |
RoHS |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Other features |
| Dimensions (WxDxH) |
95 x 160 x 20 mm |
| Full duplex |
Yes |
