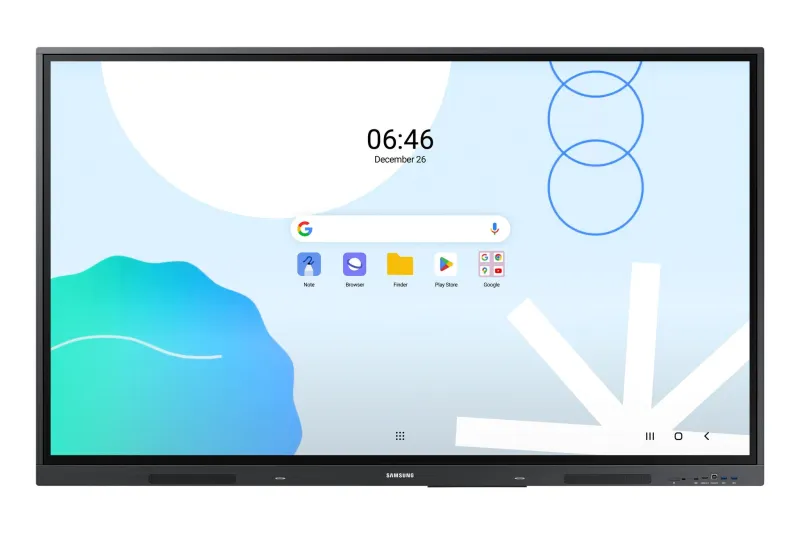

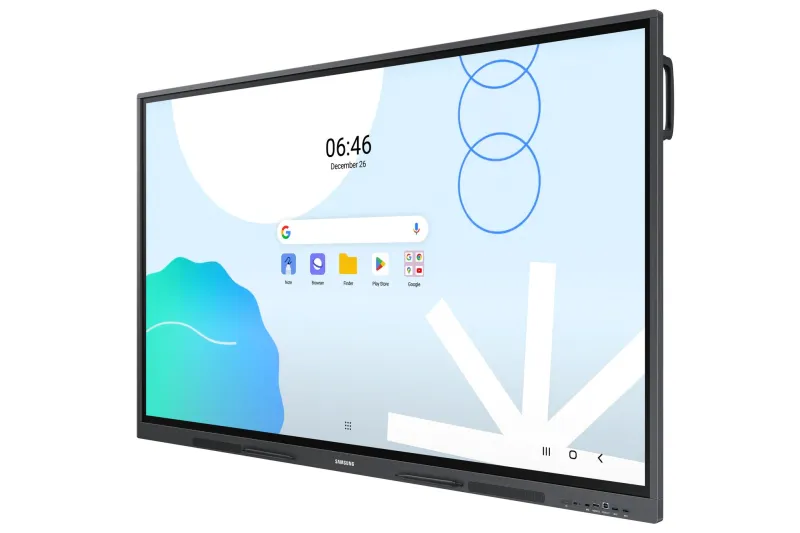

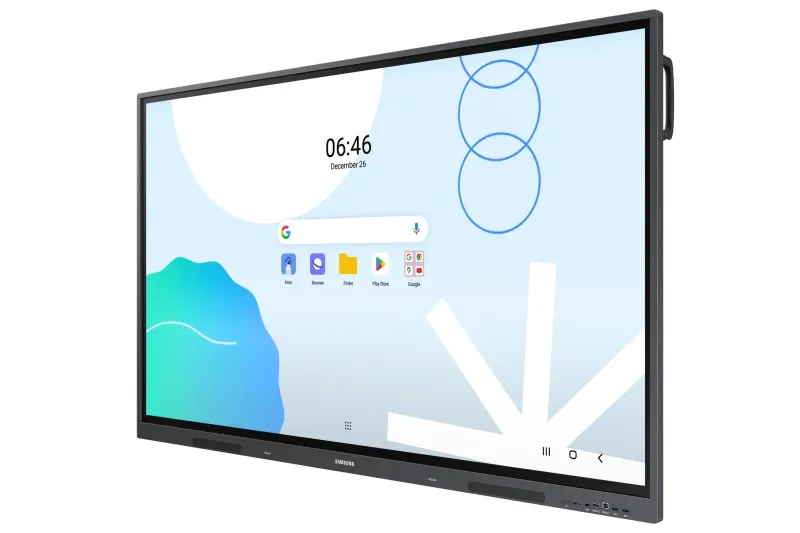

Samsung WA65D interactive whiteboard 165.1 cm (65″) 3840 x 2160 pixels Touchscreen Grey
- Touchscreen 165.1 cm (65″) ADS Grey
- 4K Ultra HD 3840 x 2160 pixels 16:9
- 400 cd/m² 1200:1 8 ms
- Bluetooth Ethernet LAN
- VESA mounting 600 x 400 mm
| Display | |
|---|---|
| Haze rate | 25% |
| Maximum pixel clock | 78 MHz |
| Colour gamut | 72% |
| Pixel pitch | 372 x 372 mm |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Touchscreen type | Infrared |
| Touch technology | Multi-touch |
| Touchscreen | Yes |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Native aspect ratio | 16:9 |
| Panel type | ADS |
| HD type | 4K Ultra HD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 400 cd/m² |
| Display diagonal | 165.1 cm (65″) |
| Computer system | |
|---|---|
| Maximum internal memory | 64 GB |
| Operating system version | 13 |
| Operating system installed | Android |
| Projector | |
|---|---|
| Built-in projector | No |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Ports & interfaces | |
|---|---|
| RS-232 ports | 2 |
| IR input port | Yes |
| Video out | Yes |
| Audio output | 1 |
| Microphone connectivity | 3.5 mm |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI version | 2.0 |
| HDMI ports quantity | 3 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDCP version | 2.1 |
| HDCP | Yes |
| Ergonomics | |
|---|---|
| Certification | Part 15, Subpart B Class A KS C9832, KS C9835 EN55032:2015/A11:2020/A1:2020,EN 55035:2017/A11:2020 EN 61000-3-2:2019/A1:2021 EN 61000-3-3:2013/A1:2019/A2:2021 EN 61000-3-2:2019/A1:2021 EN 61000-3-3:2013/A1:2019/A2:2021 EN 61000-3IEC 62368-1 Edtion 3&IEC 60950-1 UL62368-1 edition 3 GB4943.1-2022 PSB+ IEC 62368-1 NOM-019 K 62368 IRAM+ IEC 62368-1 EAC+ IEC 62368-1 INMETRO+ IEC 62368-1 SASO+ IEC 62368-1 BSMI+ IEC 62368-1 IEC 62368-1/AS/NZS 62368-1 IEC60950-1 / IS13252 |
| Panel mounting interface | 600 x 400 mm |
| VESA mounting | Yes |
| Product colour | Grey |
| Performance | |
|---|---|
| Operating hours (hours/days) | 12/7 |
| Power | |
|---|---|
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (sleep) | 0.5 W |
| Power consumption (typical) | 385 W |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 – 90% |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Bezel width | 1.64 cm |
| Weight | 33.9 kg |
| Height | 897 mm |
| Depth | 88 mm |
| Width | 1488 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package weight | 42.9 kg |
| Package height | 1024 mm |
| Package depth | 208 mm |
| Package width | 1628 mm |
| General | |
|---|---|
| Product family | WAD series |
