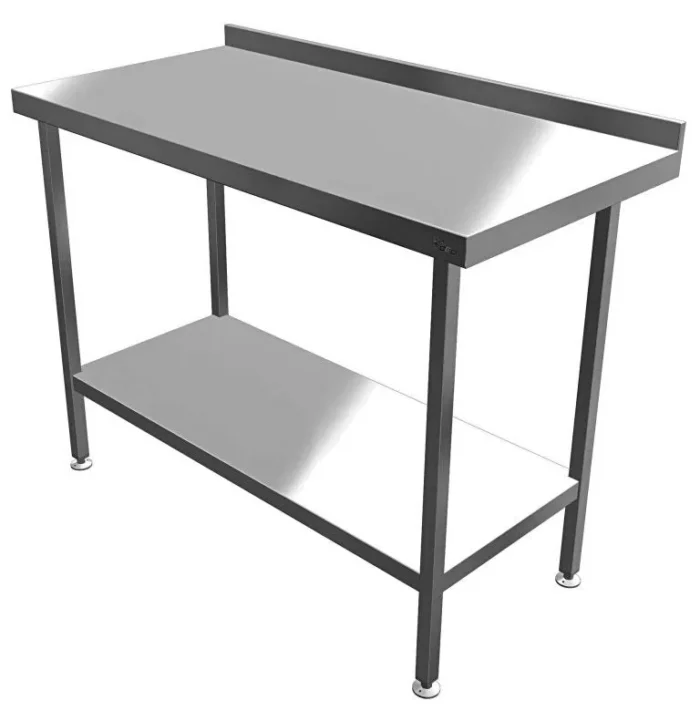

Quick Service Stainless Steel Wall Benches with Under Shelf
CED’s Quick Service range of fully welded wall benches, corner wall benches and wall benches (with void), are constructed from sturdy 30 mm 430 gd. sq box section framing with durable 1.2 mm thick 304 gd. steel worktops and 1.2 mm thick 430 gd. under shelves as standard. Wall bench units are available in three depths and up to eight standard lengths.
Each wall bench type has a solid steel worktop with 50 mm downstand to each edge, the worktop has a 50 mm(H) x 15 mm(D) upstand to the rear. Wall benches & corner wall benches feature a solid steel storage under-shelf below. The legs of the wall benches are fitted with adjustable height flanged feet, for securing the unit to a floor surface on site. All wall bench legs are inset 100 mm to the rear, to allow for service pipework behind. Wall bench legs are set inboard of the worktop 50 mm at each end.
- Fully welded free standing, wall sited commercial s/steel wall bench with worktop.
- Worktop constructed in 304 gd (1.2 thk.) s/steel supported on 30 x 30 box section 430 gd (1.2 thk.) framework.
- Welded low level 430 gd (1.2 thk.) s/steel storage under-shelf.
- Available in 600, 900, 1000, 1200, 1400 , 1500, 1800 & 2100 mm popular lengths.
- Available in 600, 650 & 700 mm depths.
- Standard wall bench height is 900 mm – to suit most kitchen area back counters.
- Steel worktop features 50 mm down stand to each edge.
- 50 mm(H) splashback/ wall up stand to rear of worktop.
- Wall bench legs inset 100 mm to the rear, to allow for service pipework behind.
- Frame fitted with flanged levelling feet for mechanical fixing to floor surface.
- Wall bench height adjustment: -15/+35mm.
