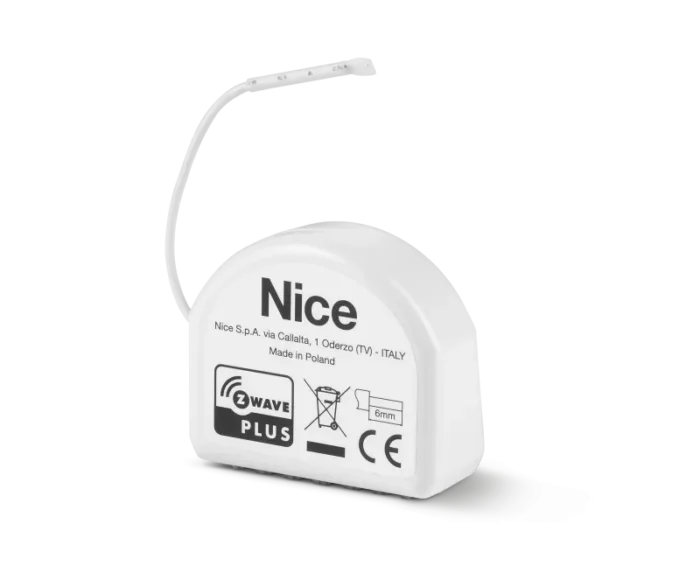

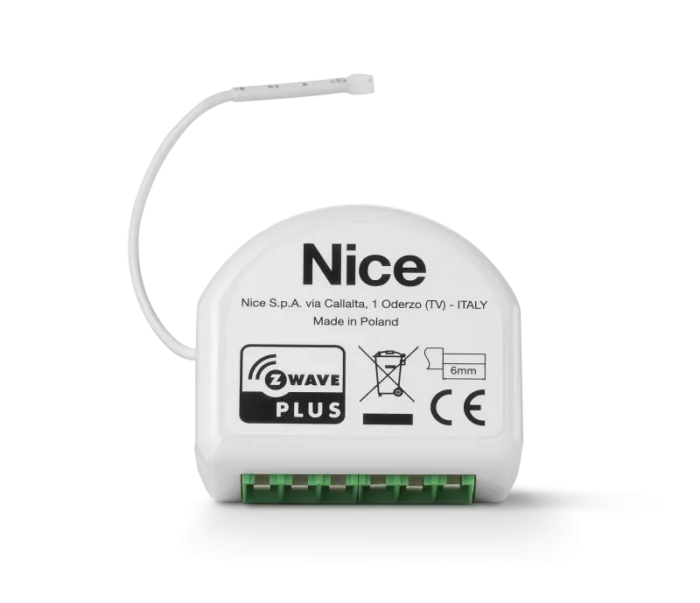

Nice On/Off – Control
The Nice On/Off-Control has been created to facilitate the switching of up to two electrical devices. These devices can be included in automated scenarios or grouped together through the Z-Wave network. As a default function, the module also monitors the active power consumption of the connected electrical devices.
Properties “Nice On/Off-Control “
| Actors: | Switch |
|---|---|
| Battery included: | Yes |
| Communicatie & Protocol: | Z-Wave |
| Dimensions Product: | 42.5 x 38.25 x 20.3 mm |
| In accordance with guidelines: | RED 2014/53/EU RoHS 2011/65/EU |
| Inputs: | 2 |
| Installation method: | Flush mount |
| Maximum load capacity: | 6.5A per channel 10A totally |
| Operating temperature: | 0-35 °C |
| Power source: | 100-240V AC, 50/60Hz |
| Protocol: | Z-Wave, Z-Wave (500 series chip) |
| Radio frequency: | 868.0–868.6MHz 869.7–870.0MHz |
| Range: | outdoor up to 50m indoors up to 40m (Depending on terrain and building construction) |
| Supported load types: | Resistive |
| Transmit power: | +6 dBm |
