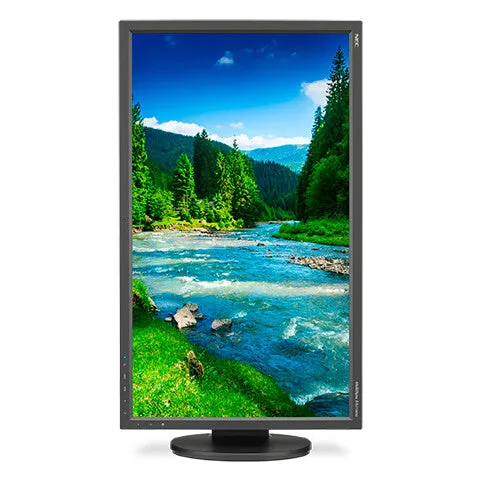

NEC MultiSync EA275WMI-BK LED display 68.6 cm (27″) 2560 x 1440 pixels Quad HD Black
- 68.6 cm (27″) LED AH-IPS
- Quad HD 2560 x 1440 pixels 16:9
- 6 ms 350 cd/m² 1000:1
- 61 W
The 27” NEC MultiSync EA275WMi is a WQHD LCD designed for multiple-monitor configurations. This widescreen model features IPS panel technology with wide viewing angles (178° horizontal/vertical) and an LED backlight for a slimmer profile, lighter weight and increased power savings. This model also features a height-adjustable stand (130mm) and full connectivity with DisplayPort, HDMI and DVI-I inputs as well as a DisplayPort output. The EA275WMi includes touch-sensitive On Screen Display controls, a Picture by Picture (PBP) mode for two inputs onscreen at the same time, streamlined cable management and ControlSync™ technology, which allows users to control the settings of up to six units in a multi-monitor configuration.
– High resolution IPS panel with wide viewing angles for excellent image reproduction
– Full connectivity, including DisplayPort, HDMI AND DVI-I inputs
– Touch-sensitive OSD controls are integrated into the bezel, making display adjustments easier than ever
– Human and ambient light sensors automatically detect your work conditions to determine the proper display brightness and conserve power
– Fully adjustable quick-release stand, including height-adjust (130mm), pivot, tilt and swivel capabilities, adds flexibility and comfort to your viewing preferences
– ECO Mode allows for up to 56% more power conservation (vs. typical power settings), reducing your energy costsl
– Compatible with SpectraViewII calibration software and the SVII-EA-KIT calibration kit
| Display |
| Composite sync |
Yes |
| 3D |
No |
| DDC/CI |
Yes |
| Digital vertical frequency |
56 – 75 Hz |
| Digital horizontal frequency |
31.5 – 91 kHz |
| Viewable size diagonal |
68.5 cm |
| Viewable size, vertical |
33.6 cm |
| Viewable size, horizontal |
59.7 cm |
| Horizontal scan range |
31.5 – 83 kHz |
| Pixel density |
109 ppi |
| Pixel pitch |
0.233 x 0.233 mm |
| Display number of colours |
16.78 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (dynamic) |
20000:1 |
| Contrast ratio (typical) |
1000:1 |
| Aspect ratio |
16:9 |
| Supported graphics resolutions |
640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 870, 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1920 x 1080 (HD 1080), 2560 x 1440 |
| Screen shape |
Flat |
| Response time |
6 ms |
| Display brightness (typical) |
350 cd/m² |
| Backlight type |
W-LED |
| Panel type |
AH-IPS |
| HD type |
Quad HD |
| Touchscreen |
No |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
2560 x 1440 pixels |
| Display diagonal |
68.6 cm (27″) |
| Multimedia |
| Built-in camera |
No |
| RMS rated power |
2 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
| Product colour |
Black |
| Ports & interfaces |
| HDCP |
Yes |
| Headphone connectivity |
3.5 mm |
| Headphone outputs |
1 |
| Audio input |
Yes |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| DVI-I ports quantity |
1 |
| DVI port |
Yes |
| USB Type-A downstream ports quantity |
3 |
| USB hub version |
3.2 Gen 1 (3.1 Gen 1) |
| Ergonomics |
| Plug and Play |
Yes |
| On Screen Display (OSD) |
Yes |
| Tilt adjustment |
Yes |
| Swivelling |
Yes |
| Pivot |
Yes |
| Adjustable height (max) |
13 cm |
| Height adjustment |
Yes |
| Cable lock slot |
No |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
| Annual energy consumption |
60 kWh |
| AC input frequency |
50 – 60 Hz |
| AC input voltage |
100 – 240 V |
| Power consumption (standby) |
0.47 W |
| Power consumption (typical) |
61 W |
| Operational conditions |
| Non-operating altitude |
0 – 12192 m |
| Operating altitude |
0 – 5000 m |
| Storage relative humidity (H-H) |
10 – 85% |
| Operating relative humidity (H-H) |
20 – 80% |
| Storage temperature (T-T) |
-10 – 60 °C |
| Operating temperature (T-T) |
5 – 35 °C |
| Weight & dimensions |
| Weight (without stand) |
5.8 kg |
| Height (without stand) |
377.8 mm |
| Depth (without stand) |
72 mm |
| Width (without stand) |
639.2 mm |
| Weight (with stand) |
8.7 kg |
| Height (with stand) |
547.9 mm |
| Depth (with stand) |
230 mm |
| Width (with stand) |
369.2 mm |
| Packaging content |
| Manual |
Yes |
| Cables included |
AC, DisplayPort, USB |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| General |
| Product family |
MultiSync |
| Other features |
| Energy efficiency class (old) |
B |
| Certification |
TCO, RoHS |
| Light sensor |
Yes |
| TV tuner integrated |
No |
| Rotating |
Yes |
| Display |
LCD |
| Thin Client |
| Thin client installed |
No |
| Logistics data |
| Harmonized System (HS) code |
85285210 |
