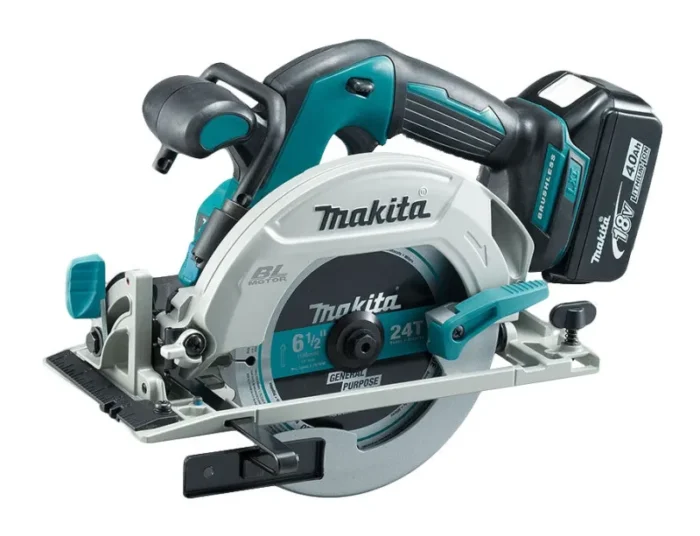

Makita DHS680Z portable circular saw 16.5 cm Green 5000 RPM
- Blade diameter: 16.5 cm 5000 RPM
- Soft start
- Cutting depth (90º): 5.7 cm
- Power source: Battery
- Green
| Features | |
|---|---|
| Anti-vibration system | Yes |
| Power protection features | Overcharge, Overload |
| Spindle lock | Yes |
| Soft start | Yes |
| Product colour | Green |
| Performance | |
|---|---|
| Sound level uncertainty | 3 dB |
| Sound pressure level | 83 dB |
| Sound power level | 94 dB |
| Cutting depth (45º) | 4.1 cm |
| Cutting depth (90º) | 5.7 cm |
| Idle speed (max) | 5000 RPM |
| Blade diameter | 16.5 cm |
| Power | |
|---|---|
| Battery voltage | 18 V |
| Power source | Battery |
| Weight & dimensions | |
|---|---|
| Weight | 3.3 kg |
| Height | 236 mm |
| Depth | 170 mm |
| Width | 350 mm |
| Blade thickness | 2 cm |
| Packaging content | |
|---|---|
| Saw blade included | Yes |
| Other features | |
|---|---|
| Position indicator | Yes |
| Angle setting range | 0 – 50° |
| Angle setting type | Stepless |
| Castor wheels | Yes |
| Vibration emission | 2.5 m/s² |
| Uncertainty K | 1.5 m/s² |
| Saw blade type | Single blade |
| Soft grip | Yes |
| Table tilt adjustment | Yes |
| Quantity | 1 |
