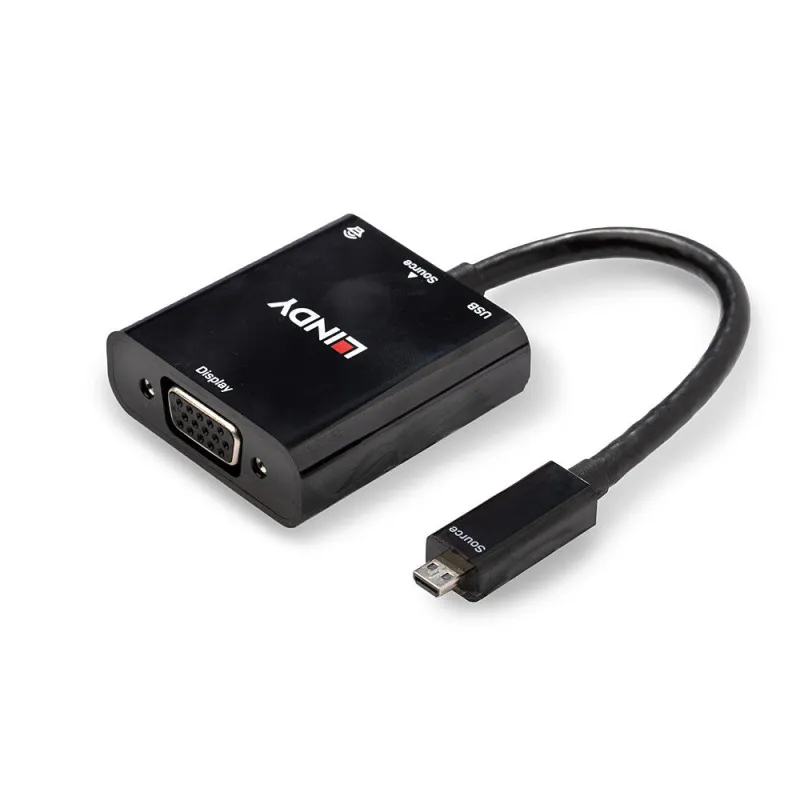

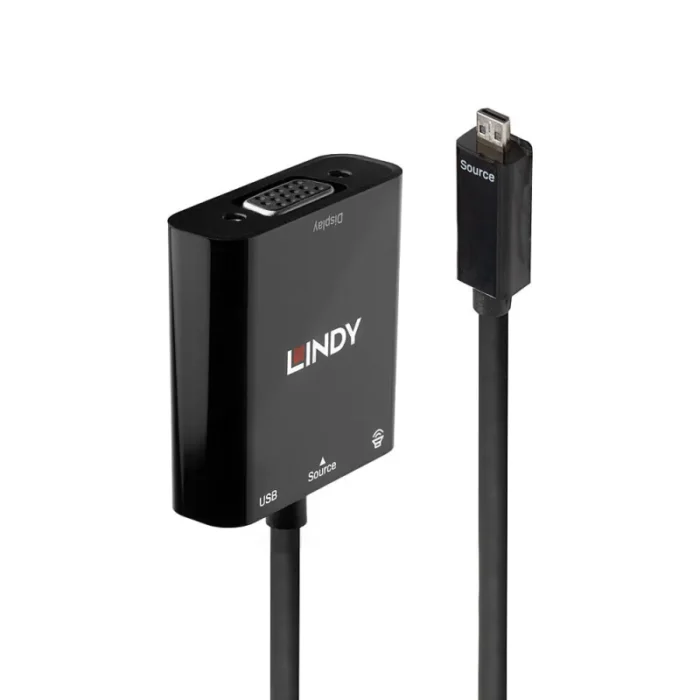

Lindy Micro HDMI D to VGA & Audio Converter
- Connects an HDMI D equipped device to a VGA display and analogue speakers
- Supports resolutions up to 1920×1200 including 1080p
- Direct signal conversion, without scaling
- Quick and simple plug and play installation
- 2 Year Warranty
Connects an HDMI D equipped device to a VGA display and analogue speakers
Supports resolutions up to 1920×1200 including 1080p
Direct signal conversion, without scaling
Compact dimensions for easy installation and use
2 year warranty

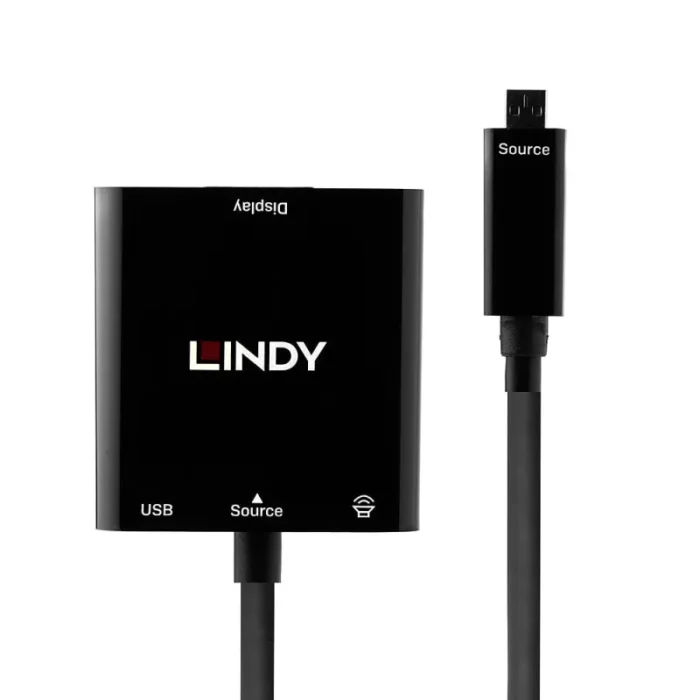

The Lindy Micro-HDMI to VGA and Audio Converter connects a HDMI source such as a laptop, ultrabook or PC to a VGA display, with a seperate 3.5mm port for connection with analogue speakers.
It converts the HDMI signal (along with the associated digital audio stream) into an analogue VGA signal, simultaneously extracting the audio for a stereo speaker connection. Full HD signals are supported, including 1080p for HDTV connections and up to 1920×1200 for PC VGA monitors.
No external power source is required, which makes this converter the perfect tool for flexible working in different environments, whether it’s in the office, travelling to hold presentations or at home, as it also permits the use of older VGA monitors or projectors to display content.
| Features | |
|---|---|
| Cable shielding | Aluminium mylar foil |
| Colour depth | 12 bit |
| AWG wire size | 30 |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable material | Copper |
| Product colour | Black |
| Data transfer rate | 4.95 Gbit/s |
| Maximum resolution | 1920 x 1200 pixels |
| HDMI version | 1.3 |
| Power source | USB |
| Audio connector type | 3.5 mm (1/8″) |
| Audio connector | Yes |
| Connector contacts plating | Nickel |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Connector 2 | VGA (D-Sub) |
| Connector 1 | HDMI Type D (Micro) |
| Cable length | 0.1 m |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -10 – 80 °C |
| Operating temperature (T-T) | 0 – 70 °C |
| Certificates | |
|---|---|
| Certification | CE, FCC, REACH |
| Weight & dimensions | |
|---|---|
| Cable diameter | 4.8 mm |
| Packaging data | |
|---|---|
| Package type | Polybag |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
