Lindy 100m USB 2.0 Cat.6 Extender
- Extends a single USB port up to 100m using Cat.5e/6 network cable (not included)
- Plug and Play installation, OS independent
- Perfect for use with USB 2.0 devices such as storage devices, printers, scanners, mice and keyboards*
- Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed
- 2 year warranty

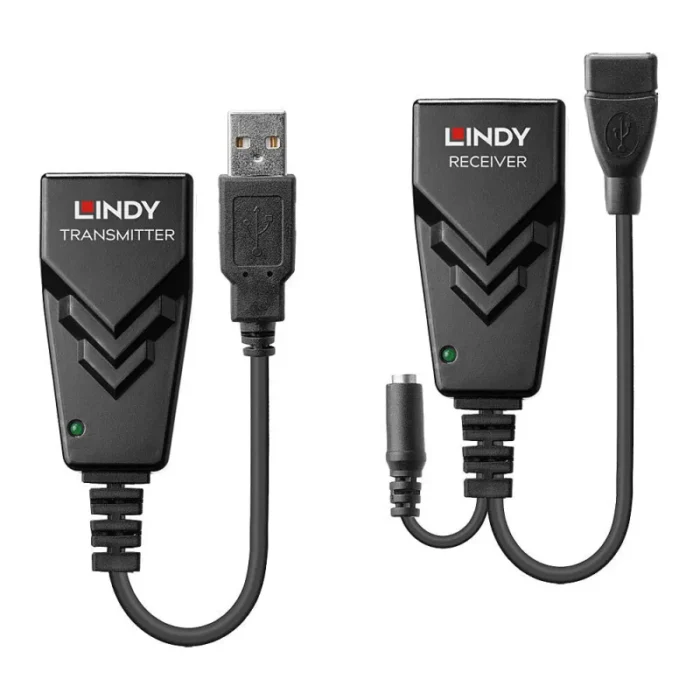

The Lindy 100m USB 2.0 Cat.6 Extender can be used to extend the distance between a USB peripheral device and host computer by up to 100m. It consists of a transmitter unit which connects to the computer and a receiver unit that connects to the device. Standard Cat.5e/6 network cable (not included) is then used to bridge the connection between the two units. For best performance and compatibility, we recommend the use of solid core patched cables.
For added convenience this USB 2.0 Extender is supplied with a power supply, which can be connected should additional power be required.
*Please Note: this extender might not support USB devices that require high bandwidths such as Full HD webcams.
| Performance | |
|---|---|
| Chipset | CH317Q, CH536G |
| Cable types supported | Cat5e, Cat6 |
| Data transfer rate | 480 Mbit/s |
| Maximum transfer distance | 100 m |
| Type | Network transmitter & receiver |
| Ports & interfaces | |
|---|---|
| RJ-45 ports quantity (receiver) | 1 |
| RJ-45 ports quantity (transmitter) | 1 |
| Design | |
|---|---|
| Certification | CE, FCC, REACH, CP65 |
| Housing material | Plastic |
| Product colour | Black |
| Power | |
|---|---|
| Output current | 2 A |
| Output voltage | 5 V |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 – 80% |
| Storage temperature (T-T) | -10 – 60 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 50 g |
| Height | 69 mm |
| Depth | 22 mm |
| Width | 36 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Packaging data | |
|---|---|
| Package weight | 250 g |
| Package height | 48 mm |
| Package depth | 200 mm |
| Package width | 200 mm |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
- manual pdf
- CE Declaration of Conformity
