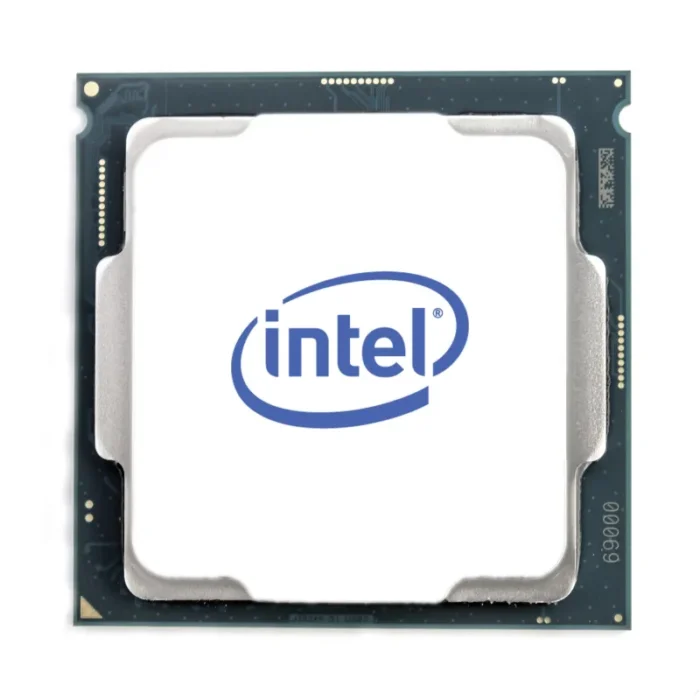

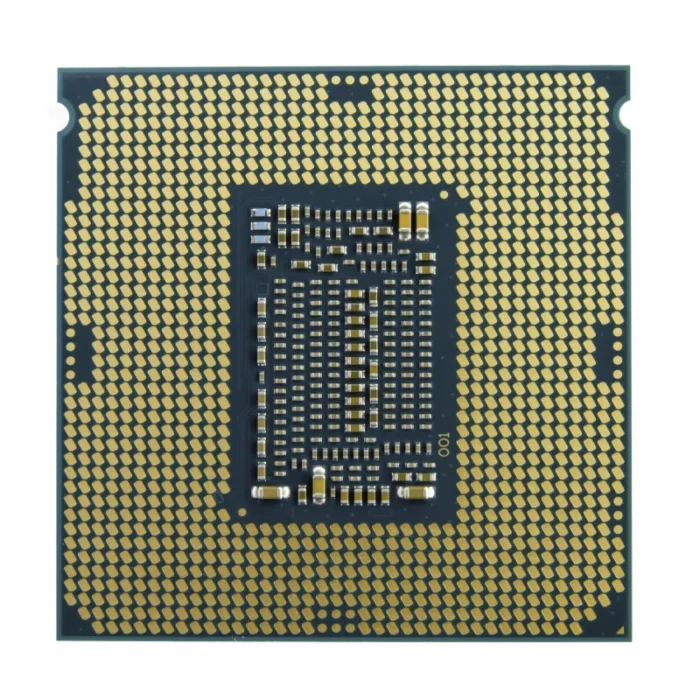

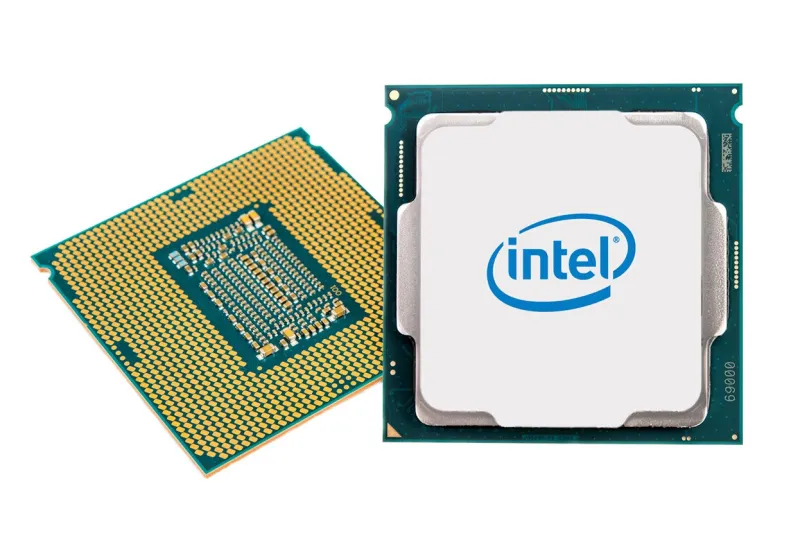

Lenovo Xeon Intel Gold 5317 processor 3 GHz 18 MB
- Intel® Xeon® Gold 5317 3 GHz
- 18 MB LGA 4189
- Processor cores: 12 10 nm 64-bit 150 W
- Maximum internal memory supported by processor: 6 TB DDR4-SDRAM
| Processor | |
|---|---|
| Processor codename | Ice Lake |
| Thermal Design Power (TDP) | 150 W |
| Processor cache | 18 MB |
| Processor boost frequency | 3.6 GHz |
| Processor operating modes | 64-bit |
| System bus rate | 11.2 GT/s |
| Processor threads | 24 |
| Processor series | Intel Xeon Gold 5000 Series |
| Component for | Server/workstation |
| Processor lithography | 10 nm |
| Processor socket | LGA 4189 |
| Processor cores | 12 |
| Processor base frequency | 3 GHz |
| Processor model | 5317 |
| Processor generation | 3rd Generation Intel® Xeon® Scalable |
| Processor family | Intel® Xeon® Gold |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| ECC | Yes |
| Memory channels | Octa-channel |
| Memory types supported by processor | DDR4-SDRAM |
| Maximum internal memory supported by processor | 6 TB |
| Graphics | |
|---|---|
| Discrete graphics card model | Not available |
| On-board graphics card model | Not available |
| On-board graphics card | No |
| Discrete graphics card | No |
| Features | |
|---|---|
| Commodity Classification Automated Tracking System (CCATS) | G178966 |
| Export Control Classification Number (ECCN) | 5A992CN3 |
| Scalability | 2S |
| Embedded options available | Yes |
| Supported instruction sets | SSE4.2, AVX, AVX 2.0, AVX-512 |
| PCI Express slots version | 4.0 |
| Maximum number of PCI Express lanes | 64 |
| Market segment | Server |
| Execute Disable Bit | Yes |
| Processor special features | |
|---|---|
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| AVX-512 Fused Multiply-Add (FMA) units | 2 |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| Intel® Resource Director Technology (Intel® RDT) | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Mode-based Execute Control (MBE) | Yes |
| Intel® Optane™ DC Persistent Memory Supported | Yes |
| Intel® Run Sure Technology | Yes |
| Intel® Crypto Acceleration | Yes |
| Intel® Platform Firmware Resilience Support | Yes |
| Maximum Enclave Size Support for Intel® SGX | 64 GB |
| Intel® Total Memory Encryption | Yes |
| Intel® Transactional Synchronization Extensions | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Speed Shift Technology | Yes |
| General | |
|---|---|
| Product family | Xeon |
| Operational conditions | |
|---|---|
| Tcase | 84 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 8542310001 |
| Technical details | |
|---|---|
| Launch date | Q2’21 |
| Status | Launched |
| Memory speed (max) | 2933 MHz |
| Number of UPI links | 3 |
| Target market | Cloud Computing |
| Supported memory types | DDR4-SDRAM |
| Weight & dimensions | |
|---|---|
| Processor package size | 77.5 x 56.5 mm |
| Other features | |
|---|---|
| Maximum internal memory | 6 TB |
