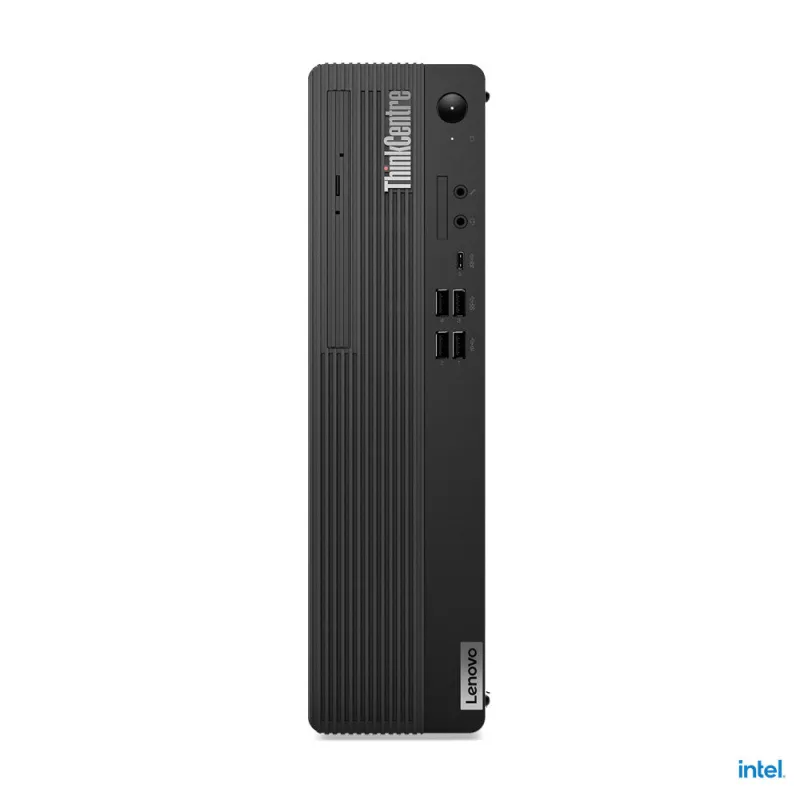

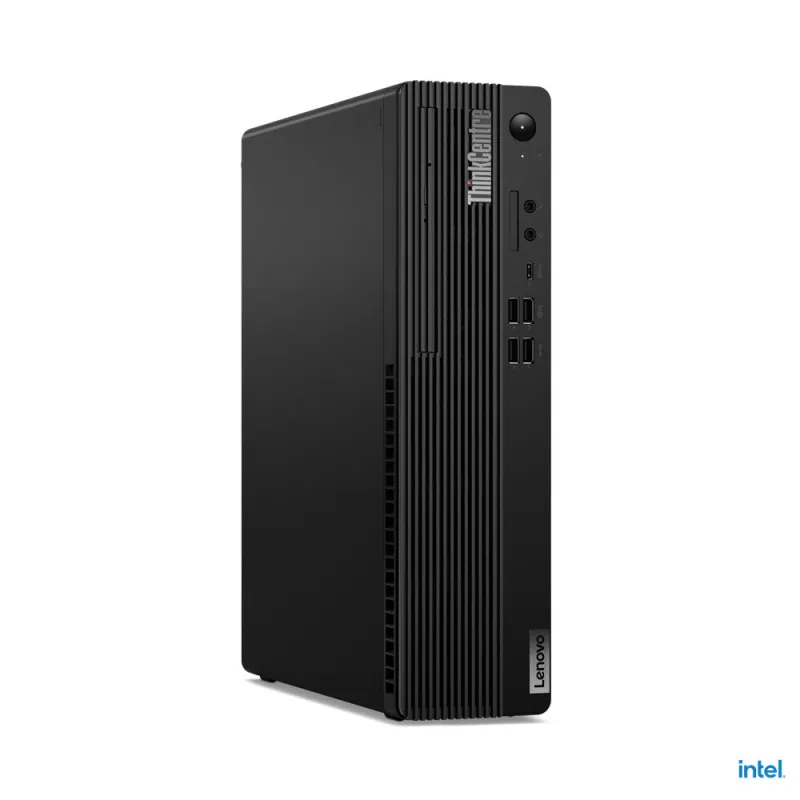

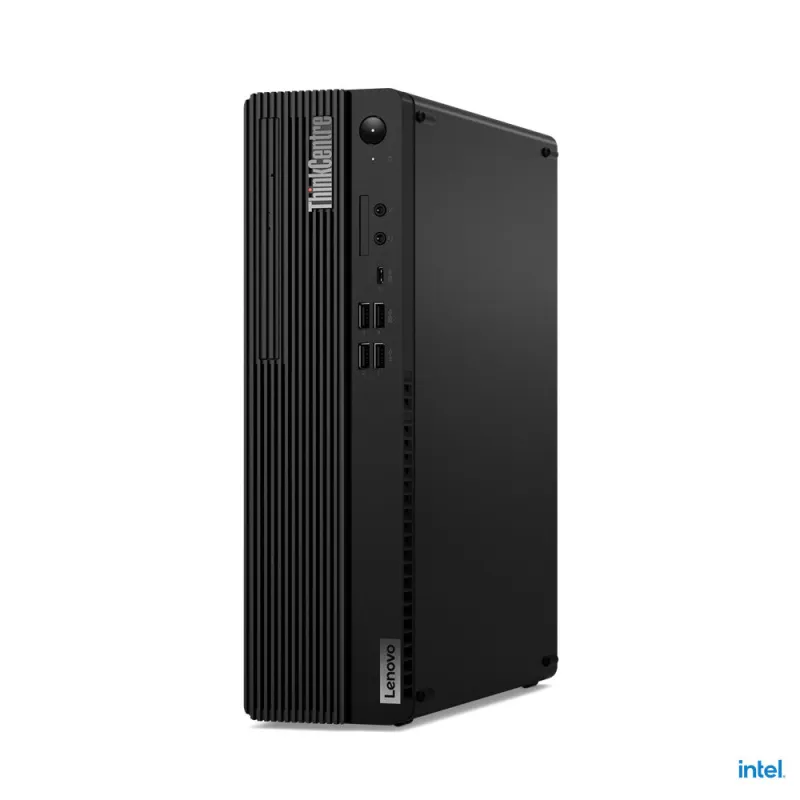

Lenovo ThinkCentre M70s Intel® Core™ i5 i5-12500 8 GB DDR4-SDRAM 256 GB SSD Windows 11 Pro SFF PC Black
- Intel Core i5-12500, 6C (6P + 0E)/12T, P-core 3.0/4.6GHz, 18MB
- 1x 8GB UDIMM DDR4-3200
- 256GB SSD M.2 2280 PCIe 4.0×4 Value NVMe Opal
- Intel UHD Graphics 770
- Windows 11 Pro
Power & flexibility in a small form factor
The ThinkCentre M70s Gen 3 (Intel) small form factor desktop PC is engineered to save space and handle tasks like larger tower PCs can. At 8.2L, it improves productivity and employee experience with its power and convenience, while its sustainable design enhances your company’s green credentials.
| Processor |
| Bus type |
DMI4 |
| Processor cache type |
Smart Cache |
| Processor cache |
18 MB |
| Processor frequency |
3 GHz |
| Processor boost frequency |
4.6 GHz |
| Processor cores |
6 |
| Processor model |
i5-12500 |
| Processor generation |
12th gen Intel® Core™ i5 |
| Processor family |
Intel® Core™ i5 |
| Processor manufacturer |
Intel |
| Memory |
| Memory channels |
Dual-channel |
| Memory clock speed |
3200 MHz |
| Memory slots |
4x DIMM |
| Memory layout (slots x size) |
1 x 8 GB |
| Internal memory type |
DDR4-SDRAM |
| Maximum internal memory |
128 GB |
| Internal memory |
8 GB |
| Storage |
| Card reader integrated |
Yes |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express 4.0 |
| NVMe |
Yes |
| SSD capacity |
256 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
256 GB |
| Number of storage drives installed |
1 |
| Storage media |
SSD |
| Optical drive type |
DVD±RW |
| Total storage capacity |
256 GB |
| Graphics |
| On-board graphics card model |
Intel UHD Graphics 770 |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| Network |
| Bluetooth |
No |
| Wi-Fi |
No |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| Line-out |
Yes |
| Microphone in |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
2 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
4 |
| Design |
| Viewing window |
No |
| Product colour |
Black |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Placement supported |
Horizontal/Vertical |
| Volume |
8.2 L |
| Colour name |
Black |
| Chassis type |
SFF |
| Performance |
| Trusted Platform Module (TPM) |
Yes |
| Password protection type |
HDD, Power on, Supervisor |
| Password protection |
Yes |
| Number of speakers |
1 |
| Built-in speaker(s) |
Yes |
| Audio system |
High Definition Audio |
| Audio chip |
Realtek ALC897Q-CG |
| Motherboard chipset |
Intel Q670 |
| Product type |
PC |
| Software |
| Operating system language |
English |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Processor special features |
| CPU configuration (max) |
1 |
| Power |
| Power supply input frequency |
50 – 60 Hz |
| Power supply input voltage |
100 – 240 V |
| Power supply |
260 W |
| Operational conditions |
| Non-operating altitude |
0 – 12192 m |
| Operating altitude |
0 – 3048 m |
| Storage relative humidity (H-H) |
10 – 90% |
| Operating relative humidity (H-H) |
20 – 80% |
| Storage temperature (T-T) |
-40 – 60 °C |
| Operating temperature (T-T) |
10 – 35 °C |
| Certificates |
| Certification |
MIL-STD-810H, ErP Lot 3 |
| Compliance certificates |
RoHS |
| Sustainability |
| Sustainability certificates |
TCO |
| Weight & dimensions |
| Weight |
5.3 kg |
| Height |
340 mm |
| Depth |
298 mm |
| Width |
93 mm |
| Packaging content |
| Keyboard included |
Yes |
| Mouse included |
Yes |
| Display included |
No |
| General |
| Product family |
ThinkCentre |
| Product series |
M |
