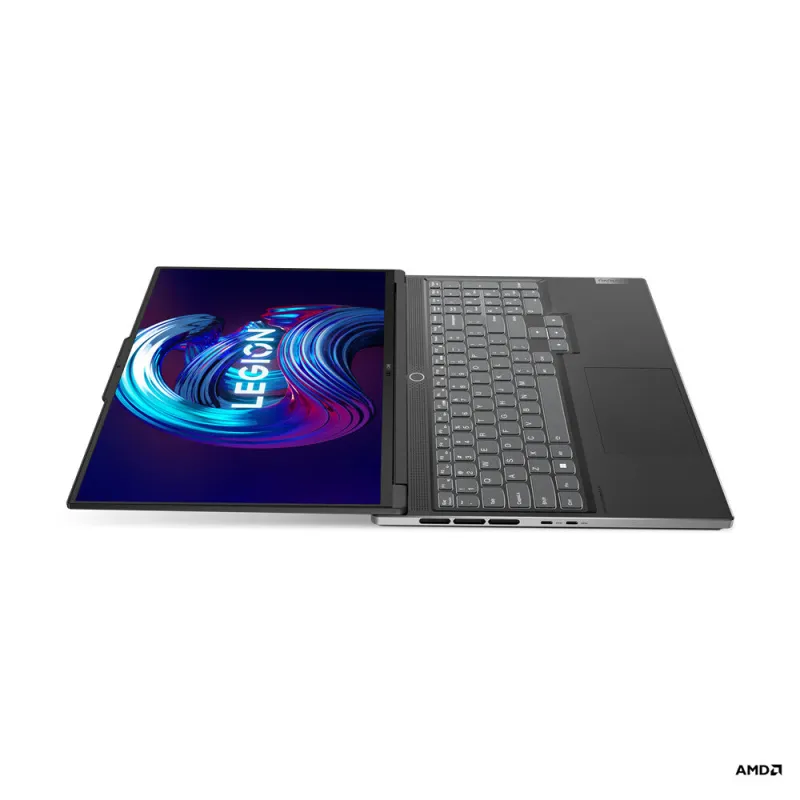

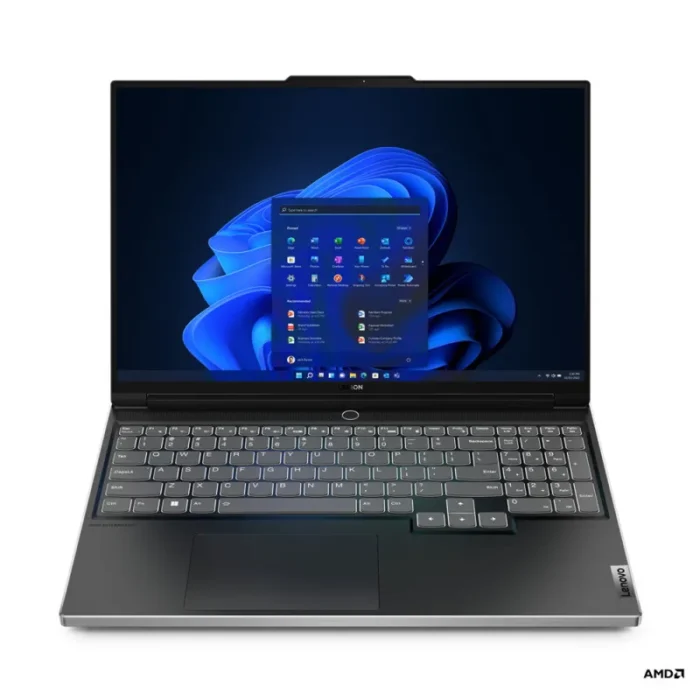

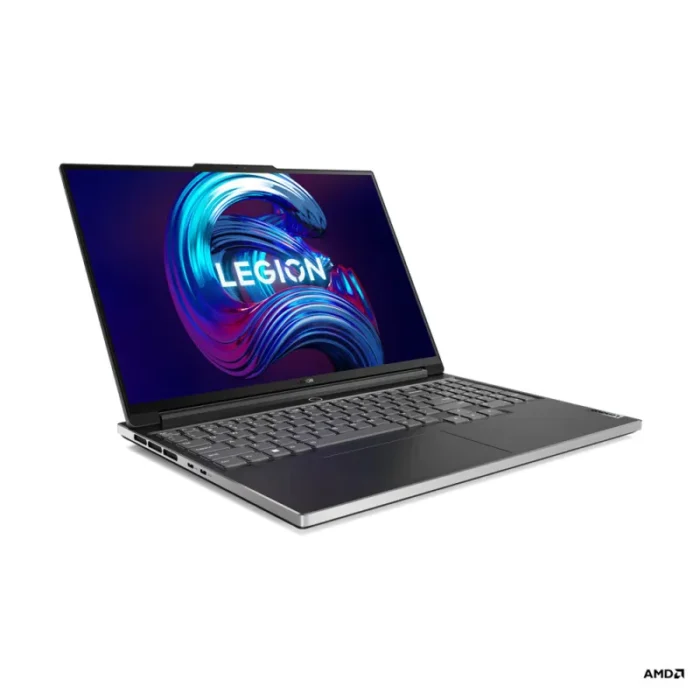

Lenovo Legion S7 16ARHA7 AMD Ryzen™ 7 6800H Laptop 40.6 cm (16″) WQXGA 16 GB DDR5-SDRAM 512 GB SSD AMD Radeon RX 6600S Wi-Fi 6E (802.11ax) Windows 11 Home UK English Grey
- AMD Ryzen 7 6800H (8C/16T, 3.2/4.7GHz, 4MB L2/16MB L3)
- 8GB DDR5-4800 + 8GB SO-DIMM DDR5-4800
- 512GB SSD M.2 2280 PCIe 4.0×4 NVMe
- AMD Radeon RX 6600S 4GB
- Windows 11 Home
The freedom to forge your realities
– Play with AMD Advantage™ Edition Ryzen™ 6000 Series Mobile Processors
– Enjoy thin & light gaming with AMD Radeon™ RX 6000S graphics
– Push the envelope on performance with up to 24GB of DDR5 RAM
– See the tactical advantage on a 16″ WXQGA 16:10 display with 165Hz refresh rate and options of 240Hz or mini-LED
– Next-gen Coldfront 4.0 cooling tech optimizes for stealth
| Design |
| Market positioning |
Gaming |
| Housing material |
Aluminium |
| Form factor |
Clamshell |
| Colour name |
Onyx Grey |
| Product colour |
Grey |
| Product type |
Laptop |
| Display |
| High Dynamic Range (HDR) technology |
Dolby Vision, High Dynamic Range (HDR) 400 |
| High Dynamic Range (HDR) supported |
Yes |
| Contrast ratio (typical) |
1200:1 |
| Maximum refresh rate |
165 Hz |
| RGB colour space |
sRGB |
| Colour gamut |
100% |
| Display brightness |
500 cd/m² |
| Anti-glare screen |
Yes |
| Native aspect ratio |
16:10 |
| LED backlight |
Yes |
| Panel type |
IPS |
| HD type |
WQXGA |
| Touchscreen |
No |
| Display resolution |
2560 x 1600 pixels |
| Display diagonal |
40.6 cm (16″) |
| Processor |
| Processor cache type |
L3 |
| Processor cache |
16 MB |
| Processor frequency |
3.2 GHz |
| Processor boost frequency |
4.7 GHz |
| Processor cores |
8 |
| Processor model |
6800H |
| Processor generation |
AMD Ryzen 6000 Series |
| Processor family |
AMD Ryzen™ 7 |
| Processor manufacturer |
AMD |
| Memory |
| Memory channels |
Dual-channel |
| Maximum internal memory |
16 GB |
| Memory slots |
1x SO-DIMM |
| Memory layout (slots x size) |
1 x 8 GB |
| Memory clock speed |
4800 MHz |
| Memory form factor |
On-board + SO-DIMM |
| Internal memory type |
DDR5-SDRAM |
| Internal memory |
16 GB |
| Storage |
| Compatible memory cards |
MMC, SD, SDHC, SDXC |
| Card reader integrated |
Yes |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express 4.0 |
| NVMe |
Yes |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Storage media |
SSD |
| Total storage capacity |
512 GB |
| Graphics |
| AMD FreeSync |
Yes |
| On-board graphics card model |
AMD Radeon 680M |
| On-board graphics card family |
AMD Radeon |
| On-board GPU manufacturer |
AMD |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
4 GB |
| Discrete graphics card model |
AMD Radeon RX 6600S |
| Discrete GPU manufacturer |
AMD |
| Discrete graphics card |
Yes |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of microphones |
2 |
| Speaker power |
2 W |
| Speakers manufacturer |
Harman Kardon |
| Number of built-in speakers |
2 |
| Audio chip |
Realtek ALC3306 |
| Camera |
| Privacy type |
Privacy shutter |
| Privacy camera |
Yes |
| Front camera resolution |
1920 x 1080 pixels |
| Front camera HD type |
Full HD |
| Front camera |
Yes |
| Network |
| WWAN |
Not installed |
| Bluetooth version |
5.1 |
| Bluetooth |
Yes |
| Ethernet LAN |
No |
| Antenna type |
2×2 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Mobile network connection |
No |
| Ports & interfaces |
| USB Sleep-and-Charge |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Performance |
| Motherboard chipset |
AMD SoC |
| Keyboard |
| Keyboard backlit colour |
RGB |
| Numeric keypad |
Yes |
| Keyboard backlit |
Yes |
| Keyboard language |
UK English |
| Keyboard layout |
QWERTY |
| Pointing device |
Touchpad |
| Software |
| Bundled software |
Office Trial |
| Trial software |
Office |
| Operating system language |
English |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Home |
| Battery |
| Battery life (max) |
9.2 h |
| Battery capacity |
99.99 Wh |
| Battery technology |
Lithium Polymer (LiPo) |
| Power |
| USB Power Delivery (USB PD) |
Yes |
| AC adapter input voltage |
100 – 240 V |
| AC adapter frequency |
50 – 60 Hz |
| AC adapter power |
230 W |
| Security |
| Password protection type |
BIOS, Power on |
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Fingerprint reader |
Yes |
| Operational conditions |
| Maximum shipping altitude |
3048 m |
| Storage relative humidity (H-H) |
5 – 95% |
| Operating relative humidity (H-H) |
8 – 95% |
| Storage temperature (T-T) |
5 – 43 °C |
| Operating temperature (T-T) |
5 – 35 °C |
| Certificates |
| Compliance certificates |
RoHS |
| Sustainability |
| Sustainability certificates |
ErP |
| Weight & dimensions |
| Height |
16.9 mm |
| Depth |
260 mm |
| Width |
357.7 mm |
| Weight |
2.23 kg |
| General |
| Product family |
Legion |
