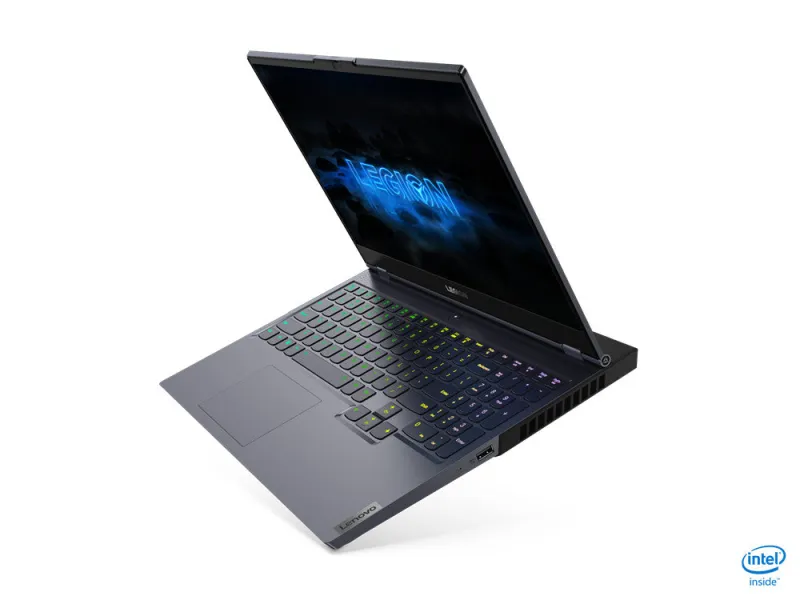

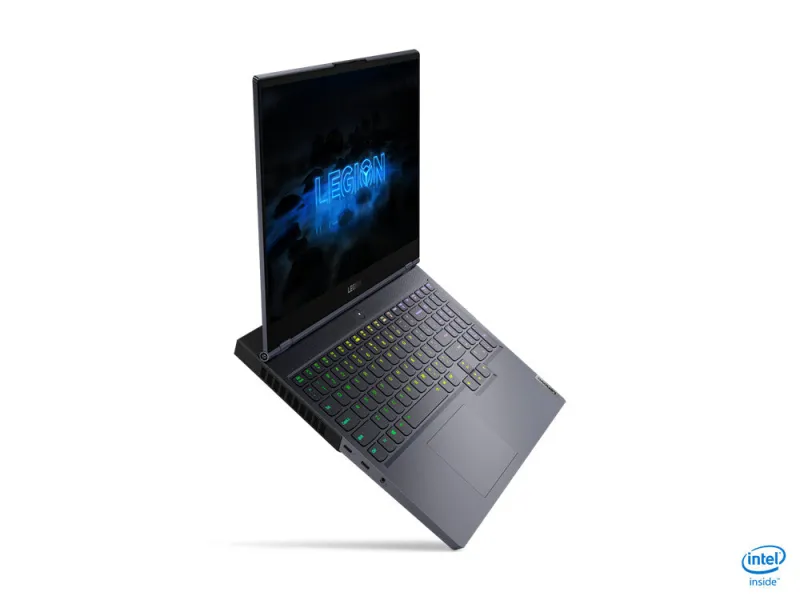

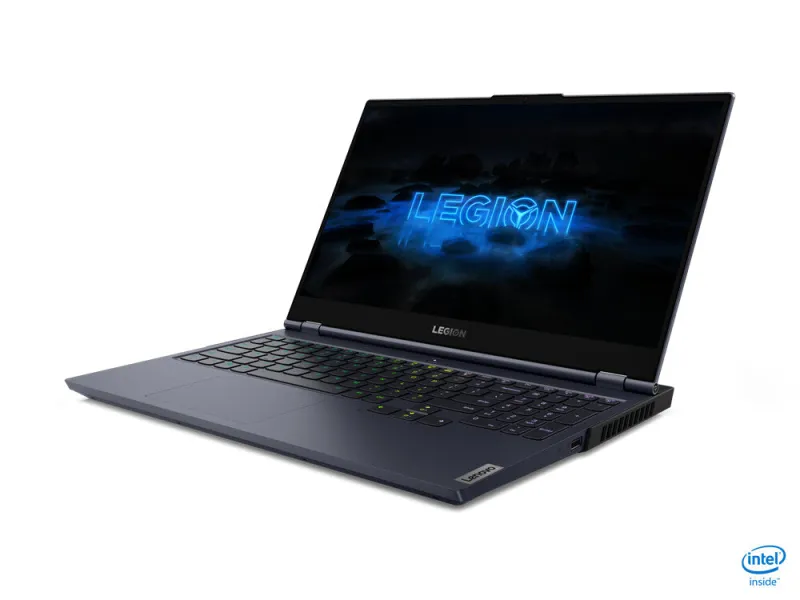

Lenovo Legion 7 15IMHg05 Intel® Core™ i7 i7-10875H Laptop 39.6 cm (15.6″) Full HD 16 GB DDR4-SDRAM 1 TB SSD NVIDIA GeForce RTX 2080 Super Max-Q Wi-Fi 6 (802.11ax) Windows 10 Home English Grey
- Intel Core i7-10875H (8C/16T, 2.3/5.1GHz, 16MB)
- 15.6″ FHD (1920×1080) IPS 500nits 144Hz 100% Adobe RGB HDR400 Dolby Vision G-Sync DC dimmer
- 2x 8GB SO-DIMM DDR4-3200
- 1TB SSD M.2 2280 PCIe 3.0×4 NVMe
- NVIDIA GeForce RTX 2080 Super Max-Q 8GB
- Windows 10 Home 64
Finely calibrated to deliver devastation
A precision-crafted chassis jacketed in high-grade aluminum, the Legion 7i laptop has been meticulously machined to unload maximum damage. Don’t compromise on lightning-fast high-refresh panels, the tactile click-feel of Lenovo’s revolutionary TrueStrike keyboard, ultra-long battery life, or the cool-to-the-touch sense of Legion Coldfront 2.0. Beneath the refined surface hides a battle-ready beast, with up 10th Gen Intel® Core™ i7 H-Series processors and up to NVIDIA® GeForce RTX™ Graphics.
| Design |
| Intel® vPro™ Platform Eligibility |
No |
| Market positioning |
Gaming |
| Housing material |
Aluminium |
| Form factor |
Clamshell |
| Colour name |
Slate grey |
| Product colour |
Grey |
| Product type |
Laptop |
| Display |
| High Dynamic Range (HDR) technology |
Dolby Vision |
| High Dynamic Range (HDR) supported |
Yes |
| Maximum refresh rate |
144 Hz |
| RGB colour space |
Adobe RGB |
| Colour gamut |
100% |
| Display brightness |
500 cd/m² |
| Anti-glare screen |
Yes |
| Native aspect ratio |
16:9 |
| LED backlight |
Yes |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
No |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
39.6 cm (15.6″) |
| Processor |
| Maximum number of PCI Express lanes |
16 |
| PCI Express slots version |
3.0 |
| PCI Express configurations |
1×16, 2×8, 1×8+2×4 |
| Tjunction |
100 °C |
| Configurable TDP-down |
35 W |
| Thermal Design Power (TDP) |
45 W |
| Processor codename |
Comet Lake |
| Processor operating modes |
64-bit |
| Processor lithography |
14 nm |
| Processor socket |
BGA 1440 |
| Processor cache type |
Smart Cache |
| Processor cache |
16 MB |
| System bus rate |
8 GT/s |
| Processor frequency |
2.3 GHz |
| Processor boost frequency |
5.1 GHz |
| Processor threads |
16 |
| Processor cores |
8 |
| Processor model |
i7-10875H |
| Processor generation |
10th gen Intel® Core™ i7 |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Memory |
| Maximum internal memory |
32 GB |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
2 x 8 GB |
| Memory clock speed |
3200 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
16 GB |
| Storage |
| Card reader integrated |
No |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
NVMe, PCI Express |
| NVMe |
Yes |
| SSD capacity |
1 TB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| Storage media |
SSD |
| Total storage capacity |
1 TB |
| Graphics |
| NVIDIA Max-Q |
Yes |
| On-board graphics card ID |
0x9BC4 |
| On-board graphics card OpenGL version |
4.5 |
| On-board graphics card DirectX version |
12.0 |
| On-board graphics card base frequency |
350 MHz |
| On-board graphics card dynamic frequency (max) |
1200 MHz |
| On-board graphics card model |
Intel® UHD Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
8 GB |
| Discrete graphics card model |
NVIDIA GeForce RTX 2080 Super Max-Q |
| Discrete graphics card |
Yes |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of microphones |
2 |
| Speaker power |
2 W |
| Number of built-in speakers |
2 |
| Audio system |
Dolby Atmos |
| Audio chip |
Realtek ALC3306 |
| Camera |
| Privacy type |
Privacy shutter |
| Privacy camera |
Yes |
| Front camera resolution |
1280 x 720 pixels |
| Front camera HD type |
HD |
| Front camera resolution (numeric) |
1 MP |
| Front camera |
Yes |
| Network |
| WWAN |
Not installed |
| Bluetooth version |
5.0 |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Antenna type |
2×2 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Mobile network connection |
No |
| Ports & interfaces |
| USB Sleep-and-Charge ports |
1 |
| USB Sleep-and-Charge |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| HDMI version |
2.0 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Performance |
| Motherboard chipset |
Intel HM470 |
| Keyboard |
| Spill-resistant keyboard |
Yes |
| Keyboard backlit colour |
RGB |
| Numeric keypad |
Yes |
| Keyboard backlit |
Yes |
| Keyboard language |
English |
| Pointing device |
Touchpad |
| Software |
| Trial software |
Office |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 Home |
| Processor special features |
| CPU configuration (max) |
1 |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel 64 |
Yes |
| Intel Stable Image Platform Program (SIPP) |
Yes |
| Intel® Identity Protection Technology (Intel® IPT) |
Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
| Intel® Quick Sync Video Technology |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Intel® Secure Key |
Yes |
| Intel® OS Guard |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Processor package size |
42 x 28 mm |
| Intel Flex Memory Access |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Execute Disable Bit |
Yes |
| Processor ARK ID |
202329 |
| Embedded options available |
No |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Supported instruction sets |
SSE4.1, SSE4.2, AVX 2.0 |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Idle States |
Yes |
| Battery |
| Fast charging time (50%) |
30 min |
| Fast charging |
Yes |
| Battery life (max) |
8 h |
| Battery capacity |
80 Wh |
| Battery technology |
Lithium Polymer (LiPo) |
| Power |
| USB Power Delivery (USB PD) |
No |
| DC-in jack |
Yes |
| AC adapter power |
230 W |
| Security |
| Password protection type |
HDD, Power on, Supervisor |
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Fingerprint reader |
No |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Certificates |
| Certification |
ErP lot3 |
| Compliance certificates |
RoHS |
| Weight & dimensions |
| Height |
19.9 mm |
| Depth |
259 mm |
| Width |
359.3 mm |
| Weight |
2.25 kg |
| General |
| Product family |
Legion |
| Product series |
7 |
| Packaging content |
| AC adapter included |
Yes |
