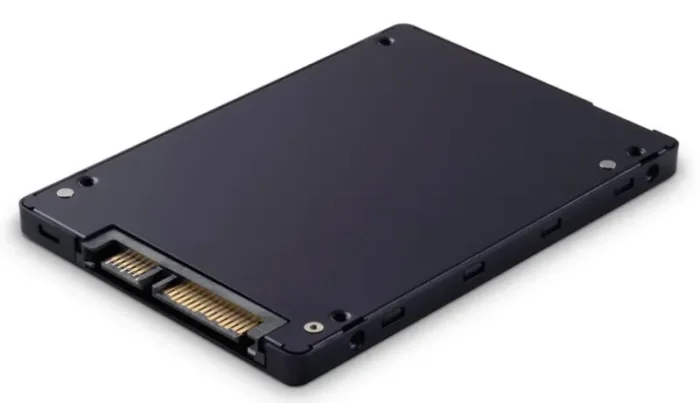

Lenovo 4XB7A10239 internal solid state drive 960 GB 2.5″ Serial ATA III
- 960 GB 2.5″ Serial ATA III
- Read speed: 540 MB/s
- Write speed: 520 MB/s
- Component for: Server/workstation
The ThinkSystem 5200 Mainstream SATA 6Gb solid-state drives (SSDs) use Micron NAND flash memory technology with a SATA 6Gbps interface to provide an affordable solution for mixed read/write workloads.
This product guide provides essential presales information to understand the 5200 Mainstream SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
| Features | |
|---|---|
| Certification | Micron Green StandardBuilt with sulfur resistant resistorsCE (Europe): EN 55032 Class B, RoHSFCC: CFR Title 47, Part 15 Class BUL: UL-60950-1, 2nd EditionBSMI (Taiwan): approval to CNS 13438RCM (Australia, New Zealand): AS/NZS CISPR32 Class BKCC RRL (Korea): approval to KN 32 Class B, KN 35 Class BW.E.E.E.: Compliance with EU WEEE directive 2002/96/EC.TUV (Germany): approval to IEC60950/EN60950VCCI (Japan): 2015-04 Class BIC (Canada): CISPR32 Class B: Canadian ICES-003:2016 |
| Mean time between failures (MTBF) | 3000000 h |
| Maximum write (4KB) | 75000 IOPS |
| Maximum read (4KB) | 95000 IOPS |
| Write speed | 520 MB/s |
| Read speed | 540 MB/s |
| Data transfer rate | 6 Gbit/s |
| Component for | Server/workstation |
| Interface | Serial ATA III |
| SSD form factor | 2.5″ |
| SSD capacity | 960 GB |
| Weight & dimensions | |
|---|---|
| Weight | 70 g |
| Height | 7 mm |
| Depth | 100 mm |
| Width | 70 mm |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 – 85 °C |
| Operating temperature (T-T) | 0 – 70 °C |
| Other features | |
|---|---|
| Product colour | Black |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
