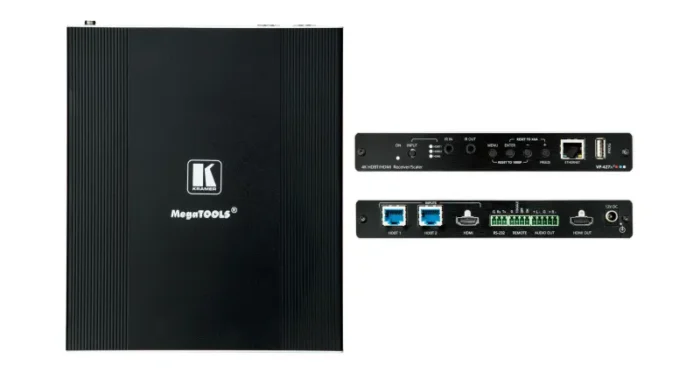

Kramer Electronics VP-427X2 video scaler
- 2 HDBT and 1 HDMI inputs
- Resolutions up to 4K@60Hz (4:4:4)
- Auto–switching inputs
- Ethernet, IR, RS–232 control and tunneling
- CEC auto display control
- HDCP 2.2 & 1.4 compliant
4K HDR HDBT Receiver / Scaler Tool with HDBaseT and HDMI Inputs
VP−427X2 is a high−performance auto−switcher/scaler receiver with 2 HDBaseT inputs and a local HDMI input for 4K HDMI™ over extended−reach HDBaseT. It supports automatic and manual glitch−free switching between the 3 inputs, and up− or down−scaling to any resolution up to 4K@60Hz (4:4:4). The output scaling automatically matches the resolution of the HDMI display on the output, or it can be manually set by the user. VP−427X2 enables extending video signals up to 180m over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.
| Features |
| Control type |
Buttons |
| LED indicators |
Yes |
| On/off switch |
No |
| Built-in display |
No |
| Rack mounting |
Yes |
| Scaled resolutions |
640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1280 x 768, 1280 x 800, 1360 x 768, 1400 x 1050, 1440 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1200, 2048 x 1080, 2560 x 1440 |
| Housing material |
Aluminium |
| Product colour |
Black |
| Video |
| HDCP version |
1.4/2.2 |
| HDCP |
Yes |
| Supported chroma subsampling |
4:4:4, 4:2:0 |
| Colour depth |
8 bit |
| Maximum refresh rate |
60 Hz |
| Audio |
| Signal-to-Noise Ratio (SNR) |
95 dB |
| Impedance |
500 Ω |
| Ports & interfaces |
| AC (power) in |
Yes |
| RJ-45 ports quantity |
2 |
| USB 2.0 ports quantity |
1 |
| RS-232 input ports |
1 |
| HDMI version |
2.0 |
| Number of HDMI outputs |
1 |
| HDMI in |
1 |
| Network |
| Ethernet LAN data rates |
100 Mbit/s |
| Power |
| AC adapter input current |
2.1 A |
| AC adapter input voltage |
12 V |
| Weight & dimensions |
| Weight |
1.1 kg |
| Height |
25.4 mm |
| Depth |
145 mm |
| Width |
187.5 mm |
| Technical details |
| Compliance certificates |
RoHS, WEEE |
| Operational conditions |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Packaging data |
| Package type |
Box |
| Package weight |
1.7 kg |
| Package height |
27 mm |
| Package depth |
212 mm |
| Package width |
351 mm |
