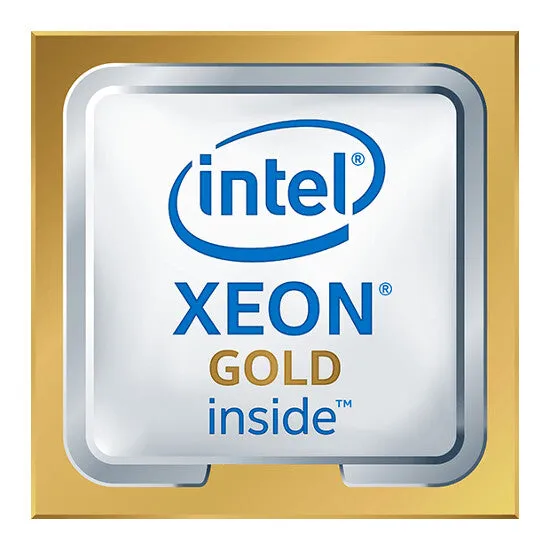

Intel Xeon 6150 processor 2.7 GHz 24.75 MB L3
- Intel® Xeon® Gold 6150 2.7 GHz
- 24.75 MB L3 LGA 3647 (Socket P)
- Processor cores: 18 14 nm 64-bit 165 W
- Maximum internal memory supported by processor: 768 GB DDR4-SDRAM
Intel® AES New Instructions (Intel® AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.
Intel® VT-x with Extended Page Tables (EPT), also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Extended Page Tables in Intel® Virtualization Technology platforms reduces the memory and power overhead costs and increases battery life through hardware optimization of page table management.
Intel® vPro™ Technology is a set of security and manageability capabilities built into the processor aimed at addressing four critical areas of IT security: 1) Threat management, including protection from rootkits, viruses, and malware 2) Identity and web site access point protection 3) Confidential personal and business data protection 4) Remote and local monitoring, remediation, and repair of PCs and workstations.
Processor |
Processor ARK ID |
120490 |
Processor codename |
Skylake |
Stepping |
H0 |
Thermal Design Power (TDP) |
165 W |
Processor cache type |
L3 |
Processor cache |
24.75 MB |
Processor boost frequency |
3.7 GHz |
Processor operating modes |
64-bit |
Processor threads |
36 |
Component for |
PC |
Cooler included |
No |
Box |
No |
Processor lithography |
14 nm |
Processor socket |
LGA 3647 (Socket P) |
Processor cores |
18 |
Processor base frequency |
2.7 GHz |
Processor model |
6150 |
Processor generation |
1st Generation Intel® Xeon® Scalable |
Processor family |
Intel® Xeon® Gold |
Processor manufacturer |
Intel |
Memory |
ECC |
Yes |
Memory channels |
Hexa-channel |
Memory clock speeds supported by processor |
2666 MHz |
Memory types supported by processor |
DDR4-SDRAM |
Maximum internal memory supported by processor |
768 GB |
Graphics |
On-board graphics card |
No |
Features |
Commodity Classification Automated Tracking System (CCATS) |
G077159 |
Export Control Classification Number (ECCN) |
5A992C |
Scalability |
S4S |
Embedded options available |
No |
PCI Express CEM revision |
3.0 |
Supported instruction sets |
SSE4.2, AVX, AVX 2.0, AVX-512 |
PCI Express slots version |
3.0 |
Maximum number of PCI Express lanes |
48 |
Market segment |
Desktop |
Execute Disable Bit |
Yes |
Processor special features |
Intel VT-x with Extended Page Tables (EPT) |
Yes |
Intel 64 |
Yes |
Intel Virtualization Technology (VT-x) |
Yes |
Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
AVX-512 Fused Multiply-Add (FMA) units |
2 |
Intel® Volume Management Device (VMD) |
Yes |
Mode-based Execute Control (MBE) |
Yes |
Intel TSX-NI |
Yes |
Intel Turbo Boost Max Technology 3.0 |
No |
Intel® Run Sure Technology |
Yes |
Intel® Optane™ Memory Ready |
No |
Intel® vPro™ Platform Eligibility |
Yes |
Intel TSX-NI version |
1.00 |
Conflict-Free processor |
Yes |
Intel® Transactional Synchronization Extensions |
Yes |
Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
Intel® Turbo Boost Technology |
2.0 |
Intel® AES New Instructions (Intel® AES-NI) |
Yes |
Intel Trusted Execution Technology |
Yes |
Intel® Speed Shift Technology |
Yes |
Enhanced Intel SpeedStep Technology |
Yes |
General |
Product family |
Xeon |
Operational conditions |
Tcase |
89 °C |
Logistics data |
Harmonized System (HS) code |
8542310001 |
Technical details |
Processor brand name |
Intel Xeon GoldIntel Xeon Gold Processor |
Last change |
63903513 |
Product family |
Intel Xeon Processors |
Launch date |
Q3’17 |
Status |
Launched |
Memory speed (max) |
2666 MHz |
Number of UPI links |
3 |
Intel® Run Sure Technology version |
1.00 |
Intel® Volume Management Device (VMD) version |
1.00 |
Mode-based Execute Control (MBE) version |
1.00 |
Maximum memory |
768 GB |
Intel® Speed Shift Technology version |
1.00 |
Processor cache |
25344 KB |
Supported memory types |
DDR4-SDRAM |
Product type |
Processor |
Weight & dimensions |
Processor package size |
76mm x 56.5mm |
Other features |
Maximum internal memory |
768 GB |
