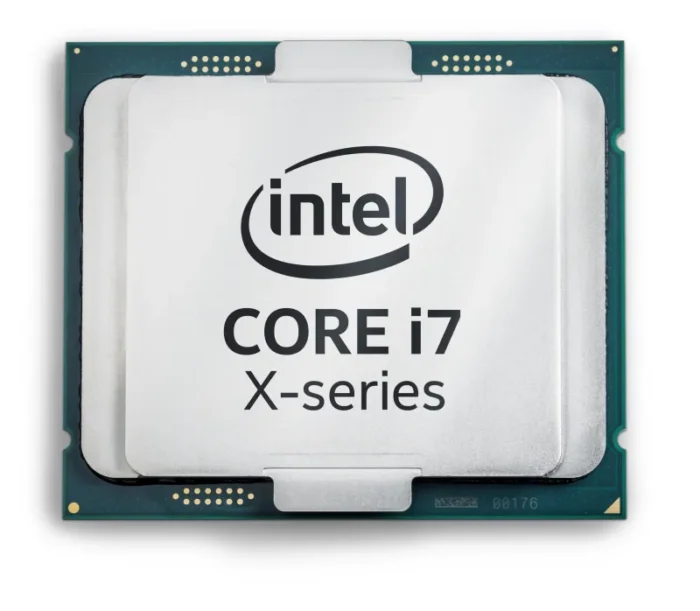

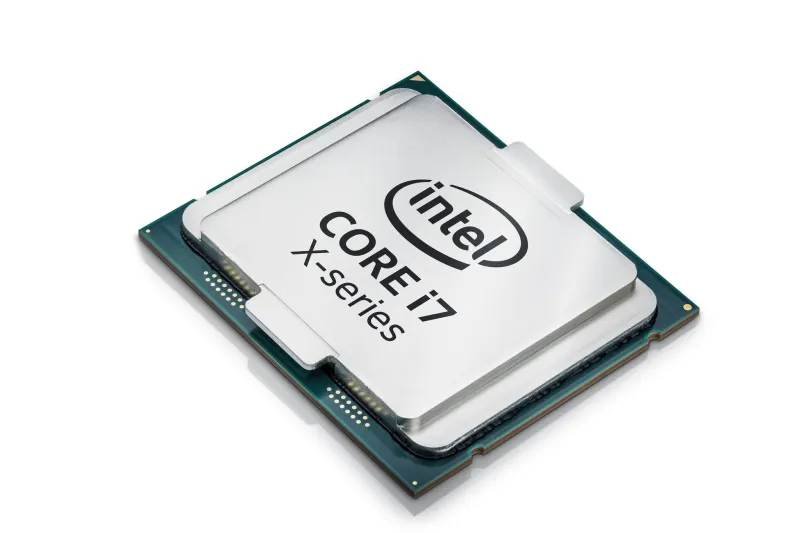

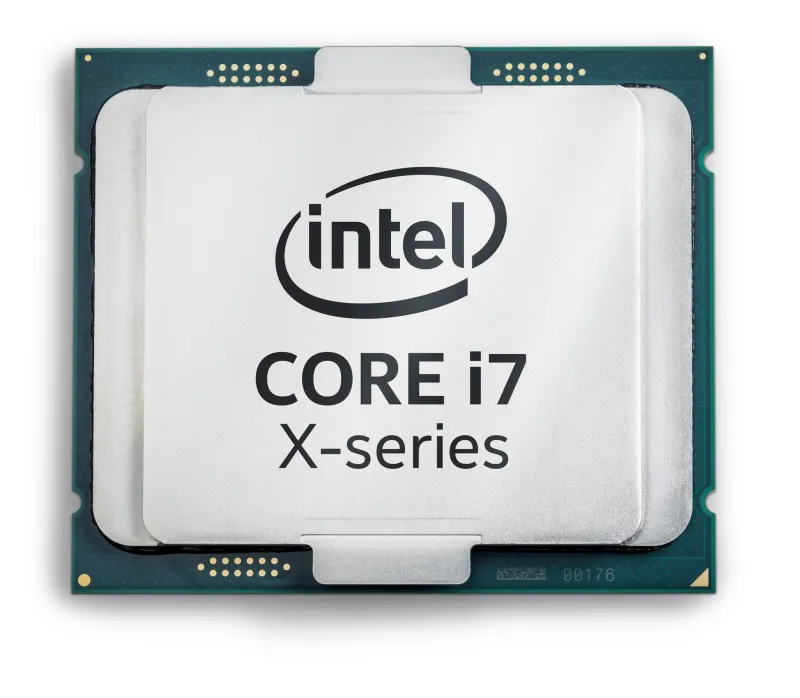

Intel Core i7-7800X processor 3.5 GHz 8.25 MB L3
- Intel® Core™ i7 X-series i7-7800X 3.5 GHz
- 8.25 MB L3 LGA 2066 (Socket R4)
- Processor cores: 6 14 nm 64-bit 140 W
- Maximum internal memory supported by processor: 128 GB DDR4-SDRAM
Intel® Optane™ Memory Supported
Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration.
Intel® Turbo Boost Technology
Intel® Turbo Boost Technology dynamically increases the processor’s frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.
Intel® Hyper-Threading Technology
Intel® Hyper-Threading Technology (Intel® HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.
Intel® AES New Instructions
Intel® AES New Instructions (Intel® AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.
| Processor | |
|---|---|
| Generation | 7th Generation |
| Processor ARK ID | 123589 |
| Processor code | SR3L4 |
| Processor codename | Skylake |
| Memory bandwidth supported by processor (max) | 77 GB/s |
| Bus type | DMI3 |
| Stepping | U0 |
| Thermal Design Power (TDP) | 140 W |
| Processor cache type | L3 |
| Processor cache | 8.25 MB |
| Processor boost frequency | 4 GHz |
| Processor operating modes | 64-bit |
| System bus rate | 8 GT/s |
| Processor threads | 12 |
| Component for | PC |
| Cooler included | No |
| Box | No |
| Processor lithography | 14 nm |
| Processor socket | LGA 2066 (Socket R4) |
| Processor cores | 6 |
| Processor base frequency | 3.5 GHz |
| Processor model | i7-7800X |
| Processor generation | 7th gen Intel® Core™ i7 |
| Processor family | Intel® Core™ i7 X-series |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| ECC | No |
| Memory channels | Quad-channel |
| Memory clock speeds supported by processor | 2400 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Maximum internal memory supported by processor | 128 GB |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Features | |
|---|---|
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| Export Control Classification Number (ECCN) | 5A992C |
| Scalability | 1S |
| Embedded options available | No |
| PCI Express CEM revision | 3.0 |
| CPU configuration (max) | 1 |
| Thermal solution specification | PCG 2017X |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0, AVX-512 |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 28 |
| Market segment | Desktop |
| Execute Disable Bit | Yes |
| Processor special features | |
|---|---|
| Virtual Reality (VR) ready | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| AVX-512 Fused Multiply-Add (FMA) units | 2 |
| Intel® Optane™ Memory Ready | Yes |
| Conflict-Free processor | Yes |
| Intel® Turbo Boost Technology 2.0 frequency | 4 GHz |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| General | |
|---|---|
| Product family | Core |
| Product series | X |
| Operational conditions | |
|---|---|
| Tjunction | 100 °C |
| Technical details | |
|---|---|
| Bus bandwidth | 8 |
| Bus type units | GT/s |
| Processor brand name | Intel Core i7 X-seriesIntel Core i7 X-series processor |
| Last change | 63903513 |
| Product family | Intel Core Processors |
| Launch date | Q2’17 |
| Status | Discontinued |
| Maximum memory | 128 GB |
| Bus speed | 8 GT/s |
| Processor cache | 8448 KB |
| Supported memory types | DDR4-SDRAM |
| Product type | Processor |
| Packaging data | |
|---|---|
| Package type | Retail box |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 8542310001 |
| Other features | |
|---|---|
| Maximum internal memory | 128 GB |
