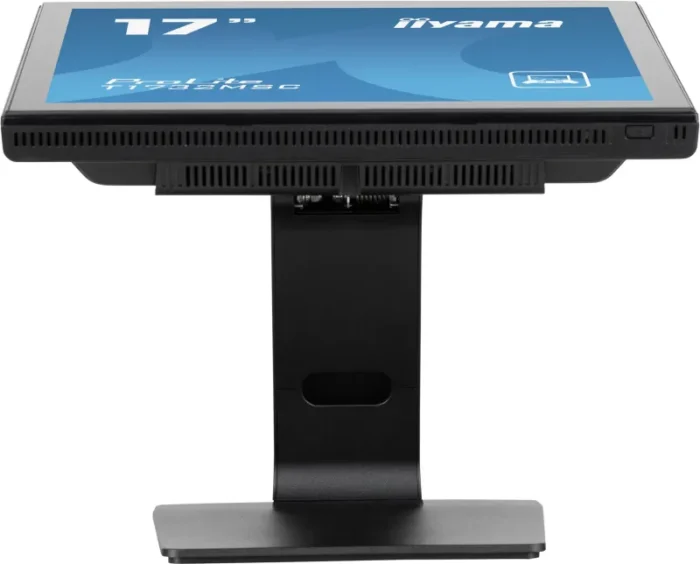

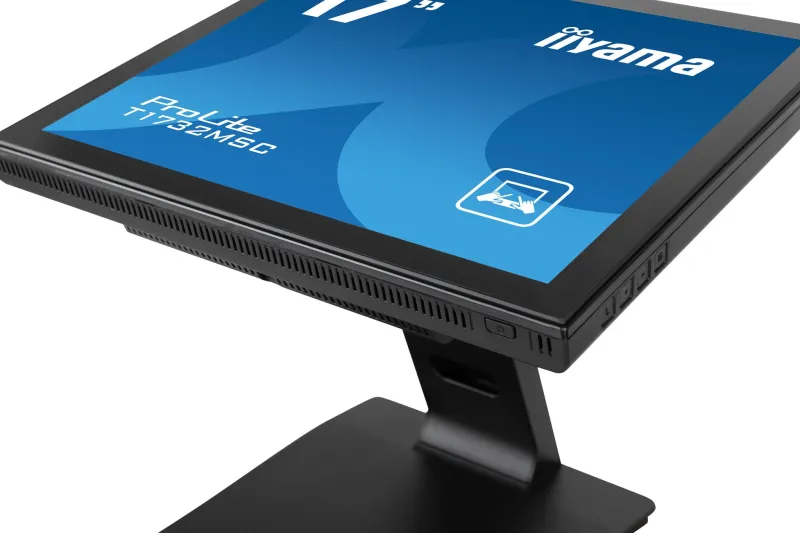

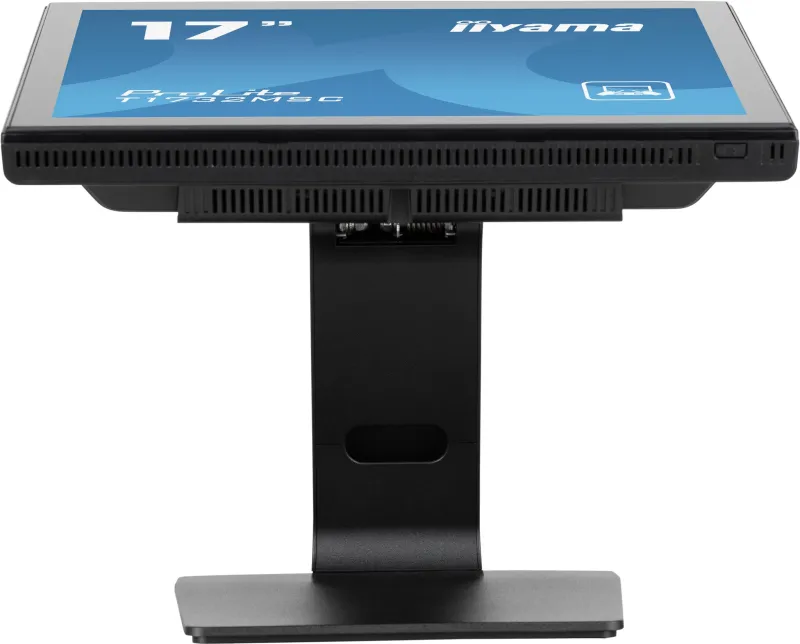

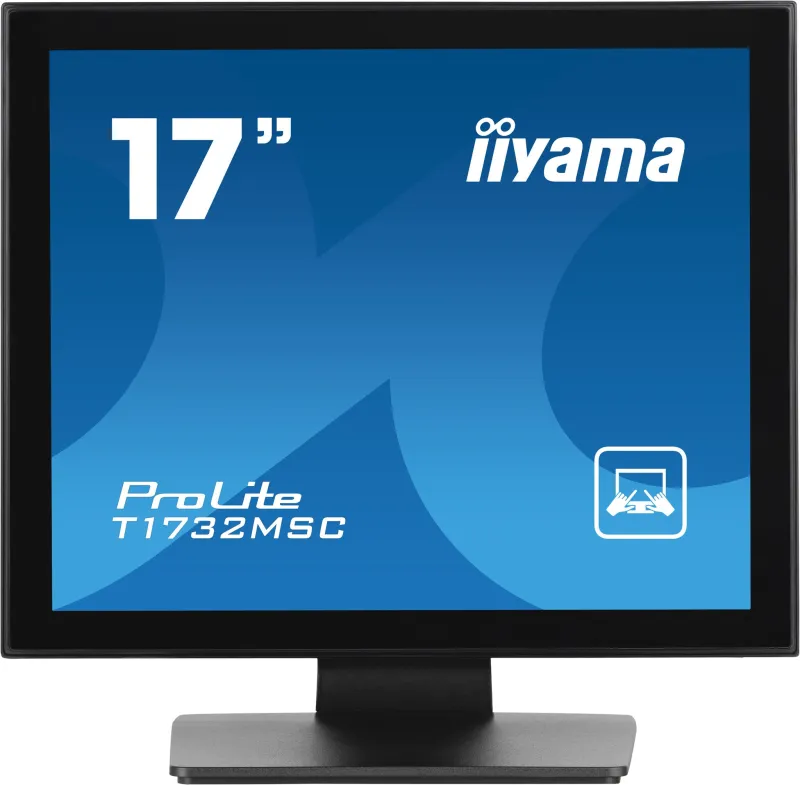

iiyama ProLite T1732MSC-B1SAG computer monitor 43.2 cm (17″) 1280 x 1024 pixels Full HD LED Touchscreen Tabletop Black
- Touchscreen 43.2 cm (17″) LED TN
- Full HD 1280 x 1024 pixels 5:4
- 5 ms 250 cd/m² 1000:1
- E 12 kWh 20 W
17″ Projective Capacitive 10pt touch screen with AG-coating
The ProLite T1732MSC-B1SAG 17″ multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The anti-glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. The touch function remains unaffected even if the glass is scratched. A solid and steady base supports the touchscreen with an adjustable stand offering full 90 degree positioning angles. Menu Buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the touchscreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours.
TOUCH TECHNOLOGY – CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
AG COATING
The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.
IP54
The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.
| Display | |
|---|---|
| Display diagonal (metric) | 43 cm |
| Viewable size, vertical | 33.8 cm |
| Viewable size, horizontal | 27.1 cm |
| Horizontal scan range | 31 – 80 kHz |
| Pixel pitch | 0.264 x 0.264 mm |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 160° |
| Viewing angle, horizontal | 170° |
| Contrast ratio (typical) | 1000:1 |
| Screen shape | Flat |
| Display surface | Matt |
| Response time | 5 ms |
| Display brightness (typical) | 250 cd/m² |
| Display brightness (peak) | 215 cd/m² |
| Number of simultaneous touchpoints | 10 |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Touchscreen type | Tabletop |
| Backlight type | LED |
| Panel type | TN |
| HD type | Full HD |
| Touchscreen | Yes |
| Display technology | LED |
| Native aspect ratio | 5:4 |
| Display resolution | 1280 x 1024 pixels |
| Display diagonal | 43.2 cm (17″) |
| Performance | |
|---|---|
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| Built-in camera | No |
| RMS rated power | 2 W |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Glass thickness | 1.2 mm |
| Feet colour | Black |
| Product colour | Black |
| Market positioning | Business |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| HDCP | Yes |
| Headphone outputs | 1 |
| Audio output | Yes |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Built-in USB hub | No |
| Ergonomics | |
|---|---|
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese |
| On Screen Display (OSD) | Yes |
| Tilt angle range | 5 – 90° |
| Tilt adjustment | Yes |
| Cable management | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| European Product Registry for Energy Labelling (EPREL) code | 1518684 |
| Energy efficiency scale | A to G |
| Power supply type | External |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 – 240 V |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (typical) | 20 W |
| Energy consumption (SDR) per 1000 hours | 12 kWh |
| Energy efficiency class (SDR) | E |
| Weight & dimensions | |
|---|---|
| Weight (with stand) | 4.9 kg |
| Height (with stand) | 378 mm |
| Depth (with stand) | 240 mm |
| Width (with stand) | 387 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Quick start guide | Yes |
| Power adapter included | Yes |
| Cables included | Audio, DisplayPort, HDMI, Power, USB |
| Stand included | Yes |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | ErP |
| General | |
|---|---|
| Product family | ProLite |
| Other features | |
|---|---|
| Compliance certificates | CE, EAC, REACH, RoHS, UKCA, WEEE, cUL |
| International Protection (IP) code | IP54 |
