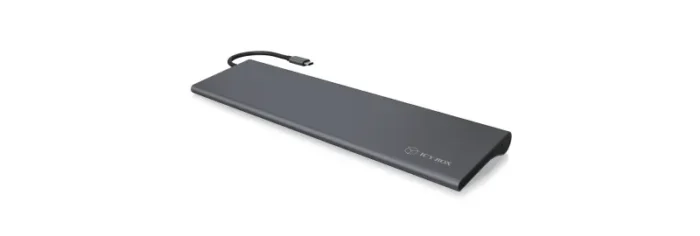

ICY BOX IB-DK2102-C Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Anthracite, Black

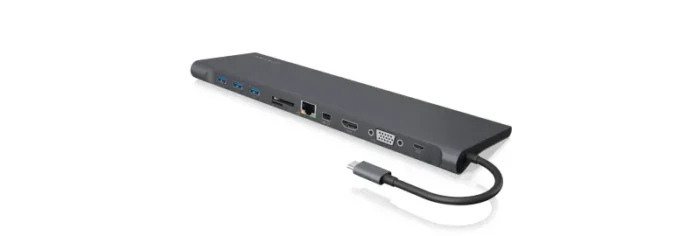

- CONNECTION VERSATILITY: Supports 3x Type-A USB 3.0, 1x HDMI, 1x VGA, 1x Mini DisplayPort, 1x card reader for SD/microSD cards, 1x Gigabit LAN RJ45, 1x audio input/output and a USB Type-C charging port

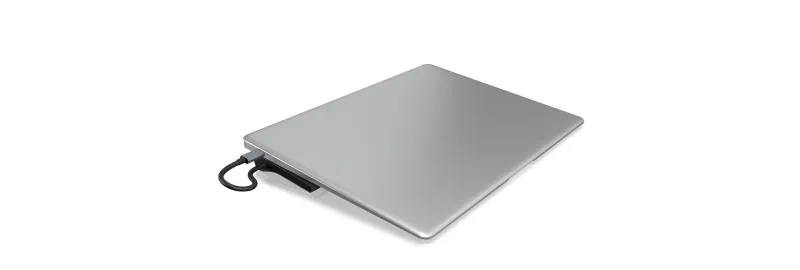

- ERGONOMIC: The shape of the docking station was created especially for laptops so that you can place them on the rear edge. This provides an ergonomic angle for typing and efficient cooling
- POWER DELIVERY: The Type-C connector of the docking station serves as a pure charging port (no data transfer) with a power of up to 100 W (20 V@5 A). A power supply unit must be connected to the laptop for this function
- PLUG & PLAY: The integrated Type-C cable allows users to turn their laptop into a multi-display workstation without the need to install any drivers
- VIDEO RESOLUTION: HDMI & Mini DisplayPort up to 3840×2160@30 Hz. VGA up to 1920×1200@60 Hz. Simultaneous video output from Mini DP & HDMI or Mini DP & VGA (2x 1920×1080@60 Hz)
Connection desires
Notebooks and other mobile computers are getting ever smaller but this comes at the expense of connectivity. The DockingStation IB-DK2102-C can permanently alleviate the lack of connection. 3x USB 3.0, 1x Gigabit LAN, 1x DisplayPort™, 1x HDMI®,1x VGA, 1x USB Type-C™ PD 2.0, 1x SD & microSD card reader and a headphone combo jack are provided.
Totally visual
Three different video interfaces are available, where two monitors can be operated at the same time. They enable you to connect a Mini DP and HDMI® or Mini DP and VGA device simultaneously.
The perfect position
The perfect symbiosis of stylish appearance, the latest technology, and compact size. The high-grade aluminum housing is not only appealing, but also offers comfortable access to the most important expansion ports and, thanks to its shape, at the same time, can serve as a riser for the notebook.
| Ports & interfaces | |
|---|---|
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| Microphone in | No |
| Mini DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB Power Delivery up to | 100 W |
| USB Power Delivery (USB PD) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Performance | |
|---|---|
| Country of origin | China |
| UASP support | Yes |
| LED indicators | Yes |
| Housing material | Aluminium, Plastic |
| Rubber feet | Yes |
| Number of displays supported | 3 |
| Maximum analog resolution | 1920 x 1200 pixels |
| Maximum digital resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Data transfer rate | 5 Gbit/s |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Card reader integrated | Yes |
| Product colour | Anthracite, Black |
| Power | |
|---|---|
| Output voltage | 5 V |
| Output current | 1.5 A |
| Power source type | USB |
| Software | |
|---|---|
| Mac operating systems supported | Yes |
| Windows operating systems supported | Windows 10 |
| Weight & dimensions | |
|---|---|
| Weight | 250 g |
| Height | 18 mm |
| Depth | 80 mm |
| Width | 280 mm |
| Packaging data | |
|---|---|
| Package weight | 370 g |
| Package height | 340 mm |
| Package depth | 25 mm |
| Package width | 130 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|
| Manual | Yes |
| Logistics data | |
|---|---|
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case width | 280 mm |
| Master (outer) case length | 420 mm |
| Master (outer) case height | 300 mm |
| Harmonized System (HS) code | 84733020 |
| Master (outer) case gross weight | 8.5 kg |
| Other features | |
|---|---|
| Chipset | VL100, VL812, RLT8153, STDP4320 |
| Cable length | 0.15 m |
