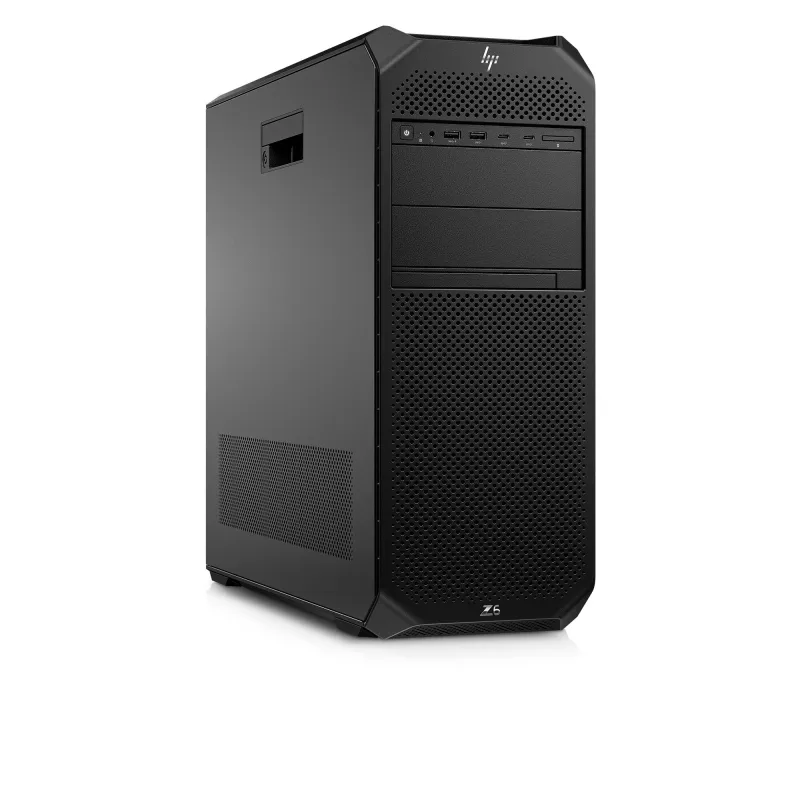

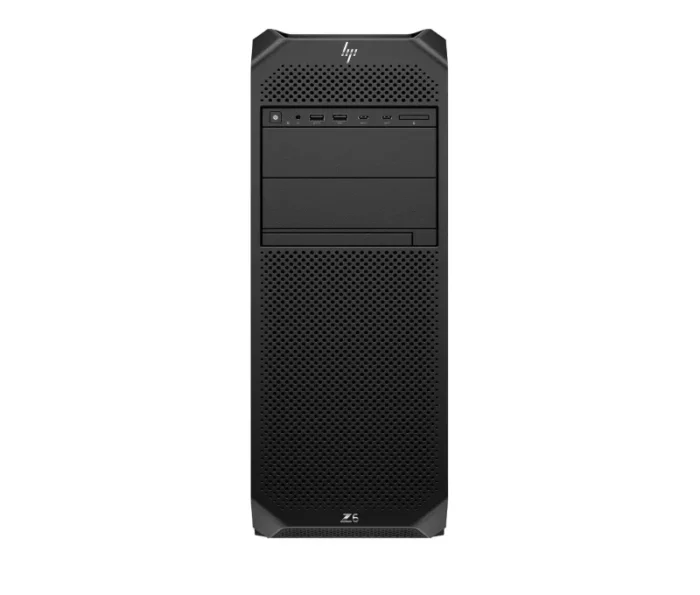

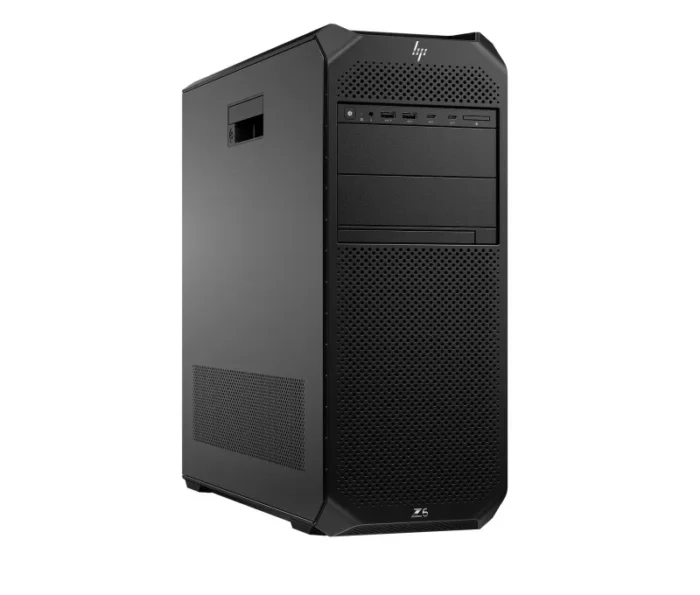

HP Z6 G5 Intel Xeon W W5-3435X 64 GB DDR5-SDRAM 2 TB SSD NVIDIA RTX A4000 Windows 11 Pro Tower Workstation Black
- Intel Xeon W5-3435X (up to 4.7 GHz with Intel Turbo Boost Technology, 45 MB L3 cache, 16 cores, 32 threads)
- Windows 11 Pro
- NVIDIA RTX™️ A4000 (16 GB GDDR6 dedicated)
- 64 GB DDR5-4800 MT/s (2 x 32 GB), 2 TB HP Z Turbo Drive PCIe NVMe™ TLC M.2 SSD
Unleash extreme graphics performance
Accelerate AI and graphics-heavy projects—from data visualization and machine learning to real-time ray tracing and advanced visual effects. With powerful single socket technology and up to 3 high-end GPUs, the Z6 AI workstation is ideal for demanding workflows, with plenty of room to expand.
| Processor |
| Processor cache type |
L3 |
| Processor cache |
45 MB |
| Processor boost frequency |
4.7 GHz |
| Processor threads |
32 |
| Processor cores |
16 |
| Processor model |
W5-3435X |
| Processor family |
Intel Xeon W |
| Processor manufacturer |
Intel |
| Memory |
| ECC |
No |
| Non-ECC |
Yes |
| Memory clock speed |
4800 MHz |
| Memory layout (slots x size) |
2 x 32 GB |
| Internal memory type |
DDR5-SDRAM |
| Internal memory |
64 GB |
| Storage |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express |
| NVMe |
Yes |
| SSD capacity |
2 TB |
| SSD memory type |
TLC |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
2 TB |
| Number of storage drives installed |
1 |
| Storage media |
SSD |
| Total storage capacity |
2 TB |
| Graphics |
| Number of discrete graphics cards |
1 |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
16 GB |
| Discrete graphics card model |
NVIDIA RTX A4000 |
| Discrete GPU manufacturer |
NVIDIA |
| On-board graphics card |
Yes |
| Discrete graphics card |
Yes |
| Network |
| Wi-Fi |
No |
| Ethernet LAN |
No |
| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| USB4 Gen 2×2 ports quantity |
2 |
| USB 3.2 Gen 2×2 Type-C ports quantity |
2 |
| USB Power Delivery (USB PD) |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
6 |
| Design |
| Introduction year |
2023 |
| Product colour |
Black |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Placement supported |
Vertical |
| Chassis type |
Tower |
| Performance |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Password protection type |
BIOS, Power on, User |
| Password protection |
Yes |
| Audio chip |
Realtek ALC3205-CG |
| Motherboard chipset |
Intel W790 |
| Market positioning |
Performance |
| Product type |
Workstation |
| Software |
| Pre-installed software |
HP Performance Advisor; HP Support Assistant; HP PC Hardware Diagnostics Windows; HP Image Assistant; HP Manageability Integration Kit; HP Anyware; HP Services Scan; HP Data Science Stack Manager |
| Operating system installed |
Windows 11 Pro |
| Brand-specific features |
| HP GTIN (EAN/UPC) |
197498282985 |
| HP segment |
Business |
| HP Management tools |
HP Driver Packs; HP System Software Manager (download); HP BIOS Configuration Utility (download); HP Smart Support |
| HP Security tools |
Full volume encryption; HP Secure Erase; Kensington lock slot; Secure authentication; TPM 2.0 certified; HP BIOSphere; HP Sure Run; HP Sure Click; HP Sure Sense; HP Sure Admin; HP Platform Certificate; HP Sure Start; HP Sure Recover; Self-Encrypted Drives |
| HP Support Assistant |
Yes |
| Power |
| Power supply input frequency |
50 – 60 Hz |
| Power supply input voltage |
100 – 240 V |
| Sustainability |
| Sustainable technologies and materials |
Low Halogen; 40% post-consumer recycled plastic; 25% ITE-derived closed loop plastic; Bulk packaging available; External power supply 90% efficiency; Plastic cushion inserts contain 80% recycled content; Ocean-bound plastic in system fan; 10% post-industrial recycled metal; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable |
| Weight & dimensions |
| Package weight |
17.2 kg |
| Package height |
593 mm |
| Package depth |
610 mm |
| Package width |
313 mm |
| Weight |
12.8 kg |
| Height |
444.5 mm |
| Depth |
464.8 mm |
| Width |
168.9 mm |
| Packaging content |
| Keyboard included |
Yes |
| Display included |
No |
| Carbon footprint |
| Total carbon footprint (kg of CO2e) |
860 |
| Carbon emissions, manufacturing (kg of CO2e) |
304 |
| Carbon emissions, logistics (kg of CO2e) |
4 |
| Carbon emissions, end-of-life (kg of CO2e) |
4 |
| Total carbon emissions, w/o use phase (kg of CO2e) |
552 |
| Logistics data |
| Harmonized System (HS) code |
8471500000 |
| Technical details |
| General Product Safety Regulation (GPSR) URL |
https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true https://kaas.hpcloud.hp.com/pdf-public/pdf_5990438_en-US-1.pdf |
| Other features |
| Keyboard type |
USB |
| Graphics card interface |
PCIe x16 |
| Manufacturer warranty |
1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair. Terms and conditions vary by country. |
