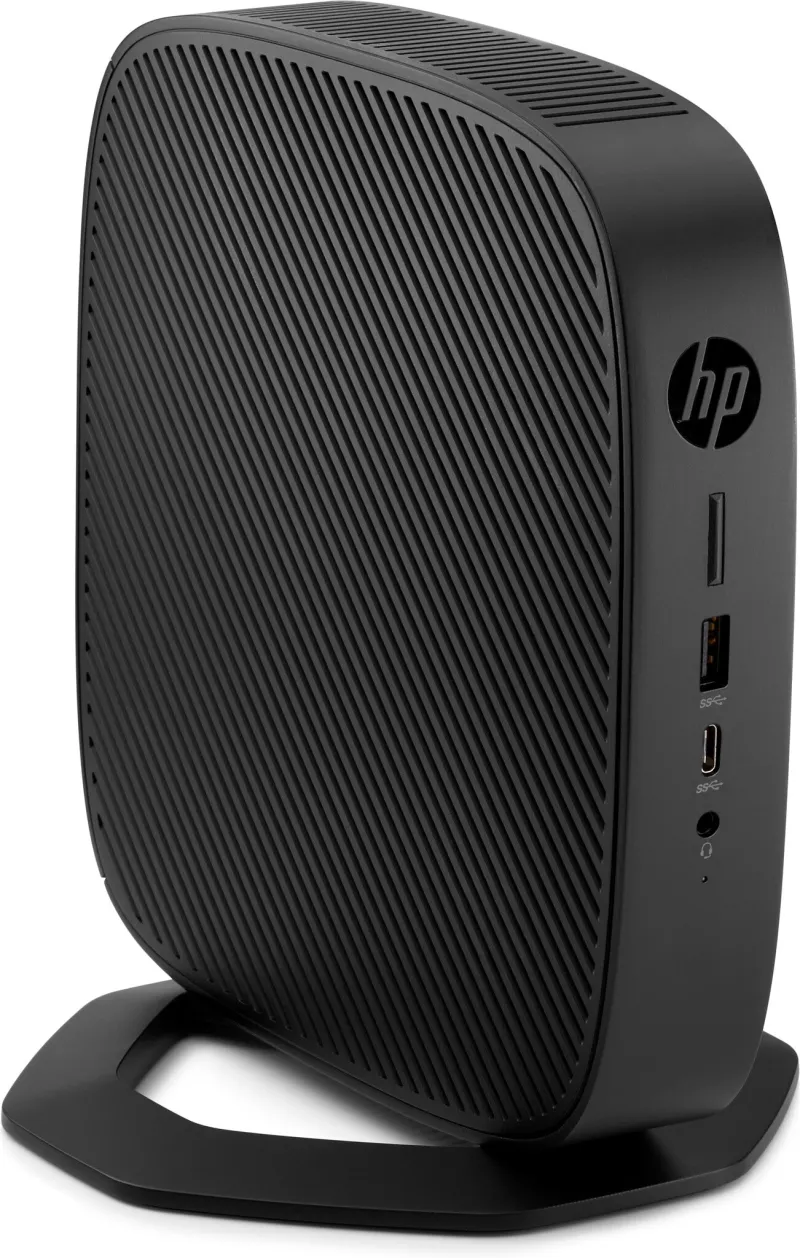

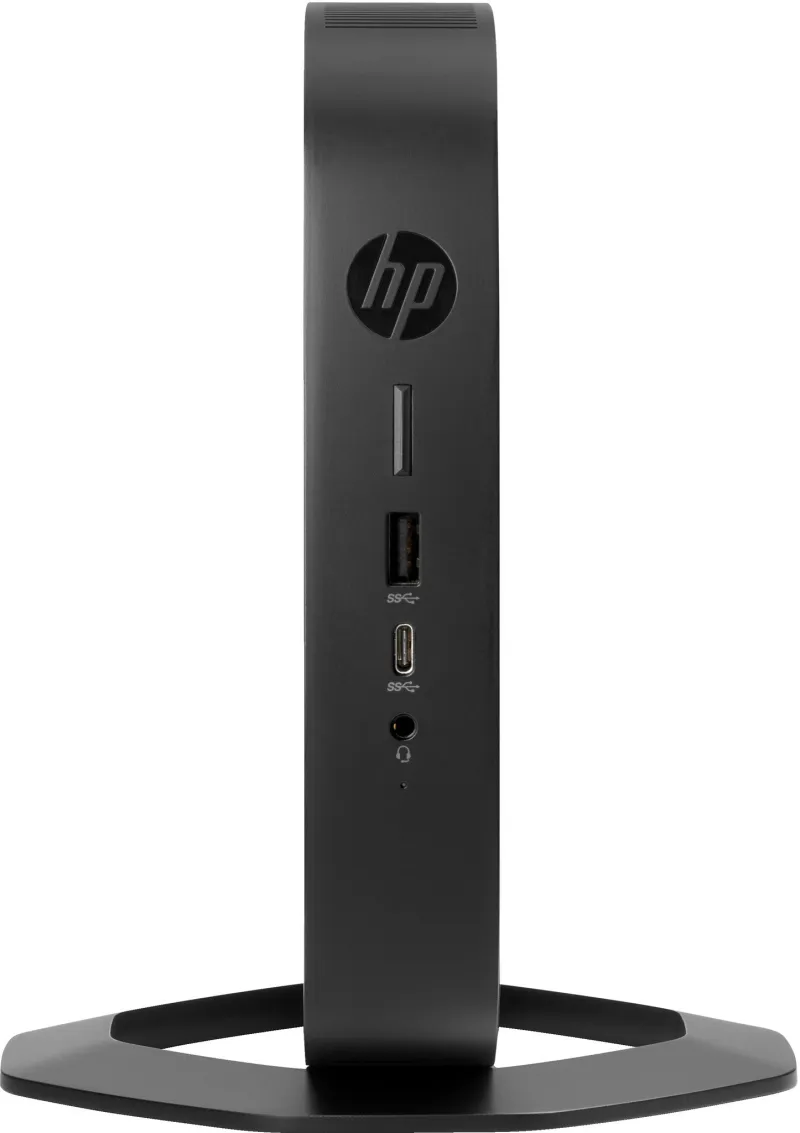

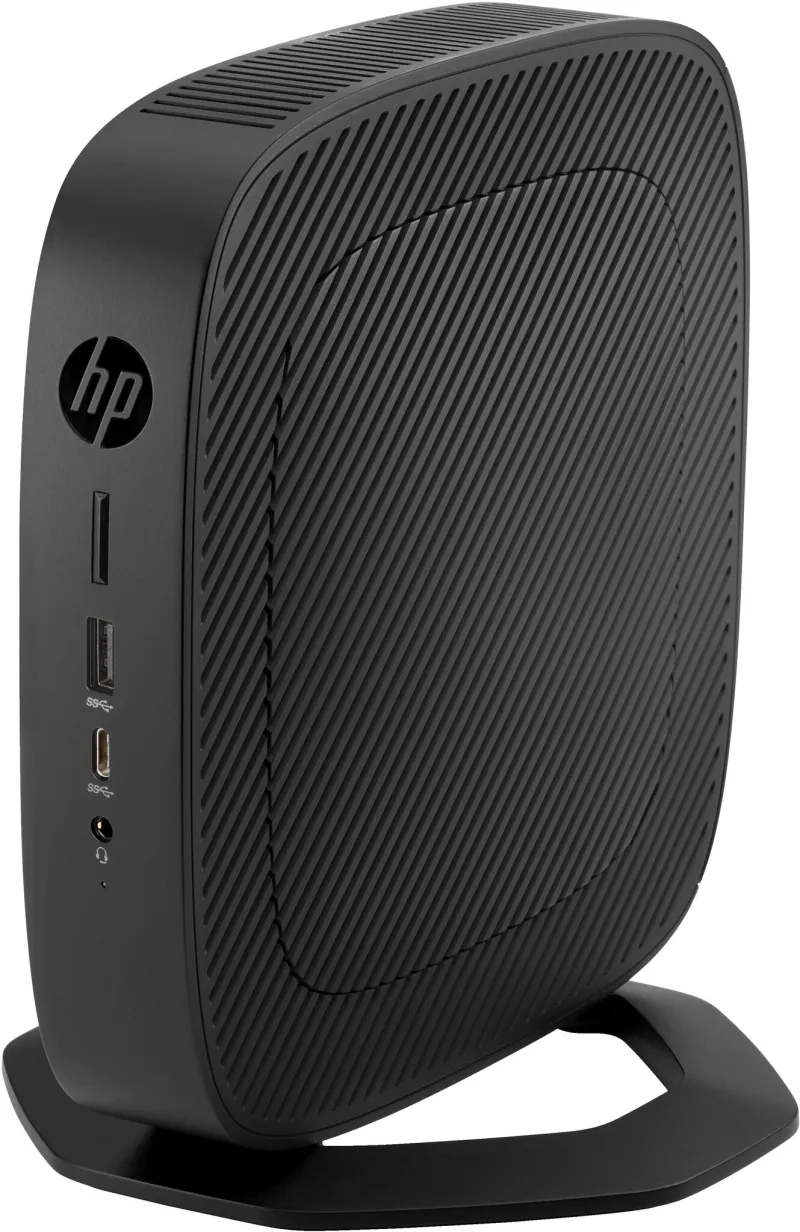

HP t540 1.5 GHz ThinPro 1.4 kg Black R1305G
- AMD Ryzen™ Embedded R1305G (1.5 GHz base clock, up to 2.8 GHz max boost clock, 4 MB L3 cache, 2 cores)
- HP ThinPro
- AMD Radeon™ Vega 3 Graphics
Simple, secure virtual desktop solution.
Transition your fleet to the cloud with the HP t540 Thin Client virtual desktop solution. Confidently deploy in confined workspaces with multiple configuration options and multi-layered security—providing effective collaboration and productivity for the end user.
| Processor |
| L3 cache |
4 MB |
| L2 cache |
1 MB |
| Processor cache |
4 MB |
| Processor boost frequency |
2.8 GHz |
| Processor cores |
2 |
| Processor threads |
4 |
| Processor model |
R1305G |
| Processor generation |
AMD Ryzen Embedded R1000 Series |
| Processor family |
AMD Ryzen Embedded |
| Processor manufacturer |
AMD |
| Processor frequency |
1.5 GHz |
| Memory |
| Maximum internal memory |
16 GB |
| Memory layout (slots x size) |
1 x 4 GB |
| Memory slots |
1x SO-DIMM |
| Memory clock speed |
2400 MHz |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
4 GB |
| Storage |
| Storage media |
eMMC |
| Total storage capacity |
32 GB |
| Graphics |
| On-board graphics card model |
AMD Radeon Vega 3 |
| Audio |
| Built-in speaker(s) |
Yes |
| Network |
| WLAN controller model |
Realtek RTL8852AE |
| WLAN controller manufacturer |
Realtek |
| Antenna type |
2×2 |
| Bluetooth version |
5.2 |
| Bluetooth |
Yes |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Ports & interfaces |
| DisplayPorts quantity |
2 |
| Combo headphone/mic port |
Yes |
| USB Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 2.0 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| Design |
| Product colour |
Black |
| Display |
| Display included |
No |
| Software |
| Operating system installed |
ThinPro |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Weight |
1.4 kg |
| Height |
200 mm |
| Depth |
200 mm |
| Width |
35 mm |
| Packaging data |
| Package weight |
1.4 kg |
| Package depth |
1400 mm |
| Brand-specific features |
| HP GTIN (EAN/UPC) |
196337639539 |
| Packaging content |
| Keyboard included |
Yes |
| Mouse included |
Yes |
| Other features |
| Keyboard type |
USB |
