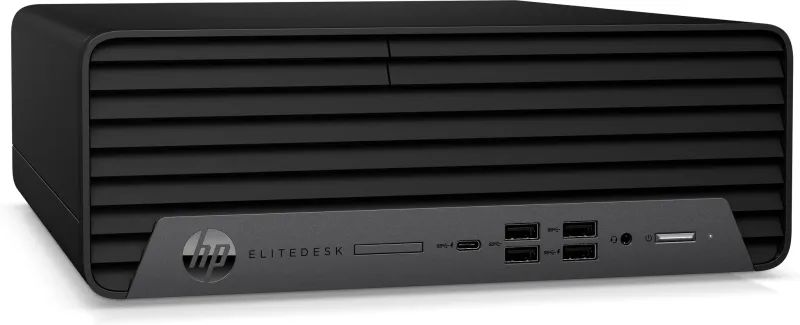

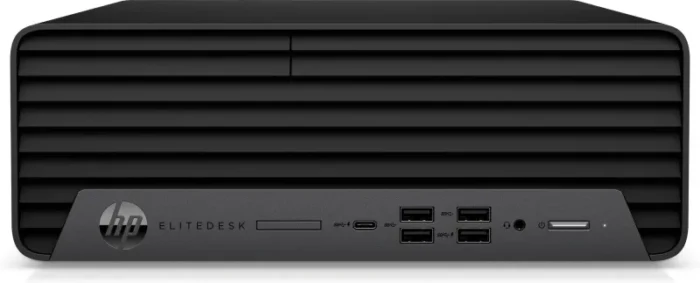

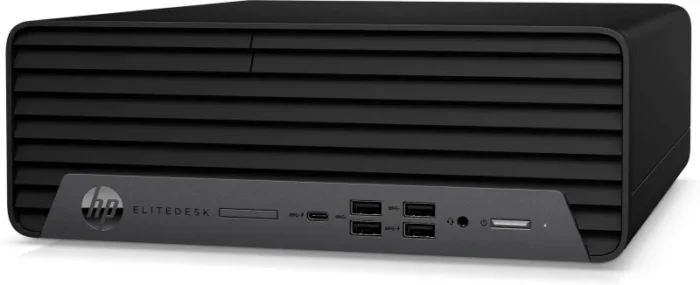

HP EliteDesk 805 G8 AMD Ryzen™ 5 PRO 5650G 16 GB DDR4-SDRAM 512 GB SSD Windows 11 Pro SFF PC Black
- AMD Ryzen™ 5 PRO 5650G (3.9 GHz base clock, up to 4.4 GHz max boost clock, 19 MB L3 cache, 6 cores)
- Windows 11 Pro
- AMD Radeon™ Graphics
- 16 GB memory; 512 GB SSD storage
Power for what comes next
The HP EliteDesk 805 Small Form Factor delivers uncompromising performance, expandability, and reliability in a space-saving design. Powered by an AMD Ryzen™ processor[2], speedy storage, and memory, this is the right PC for big jobs performed in smaller workspaces.
| Processor |
| Number of processors installed |
1 |
| Processor cache type |
L3 |
| Processor cache |
19 MB |
| Processor frequency |
3.9 GHz |
| Processor boost frequency |
4.4 GHz |
| Processor threads |
12 |
| Processor cores |
6 |
| Processor model |
5650G |
| Processor generation |
AMD Ryzen PRO 5000 Series |
| Processor family |
AMD Ryzen™ 5 PRO |
| Processor manufacturer |
AMD |
| Memory |
| Memory clock speed |
3200 MHz |
| Memory slots |
4x DIMM |
| Memory layout (slots x size) |
1 x 16 GB |
| Internal memory type |
DDR4-SDRAM |
| Maximum internal memory |
128 GB |
| Internal memory |
16 GB |
| Storage |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express, NVMe |
| NVMe |
Yes |
| SSD capacity |
512 GB |
| SSD memory type |
TLC |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Number of storage drives installed |
1 |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
512 GB |
| Graphics |
| On-board graphics card model |
AMD Radeon Graphics |
| On-board graphics card family |
AMD Radeon Graphics |
| On-board GPU manufacturer |
AMD |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| Network |
| Bluetooth version |
5.2 |
| Bluetooth |
Yes |
| Antenna type |
2×2 |
| WLAN controller model |
Realtek RTL8852AE |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| WLAN controller manufacturer |
Realtek |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| Line-out |
Yes |
| Headphone outputs |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
5 |
| USB 2.0 ports quantity |
2 |
| Expansion slots |
| PCI Express x16 slots |
1 |
| PCI Express x4 slots |
1 |
| Design |
| Country of origin |
China |
| Product colour |
Black |
| Number of 2.5″ bays |
1 |
| Number of 3.5″ bays |
1 |
| Chassis type |
SFF |
| Performance |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Password protection type |
BIOS, Power on, User |
| Password protection |
Yes |
| Audio chip |
Realtek ALC3867 |
| Motherboard chipset |
AMD PRO 565 |
| Market positioning |
Premium |
| Product type |
PC |
| Software |
| Pre-installed software |
HP Noise Cancellation Software; HP Support Assistant; Buy Office (sold separately); HP Privacy Settings; HP Desktop Support Utilities; HP QuickDrop; HP Easy Clean |
| Operating system installed |
Windows 11 Pro |
| Brand-specific features |
| HP segment |
Business |
| HP Software provided |
HP Noise Cancellation Software; HP Privacy Settings; HP Desktop Support Utilities; HP QuickDrop; HP Easy Clean |
| HP Management tools |
HP BIOS Configuration Utility (download); HP Client Catalog (download); HP Driver Packs (download); HP System Software Manager (download); HP Cloud Recovery; HP Image Assistant Gen 4; AMD DASH; HP Manageability Integration Kit |
| HP Security tools |
Power-on password (via BIOS); SATA port disablement (via BIOS); Setup password (via BIOS); Support for chassis padlocks and cable lock devices; Trusted Platform Module TPM 2.0 Embedded Security Chip (SLB9670 – Common Criteria EAL4+ Certified); Serial enable/disable (via BIOS); HP Secure Erase; HP Sure Click; HP Sure Sense; HP DriveLock and Automatic DriveLock; HP Sure Recover Gen3; HP Sure Run Gen3; HP Sure Start Gen6; HP BIOsphere Gen6; HP Client Security Manager Gen7 |
| HP Support Assistant |
Yes |
| Sustainability |
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR |
| Sustainable technologies and materials |
40% post-consumer recycled plastic; Recycled plastic cushions; Low Halogen; 80 Plus® Platinum power supplies available; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; Outside box and corrugated cushions are 100% sustainably sourced and recyclable; Ocean-bound plastic in speaker enclosure and I/O strip |
| Weight & dimensions |
| Package weight |
6.87 kg |
| Package height |
499 mm |
| Package depth |
205 mm |
| Package width |
394 mm |
| Weight |
4.89 kg |
| Height |
303 mm |
| Depth |
270 mm |
| Width |
97.5 mm |
| Packaging content |
| Keyboard included |
Yes |
| Keyboard connectivity |
Wired |
| Mouse included |
Yes |
| Display included |
No |
| General |
| Product family |
EliteDesk |
| Product series |
805 |
| Other features |
| Keyboard type |
USB |
| Number of free internal memory expansion slots |
1 |
