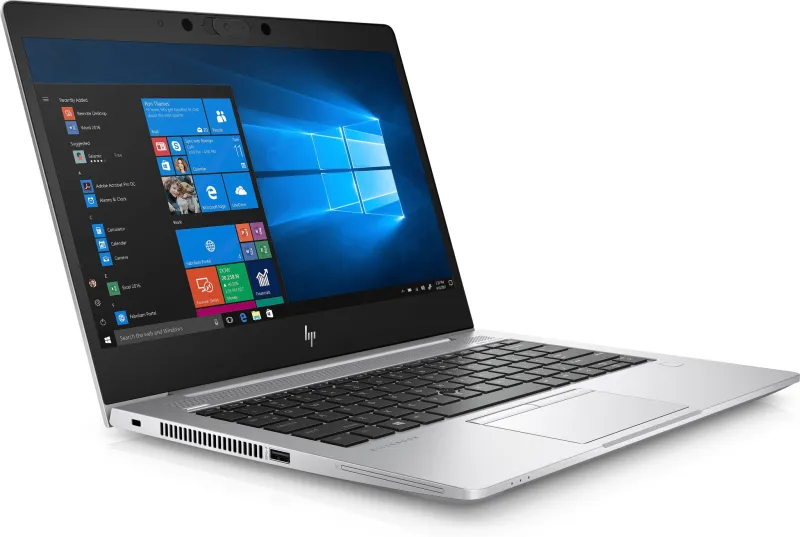

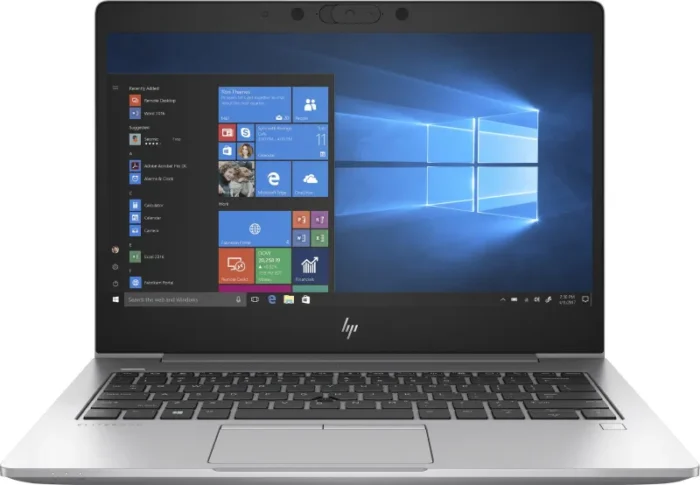

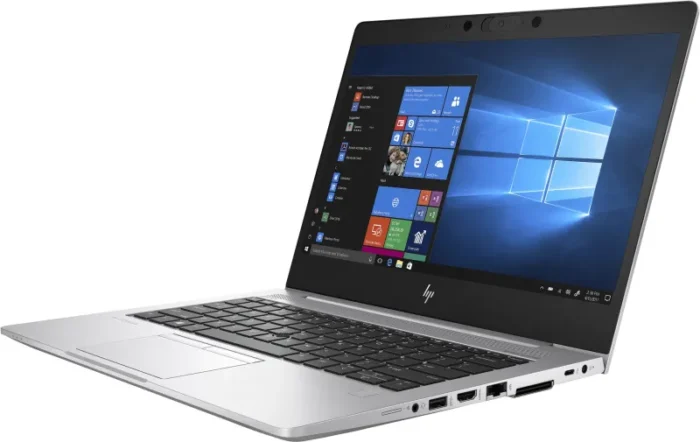

HP EliteBook 830 G6 Intel® Core™ i5 i5-8365U Laptop 33.8 cm (13.3″) Full HD 8 GB DDR4-SDRAM 256 GB SSD Wi-Fi 6 (802.11ax) Windows 10 Pro Silver
- Windows 10 Pro 64-bit
- Intel Core i5-8365U (6MB Cache, 1.6GHz)
- 33.8 cm (13.3″) Full HD 1920 x 1080 IPS
- 8GB (2400MHz) DDR4-SDRAM (1 x 8) & 256GB SSD
The standout business PC
Uniquely designed for the modern mobile professional, the HP EliteBook 830 is a highly secure and manageable PC offering powerful collaboration tools, enabling the enterprise workforce to be more productive and secure on the go or in the office.
| Design |
| Country of origin |
China |
| Market positioning |
Business |
| Form factor |
Clamshell |
| Product colour |
Silver |
| Product type |
Laptop |
| Display |
| Display diagonal (metric) |
33.8 cm |
| RGB colour space |
NTSC |
| Colour gamut |
45% |
| Dual-screen |
No |
| Display brightness |
250 cd/m² |
| Anti-glare screen |
Yes |
| Native aspect ratio |
16:9 |
| LED backlight |
Yes |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
No |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
33.8 cm (13.3″) |
| Processor |
| Maximum number of PCI Express lanes |
16 |
| PCI Express slots version |
3.0 |
| PCI Express configurations |
1×4, 2×2, 1×2+2×1, 4×1 |
| Tjunction |
100 °C |
| Configurable TDP-down |
10 W |
| Configurable TDP-down frequency |
0.8 GHz |
| Configurable TDP-up |
25 W |
| Configurable TDP-up frequency |
1.9 GHz |
| Thermal Design Power (TDP) |
15 W |
| Processor codename |
Whiskey Lake |
| Processor operating modes |
64-bit |
| Processor lithography |
14 nm |
| Processor socket |
BGA 1528 |
| Processor cache type |
L3 |
| Processor cache |
6 MB |
| System bus rate |
4 GT/s |
| Processor frequency |
1.6 GHz |
| Processor boost frequency |
4.1 GHz |
| Processor threads |
8 |
| Processor cores |
4 |
| Processor model |
i5-8365U |
| Processor generation |
8th gen Intel® Core™ i5 |
| Processor family |
Intel® Core™ i5 |
| Processor manufacturer |
Intel |
| Memory |
| ECC |
No |
| Maximum internal memory |
32 GB |
| Memory slots |
1x SO-DIMM |
| Memory layout (slots x size) |
1 x 8 GB |
| Memory clock speed |
2400 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
8 GB |
| Storage |
| Card reader integrated |
No |
| Optical drive type |
No |
| Self-Encrypting Drive (SED) |
Yes |
| SSD form factor |
M.2 |
| SSD memory type |
TLC |
| SSD capacity |
256 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
256 GB |
| Storage media |
SSD |
| Total storage capacity |
256 GB |
| Graphics |
| On-board graphics card ID |
0x3EA0 |
| On-board graphics card OpenGL version |
4.5 |
| On-board graphics card DirectX version |
12.0 |
| On-board graphics card base frequency |
300 MHz |
| Maximum on-board graphics card memory |
32 GB |
| On-board graphics card dynamic frequency (max) |
1100 MHz |
| On-board graphics card model |
Intel® UHD Graphics 620 |
| On-board graphics card family |
Intel® UHD Graphics |
| Discrete graphics card model |
Not available |
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of microphones |
3 |
| Number of built-in speakers |
2 |
| Audio system |
Bang & Olufsen |
| Camera |
| Infrared (IR) camera |
Yes |
| Front camera HD type |
HD |
| Front camera |
Yes |
| Network |
| MIMO |
Yes |
| MIMO type |
Multi User MIMO |
| Bluetooth version |
5.0 |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| WLAN controller model |
Intel Wi-Fi 6 AX200 |
| WLAN controller manufacturer |
Intel |
| Antenna type |
2×2 |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Ports & interfaces |
| Docking connector |
Yes |
| Combo headphone/mic port |
Yes |
| Thunderbolt ports quantity |
1 |
| HDMI version |
1.4 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Keyboard |
| Windows keys |
Yes |
| Numeric keypad |
No |
| Keyboard backlit |
Yes |
| Pointing device |
Clickpad |
| Software |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 Pro |
| Processor special features |
| CPU configuration (max) |
1 |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel Clear Video Technology |
Yes |
| Intel TSX-NI |
Yes |
| Intel 64 |
Yes |
| Intel Stable Image Platform Program (SIPP) |
Yes |
| Intel® Smart Response Technology |
Yes |
| Intel® Identity Protection Technology (Intel® IPT) |
Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Yes |
| Intel® Quick Sync Video Technology |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Intel® Secure Key |
Yes |
| Intel® OS Guard |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Processor package size |
46×24 mm |
| Intel® My WiFi Technology (Intel® MWT) |
Yes |
| Intel Flex Memory Access |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Execute Disable Bit |
Yes |
| Processor ARK ID |
193555 |
| Embedded options available |
No |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Supported instruction sets |
SSE4.1, SSE4.2, AVX 2.0 |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Idle States |
Yes |
| Brand-specific features |
| HP segment |
Business |
| HP front camera |
HP Webcam |
| HP speaker type |
HP Dual Speakers |
| Battery |
| Battery weight |
190 g |
| Battery life (max) |
19 h |
| Battery capacity |
50 Wh |
| Number of battery cells |
3 |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power |
| AC adapter power |
65 W |
| Security |
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Fingerprint reader |
Yes |
| Cable lock slot |
Yes |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Height |
17.7 mm |
| Depth |
229.3 mm |
| Width |
310.4 mm |
| Weight |
1.33 kg |
| General |
| Product family |
EliteBook |
| Product series |
800 |
| Packaging content |
| AC adapter included |
Yes |
| Logistics data |
| Harmonized System (HS) code |
84713000 |
