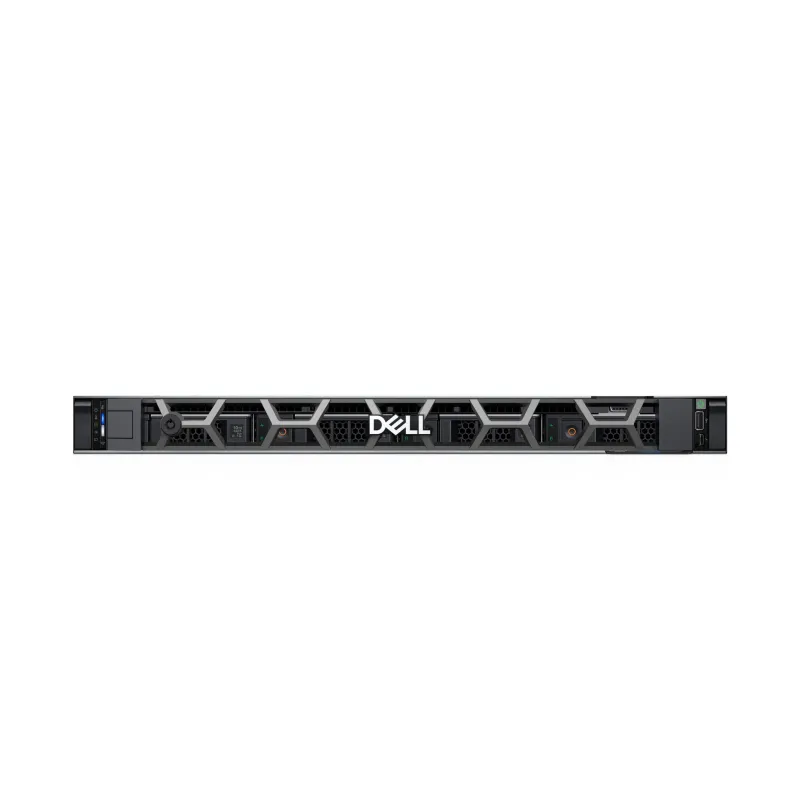

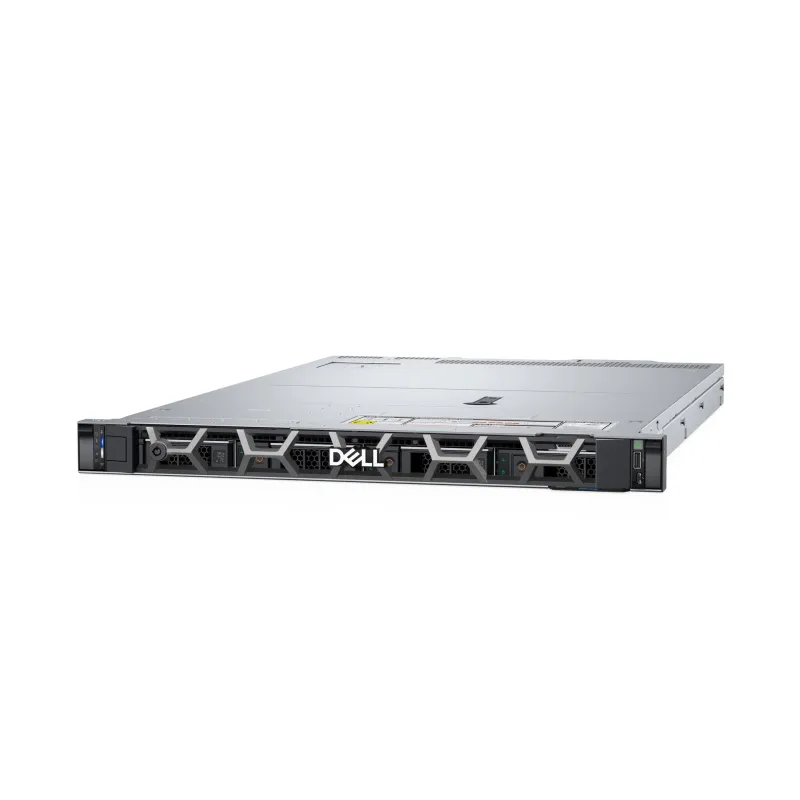

DELL PowerEdge R660xs server 480 GB Rack (1U) Intel Xeon Silver 4410Y 2 GHz 32 GB DDR5-SDRAM 700 W Windows Server 2022 Standard
- Windows Server 2022 Standard
- Intel Xeon Silver 4410Y (30MB Cache, 2GHz)
- 32GB DDR5-SDRAM (1 x 32) & 480GB SSD
- iDRAC9, Enterprise 16G
The perfect blend of performance and density
Run the most popular IT applications easily with this air-cooled server that is the best choice for balanced and dense compute.
| Processor |
| Maximum internal memory supported by processor |
512 GB |
| Thermal Design Power (TDP) |
150 W |
| Number of processors installed |
1 |
| Processor cache |
30 MB |
| Processor cores |
12 |
| Processor boost frequency |
3.9 GHz |
| Processor frequency |
2 GHz |
| Processor model |
4410Y |
| Processor family |
Intel Xeon Silver |
| Processor manufacturer |
Intel |
| Memory |
| Maximum internal memory |
1 TB |
| Memory data transfer rate |
4800 MT/s |
| Memory slots |
16x DIMM |
| Memory layout (slots x size) |
1 x 32 GB |
| Memory ranking |
2 |
| Buffered memory type |
Registered (buffered) |
| Internal memory type |
DDR5-SDRAM |
| Internal memory |
32 GB |
| Storage |
| Internal drive bays |
8 |
| Supported storage drive interfaces |
SAS, Serial ATA |
| Hot-Plug support |
Yes |
| Supported RAID controllers |
PERC H755 |
| RAID support |
Yes |
| SSD size |
2.5″ |
| SSD interface |
SATA III |
| SSD capacity |
480 GB |
| Number of SSDs installed |
1 |
| Total storage capacity |
480 GB |
| Graphics |
| On-board graphics card |
No |
| Network |
| LAN controller |
Broadcom 5720 |
| Ethernet LAN |
Yes |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet interface type |
Gigabit Ethernet |
| Ports & interfaces |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB 2.0 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
4 |
| Design |
| Bezel |
Yes |
| Rack rails |
Yes |
| Product colour |
Black |
| Chassis type |
Rack (1U) |
| Performance |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Remote administration |
iDRAC9, Enterprise 16G |
| Software |
| Compatible operating systems |
Canonical Ubuntu Server LTSMicrosoft Windows Server with Hyper-VRed Hat Enterprise LinuxSUSE Linux Enterprise ServerVMware vSAN/ESXi |
| Operating system installed |
Windows Server 2022 Standard |
| Power |
| Power cable current |
12 A |
| Power cable connector 2 |
C14 coupler |
| Power cable connector 1 |
C13 coupler |
| Power cable length |
2 m |
| Power supply input voltage |
200 – 240 V |
| Number of redundant power supplies installed |
2 |
| Number of redundant power supplies supported |
2 |
| Power supply |
700 W |
| Redundant power supply (RPS) support |
Yes |
| Operational conditions |
| Non-operating altitude |
0 – 12000 m |
| Operating altitude |
0 – 3048 m |
| Storage relative humidity (H-H) |
5 – 95% |
| Storage temperature (T-T) |
-40 – 65 °C |
| Operating temperature (T-T) |
10 – 35 °C |
| General |
| Product family |
PowerEdge |
| Weight & dimensions |
| Height |
42.8 mm |
| Width |
434 mm |
| Other features |
| Data transfer rate |
6 Gbit/s |
| Bytes per sector |
512 |
