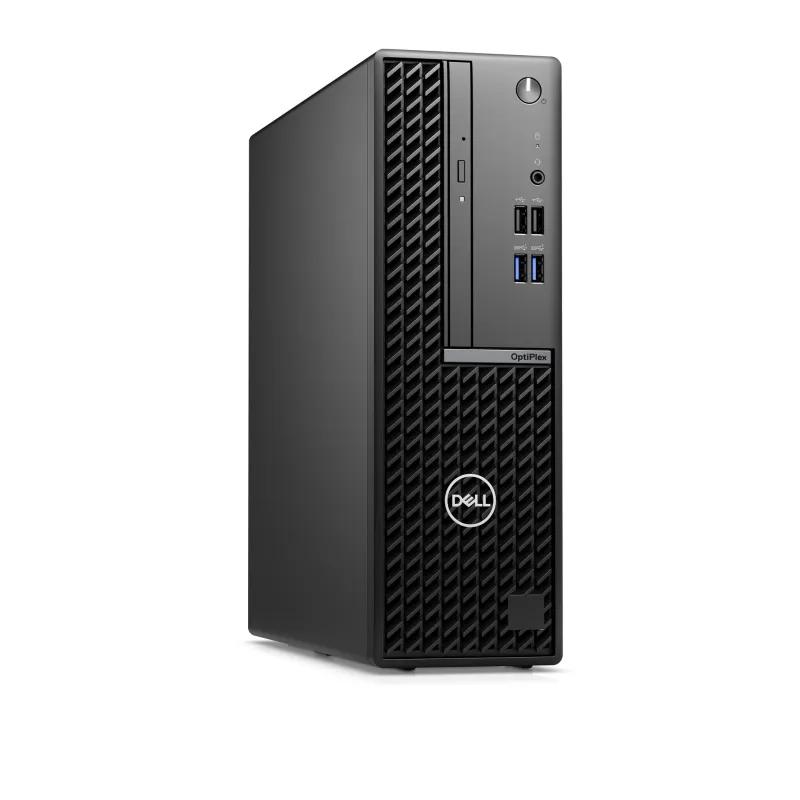

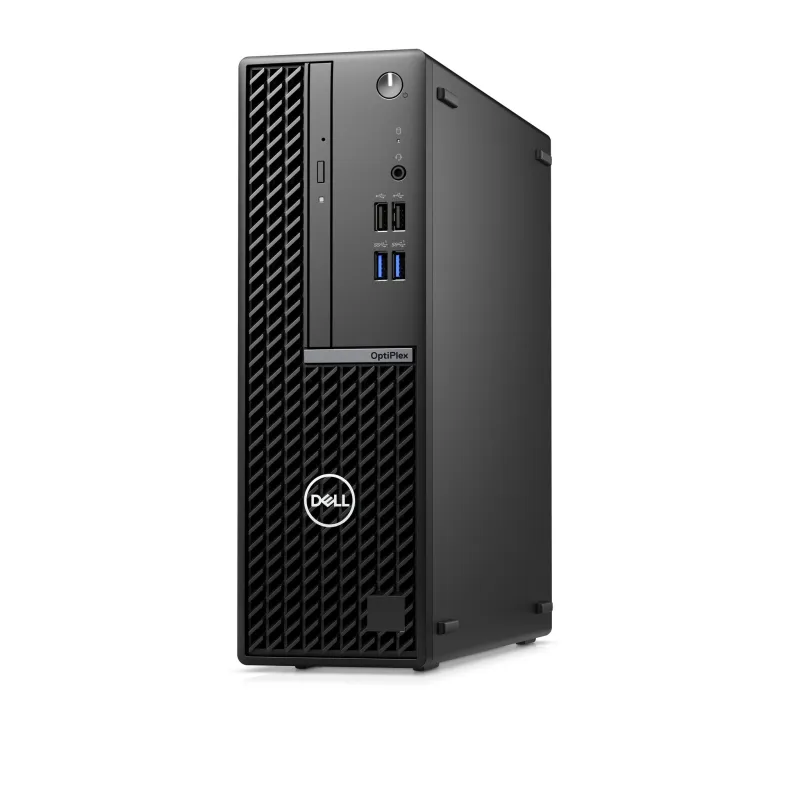

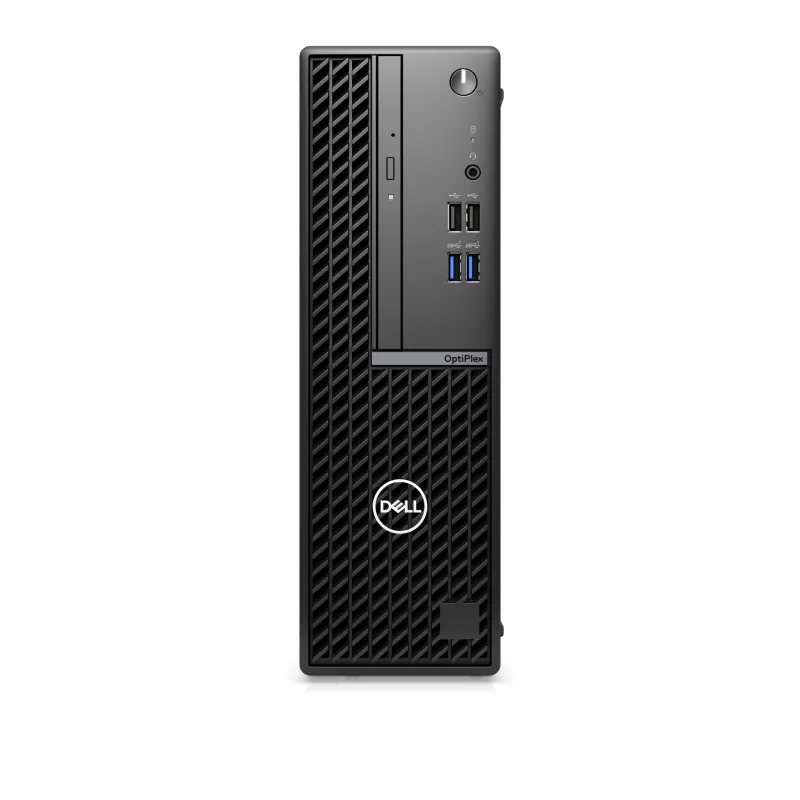

DELL OptiPlex 7010 Intel® Core™ i5 i5-12500 16 GB DDR4-SDRAM 512 GB SSD Windows 11 Pro SFF PC Black
- Windows 11 Pro 64-bit
- Intel Core i5-12500 (18MB Cache)
- 16GB (3200MHz) DDR4-SDRAM (1 x 16) & 512GB SSD
Small form factor desktop with highly expandable performance. Up to 128GB of DDR5 memory and 13th Gen Intel Core™ processors.
| Processor | |
|---|---|
| Processor base power | 65 W |
| Maximum turbo power | 117 W |
| Number of processors installed | 1 |
| Processor cache type | Smart Cache |
| Processor cache | 18 MB |
| Performance-core base frequency | 3 GHz |
| Performance-core Max Turbo Frequency | 4.6 GHz |
| Performance cores | 6 |
| Processor boost frequency | 4.6 GHz |
| Processor threads | 12 |
| Processor cores | 6 |
| Processor model | i5-12500 |
| Processor generation | 12th gen Intel® Core™ i5 |
| Processor family | Intel® Core™ i5 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory clock speed | 3200 MHz |
| Memory slots | 2x DIMM |
| Memory layout (slots x size) | 1 x 16 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 64 GB |
| Internal memory | 16 GB |
| Storage | |
|---|---|
| SSD performance class | 25 |
| SSD form factor | M.2 |
| SSD interface | PCI Express |
| NVMe | Yes |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 512 GB |
| Number of storage drives installed | 1 |
| Storage media | SSD |
| Optical drive type | No |
| Total storage capacity | 512 GB |
| Graphics | |
|---|---|
| On-board graphics card model | Intel UHD Graphics 770 |
| On-board graphics card family | Intel® UHD Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Network | |
|---|---|
| Wi-Fi | No |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| Number of SATA III connectors | 2 |
| DC-in jack | Yes |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPort version | 1.4a |
| DisplayPorts quantity | 1 |
| HDMI version | 1.4b |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 4 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Design | |
|---|---|
| Product colour | Black |
| Cable lock slot | Yes |
| Placement supported | Horizontal/Vertical |
| Chassis type | SFF |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Number of speakers | 1 |
| Built-in speaker(s) | Yes |
| Audio system | High Definition Audio |
| Audio chip | Realtek ALC3246-CG |
| Motherboard chipset | Intel Q670 |
| Product type | PC |
| Software | |
|---|---|
| Bundled software | Windows System Driver |
| Trial software | Activate Your Microsoft 365 For A 30 Day Trial |
| Operating system language | German, Dutch, English, French, Italian |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Power | |
|---|---|
| 80 PLUS certification | 80 PLUS Bronze |
| Power supply input frequency | 47/63 Hz |
| Power supply input voltage | 90 – 264 V |
| Power supply | 180 W |
| Operational conditions | |
|---|---|
| Non-operating shock | 105 G |
| Operating shock | 40 G |
| Non-operating vibration | 1.37 G |
| Operating vibration | 0.26 G |
| Non-operating altitude | -15.2 – 10668 m |
| Operating altitude | -15.2 – 3048 m |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 10 – 35 °C |
| Weight & dimensions | |
|---|---|
| Weight | 3.68 kg |
| Height | 290 mm |
| Depth | 292.8 mm |
| Width | 92.6 mm |
| Packaging content | |
|---|---|
| Cables included | AC |
| Keyboard included on selected markets | Dell Multimedia Keyboard-KB216 – UK (QWERTY) – Black |
| Mouse included on selected markets | Dell Optical Mouse-MS116 – Black |
| Display included | No |
| General | |
|---|---|
| Product family | OptiPlex |
| Product series | 7000 |
| Carbon footprint | |
|---|---|
| Total carbon footprint (kg of CO2e) | 337 |
| Carbon emissions, manufacturing (kg of CO2e) | 214 |
| Carbon emissions, logistics (kg of CO2e) | 15 |
| Carbon emissions, end-of-life (kg of CO2e) | 3 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 232 |
| Total carbon emissions, standard deviation (kg of CO2e) | 86 |
| Carbon emissions, energy usage (kg of CO2e) | 105 |
| PAIA version | 1.3.2, 2022 |
