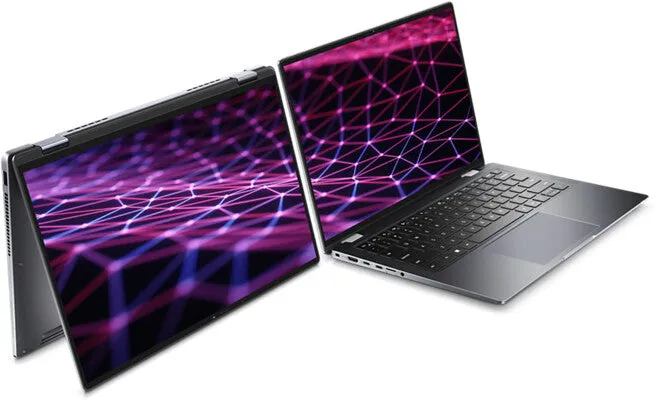

DELL Latitude 9430 2-in-1 Intel® Core™ i7 i7-1265U Hybrid (2-in-1) 35.6 cm (14″) Touchscreen Quad HD+ 16 GB LPDDR5-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 10 Pro Grey
- Windows 10 Pro 64-bit
- Intel Core i7-1265U (12MB Cache)
- 35.6 cm (14″) Quad HD+ 2560 x 1600 Touch
- 16GB (5200MHz) LPDDR5-SDRAM & 512GB SSD
Ultra-premium productivity. Intelligent performance.
Gain the confidence to work anywhere on this ultra-premium laptop or 2-in-1 designed to offer the best productivity, collaboration and connectivity.
| Design |
| Intel® vPro™ Platform Eligibility |
Yes |
| Introduction year |
2022 |
| Market positioning |
Business |
| Form factor |
Convertible (Folder) |
| Product colour |
Grey |
| Product type |
Hybrid (2-in-1) |
| Display |
| Contrast ratio (typical) |
1000:1 |
| Display response rise/fall |
35 ms |
| Maximum refresh rate |
60 Hz |
| RGB colour space |
sRGB |
| Colour gamut |
100% |
| Pixel pitch |
0.1178 x 0.1178 mm |
| Pixel density |
216 ppi |
| Display brightness |
500 cd/m² |
| Native aspect ratio |
16:10 |
| LED backlight |
Yes |
| HD type |
Quad HD+ |
| Touchscreen |
Yes |
| Display resolution |
2560 x 1600 pixels |
| Display diagonal |
35.6 cm (14″) |
| Processor |
| Configurable TDP-down |
12 W |
| Processor cache |
12 MB |
| Processor boost frequency |
4.8 GHz |
| Processor threads |
12 |
| Processor cores |
10 |
| Processor model |
i7-1265U |
| Processor generation |
12th gen Intel® Core™ i7 |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Memory |
| ECC |
No |
| Memory channels |
Dual-channel |
| Maximum internal memory |
16 GB |
| Memory clock speed |
5200 MHz |
| Memory form factor |
On-board |
| Internal memory type |
LPDDR5-SDRAM |
| Internal memory |
16 GB |
| Storage |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated |
Yes |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD performance class |
35 |
| SSD interface |
NVMe, PCI Express |
| NVMe |
Yes |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Storage media |
SSD |
| Total storage capacity |
512 GB |
| Graphics |
| On-board graphics card model |
Intel Iris Xe Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of microphones |
4 |
| Speaker power |
8 W |
| Number of built-in speakers |
4 |
| Audio chip |
Realtek ALC711-CG |
| Camera |
| Privacy type |
Privacy shutter |
| Privacy camera |
Yes |
| Infrared (IR) camera |
Yes |
| Video capturing speed |
30 fps |
| Front camera resolution |
1920 x 1080 pixels |
| Front camera HD type |
Full HD |
| Front camera resolution (numeric) |
0.92 MP |
| Front camera |
Yes |
| Network |
| Bluetooth |
Yes |
| Ethernet LAN |
No |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer |
Intel |
| Antenna type |
2×2 |
| Wi-Fi data rate (max) |
2400 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Mobile network connection |
No |
| Ports & interfaces |
| Number of USB ports with PowerShare support |
1 |
| PowerShare |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| HDMI version |
2.0 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Performance |
| Ambient light sensor |
Yes |
| Accelerometer |
Yes |
| Gyroscope |
Yes |
| Electronic compass |
Yes |
| Keyboard |
| Numeric keypad |
No |
| Keyboard backlit |
Yes |
| Keyboard language |
UK English |
| Pointing device |
SinglePoint |
| Software |
| Trial software |
No Microsoft Office License Included 30 day Trial Offer Only |
| Operating system language |
German, Dutch, English, French, Italian |
| Windows 11 free upgrade |
Yes |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 Pro |
| Processor special features |
| CPU configuration (max) |
1 |
| Intel Stable Image Platform Program (SIPP) |
Yes |
| Intel Flex Memory Access |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Execute Disable Bit |
Yes |
| Embedded options available |
No |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel® Evo™ Platform Verified |
Yes |
| Battery |
| Battery weight |
260 g |
| Battery recharge time |
4 h |
| Battery voltage |
11.4 V |
| Battery capacity |
59.6 Wh |
| Number of battery cells |
3 |
| Power |
| USB charging current |
3 A |
| USB charging voltage |
20,5,9,15 V |
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C charging port |
Yes |
| AC adapter input voltage |
100 – 240 V |
| AC adapter frequency |
50/60 Hz |
| AC adapter power |
60 W |
| Security |
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Fingerprint reader |
Yes |
| Cable lock slot |
Yes |
| Operational conditions |
| Non-operating vibration |
1.3 G |
| Operating vibration |
0.66 G |
| Non-operating shock |
160 G |
| Operating shock |
140 G |
| Non-operating altitude |
-15.2 – 10668 m |
| Operating altitude |
-15.2 – 3048 m |
| Storage relative humidity (H-H) |
0 – 95% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 60 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Height (rear) |
1.39 cm |
| Height (front) |
8.46 mm |
| Depth |
215.2 mm |
| Width |
310.6 mm |
| Weight |
1.4 kg |
| General |
| Product family |
Latitude |
| Product series |
9000 |
| Carbon footprint |
| Carbon emissions, end-of-life (kg of CO2e) |
2 |
| Total carbon emissions, standard deviation (kg of CO2e) |
89 |
| Carbon emissions, energy usage (kg of CO2e) |
21 |
| PAIA version |
1.3.1 |
| Total carbon footprint (kg of CO2e) |
375 |
| Carbon emissions, manufacturing (kg of CO2e) |
341 |
| Carbon emissions, logistics (kg of CO2e) |
12 |
| Total carbon emissions, w/o use phase (kg of CO2e) |
354 |
| Packaging content |
| Cables included |
AC |
| Logistics data |
| Harmonized System (HS) code |
84713000 |
