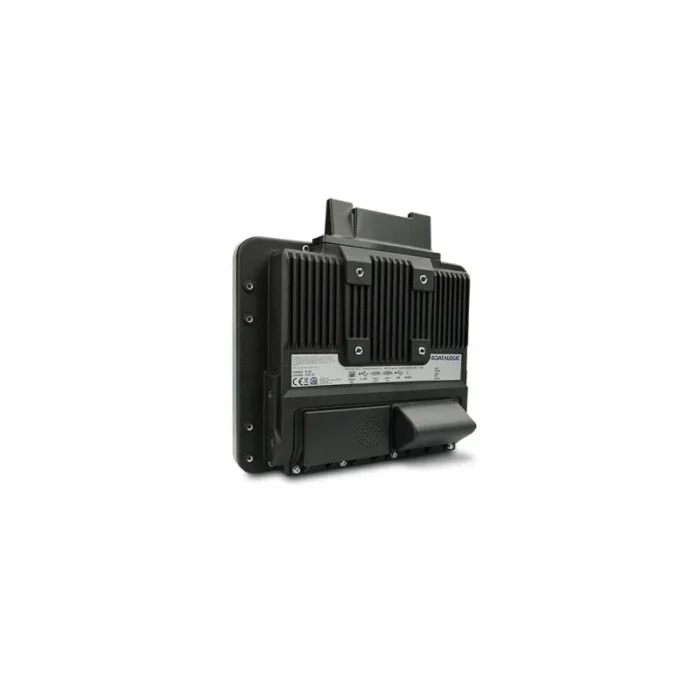

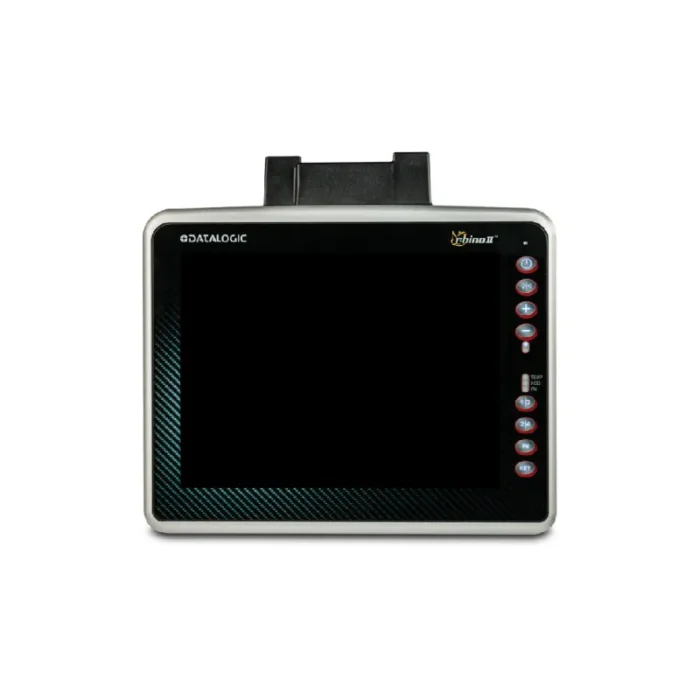

Datalogic Rhino II
Rhino II™ Vehicle Mount Computer
The Rhino II™ vehicle mount computers, available in both 10” and 12” display sizes, set the standard for ruggedness in the warehouse.
The Rhino II™ vehicle mount computers, available in both 10” and 12” display sizes, set the standard for ruggedness in the warehouse. A sealed design tested to IP65/IP67 ensures operation in the toughest environments. A dedicated freezer-rated model with integrated display heater allows use in and out of cold storage. The capacitive touch models feature 3 mm anti-glare armored glass, while still allowing use of gloves.
Tailored for warehouse management, the Rhino vehicle mount computer increases productivity with its easy integration of PowerScan or other automated data collection devices.
The Rhino II offers a wide choice of Operating Systems: Windows Embedded Compact 7 (WEC7), Windows Embedded Standard 7, Windows 10 IoT Enterprise and the new Android™ 7.1
| Display | |
|---|---|
| Touchscreen type | Capacitive |
| Touchscreen | Yes |
| Display brightness | 500 cd/m² |
| Display resolution | 1024 x 768 pixels |
| Display diagonal | 30.5 cm (12″) |
| Built-in display | Yes |
| Memory | |
|---|---|
| Compatible memory cards | SDHC |
| Card reader integrated | Yes |
| Total storage capacity | 64 GB |
| Internal memory | 4 GB |
| Features | |
|---|---|
| Front camera | No |
| Network | |
|---|---|
| Bluetooth version | 4.0 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Ports & interfaces | |
|---|---|
| COM ports quantity | 1 |
| RS-232 ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Design | |
|---|---|
| International Protection (IP) code | IP65, IP67 |
| Protection features | Dust resistant, Splash proof, Vibration proof |
| Product colour | Black |
| Keyboard | |
|---|---|
| Number of programmable keys | 4 |
| Software | |
|---|---|
| Operating system installed | Windows 10 IoT Enterprise |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 90% |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -30 – 55 °C |
| Operating temperature (T-T) | -20 – 55 °C |
| Weight & dimensions | |
|---|---|
| Weight | 4.7 kg |
| Height | 71 mm |
| Depth | 251 mm |
| Width | 324 mm |
