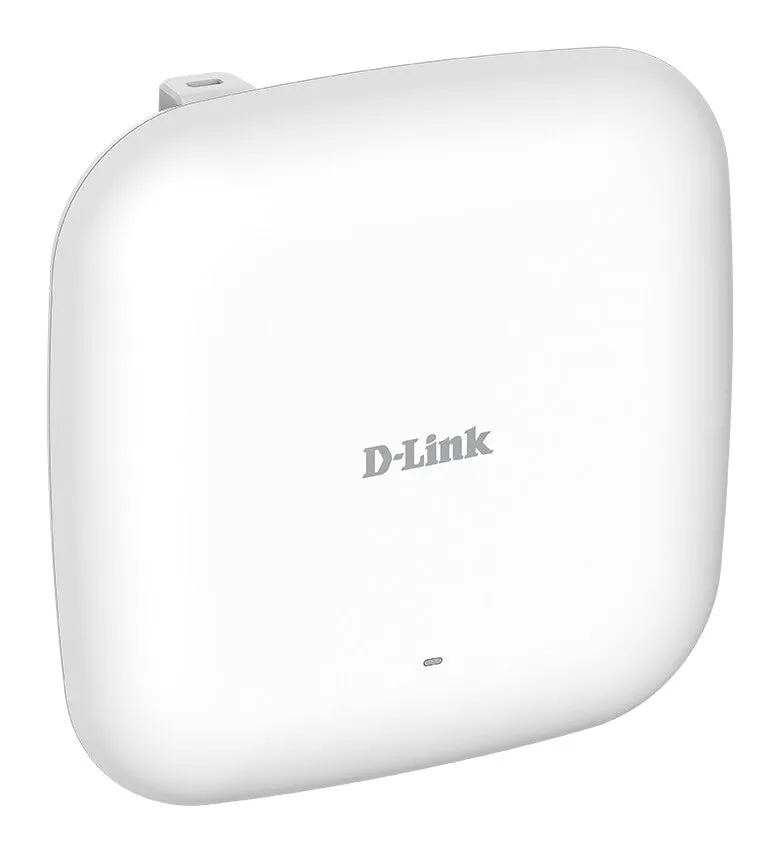

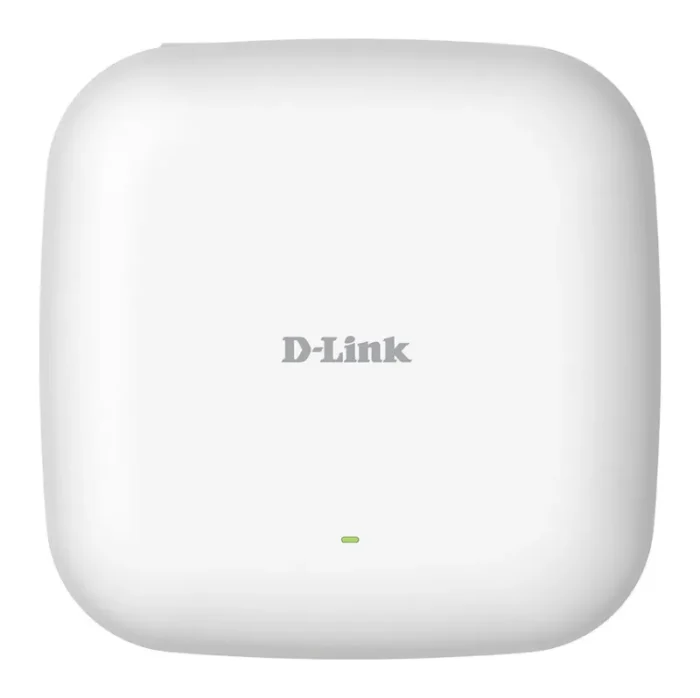

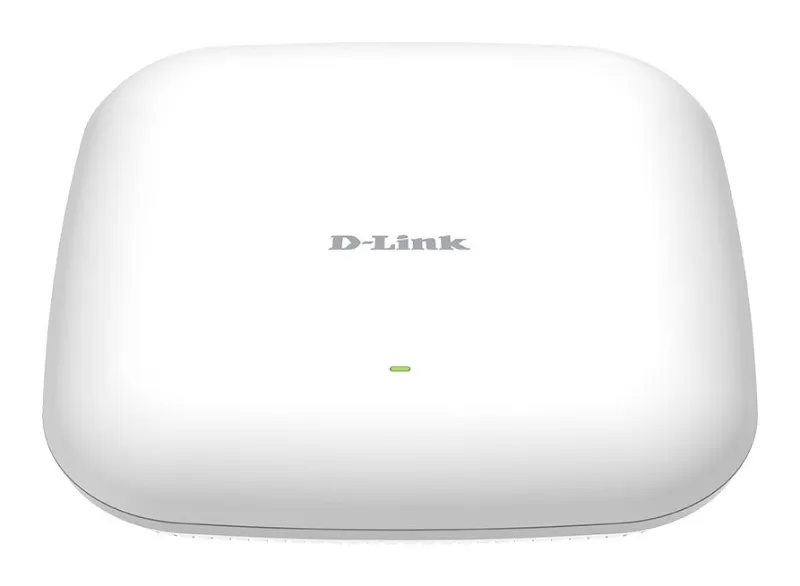

D-Link Wireless AC1200 Wave 2 Dual-Band PoE Access Point DAP-2662
- WiFi4EU Ready
- Wi-Fi CERTIFIED Passpoint® (complies with Hotspot 2.0) High-performance Connectivity
- IEEE 802.11ac Wave 2 wireless, Up to 1200 Mbps
- MU-MIMO with beamforming
- Band steering
- Gigabit LAN port Centralised Management
- Compatible with Nuclias Connect for centralised network management Trusted Security Features
- 128-bit personal wireless encryption
- 128-bit enterprise wirelss encryption
- MAC address filtering
- Internal RADIUS server Convenient Installation
- Supports 802.3af Power over Ethernet
- Wall and ceiling mounting brackets included
The WiFi4EU ready DAP-2662 Wireless AC1200 Wave 2 Dual-Band PoE Access Point is designed to provide wireless connectivity in public places, such as public buildings, libraries, health centres and museums, with secure and centrally manageable dual-band Wi-Fi. Utilising the cutting-edge speed of 802.11ac Wave 2, it delivers maximum combined wireless signal rates of up to 1200Mbps and supports MU-MIMO technology that allows multiple devices to get high-bandwidth Wi-Fi signal at the same time, distributing data more efficiently. It is Passpoint® certified by Wi-Fi Alliance and complies with Hotspot 2.0, making the process of devices finding and getting access to the known network seamless. For centralise network management, administrators can use D-Link’s free Nuclias Connect software or Nuclias Connect Hub (DNH-100) to configure and manage multiple access points. In addition to streamlining the management process, Nuclias Connect provides network administrators with the means to verify and conduct regular maintenance checks remotely, eliminating the need to send personnel out to physically verify proper operation.
| Features |
| Mean time between failures (MTBF) |
341897 h |
| Transmitting power |
26 dBmW |
| Cabling technology |
10/100/1000Base-T(X) |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af |
| Frequency band |
2.4, 5 GHz |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Maximum data transfer rate (5 GHz) |
867 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
300 Mbit/s |
| Maximum data transfer rate |
1200 Mbit/s |
| 5 GHz |
Yes |
| 6 GHz |
No |
| 2.4 GHz |
Yes |
| Security |
| Number of SSID supported |
16 |
| Security algorithms |
64-bit WEP, 128-bit WEP, SSID |
| Ports & interfaces |
| DC-in jack |
Yes |
| WAN connection |
Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
| Power consumption (max) |
6.5 W |
| DC voltage range |
12 V |
| Power over Ethernet (PoE) |
Yes |
| Design |
| LED indicators |
Power |
| Cable lock slot |
Yes |
| Product colour |
White |
| Placement |
Ceiling, Table, Wall |
| Antenna |
| Antenna gain level (max) |
3.8 dBi |
| Antennas quantity |
2 |
| Antenna features |
Integrated antenna |
| Antenna type |
Internal |
| Technical details |
| Shipping (inner) case length |
43.1 cm |
| Shipping (inner) case width |
38.3 cm |
| Shipping (inner) case height |
26.8 cm |
| Shipping (inner) case net weight |
3.9 kg |
| Products per shipping (inner) case |
10 pc(s) |
| Pallet gross weight (air) |
174 kg |
| Master (outer) cases per pallet (air) |
42 pc(s) |
| Products per pallet (air) |
420 pc(s) |
| Pallet gross length |
120 cm |
| Pallet gross width |
110 cm |
| Pallet height (air) |
2.01 m |
| Pallet gross weight (sea) |
174 kg |
| Master (outer) cases per pallet (sea) |
42 pc(s) |
| Products per pallet (sea) |
420 pc(s) |
| Pallet height (sea) |
2.01 m |
| Shipping (inner) case gross weight |
4 kg |
| Certificates |
| Certification |
FCC, IC, CE, UL, Wi-Fi Certified, Wi-Fi Certified Passpoint |
| Weight & dimensions |
| Weight |
350 g |
| Height |
170 mm |
| Depth |
28 mm |
| Width |
170 mm |
| Packaging data |
| Package weight |
390 g |
| Package height |
73 mm |
| Package depth |
248 mm |
| Package width |
208 mm |
| Packaging content |
| Quantity per pack |
1 pc(s) |
| Other features |
| Frequency range |
2400 – 5850 MHz |
| Operational conditions |
| Storage relative humidity (H-H) |
5 – 95% |
| Storage temperature (T-T) |
-20 – 65 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Operating relative humidity (H-H) |
10 – 90% |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
