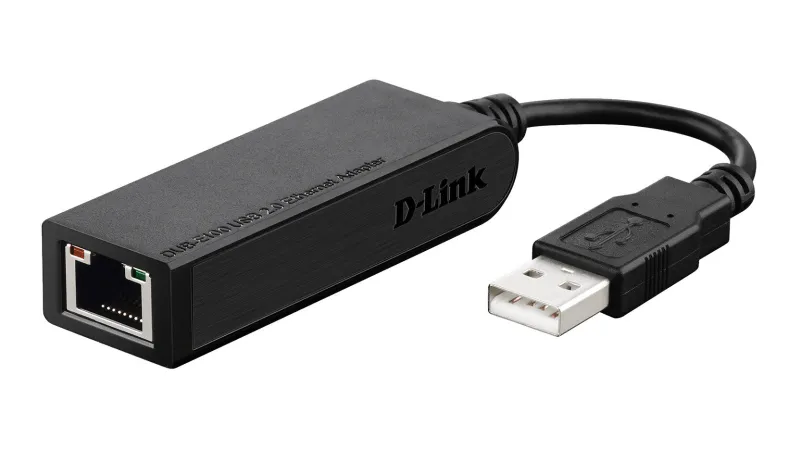

D-Link DLINK 10/100 ETHERNET ADAPTER
- Wired
- USB Ethernet
- 100 Mbit/s 10/100BaseT(X)
- Component for: PC
The D-Link DUB-E100 is a Hi-Speed USB 2.0 10/100Mbps Fast Ethernet Adapter specifically designed to plug into an available Universal Serial Bus (USB) port on a desktop or laptop PC running Microsoft Windows XP, Me, 2000 or 98SE. Based on USB 2.0, the DUB-E100 extends the transfer speed of earlier USB Fast Ethernet adapters to true 10/100Mbps connectivity.
As a USB device, the D-Link DUB-E100 eliminates the need to use an ISA, PCI, or PC Card slot to add LAN connectivity to a PC desktop or laptop computer. Installation and use are further simplified by living up to USB’s out-of-the-box installation approach to connecting computer peripherals. You will not need to open the case of your computer, nor will you be required to set IRQ’s. The D-Link DUB-E100 represents the simplest way to connect your computer to an Ethernet based network.
The D-Link DUB-E100 provides a standard RJ-45 connector for a quick and simple method of connecting to an Ethernet 10Mbps or Fast Ethernet 100Mbps based LAN via a network hub or switch. The built-in USB 2.0 cable connects directly to your computer or laptop.
Power for the DUB-E100 is provided directly by the USB bus, eliminating the need for an external power adapter. It also supports USB’s energy saving suspend and resume functions to minimize power consumption, which is especially useful for laptop/notebook users.
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | Ethernet |
| Host interface | USB |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Full duplex | Yes |
| Cabling technology | 10/100BaseT(X) |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Maximum data transfer rate | 100 Mbit/s |
| Design | |
|---|---|
| Certification | FCC Class B, CE Class B |
| LED indicators | Link, Power |
| Product colour | Black |
| Component for | PC |
| Internal | No |
| Power | |
|---|---|
| Power consumption | 150 mA |
| Power consumption (typical) | 2.5 W |
| Input current | 0.5 A |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -10 – 70 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 22 g |
| Height | 20 mm |
| Depth | 73 mm |
| Width | 21.3 mm |
| Packaging data | |
|---|---|
| Package weight | 116 g |
| Package height | 30 mm |
| Package depth | 138 mm |
| Package width | 138 mm |
| Logistics data | |
|---|---|
| Pallet gross length | 120 cm |
| Pallet gross width | 110 cm |
| Shipping (inner) case net weight | 1.88 kg |
| Shipping (inner) case length | 36 cm |
| Shipping (inner) case height | 34.5 cm |
| Shipping (inner) case width | 32 cm |
| Products per shipping (inner) case | 40 pc(s) |
| Pallet gross weight (air) | 378 kg |
| Master (outer) cases per pallet (air) | 45 pc(s) |
| Products per pallet (air) | 1800 pc(s) |
| Pallet height (air) | 186 cm |
| Pallet gross weight (sea) | 378 kg |
| Master (outer) cases per pallet (sea) | 45 pc(s) |
| Products per pallet (sea) | 1800 pc(s) |
| Pallet height (sea) | 186 cm |
| Shipping (inner) case gross weight | 8.4 kg |
| Harmonized System (HS) code | 85176990 |
| Other features | |
|---|---|
| Supported data transfer rates | 10/100 |
| Ports quantity | 1 |
| Compliance industry standards | OHCI, EHCI |
- EU Declaration of Conformity
- Quick Installation Guide
- Image of packaging
- leaflet
- manual pdf
