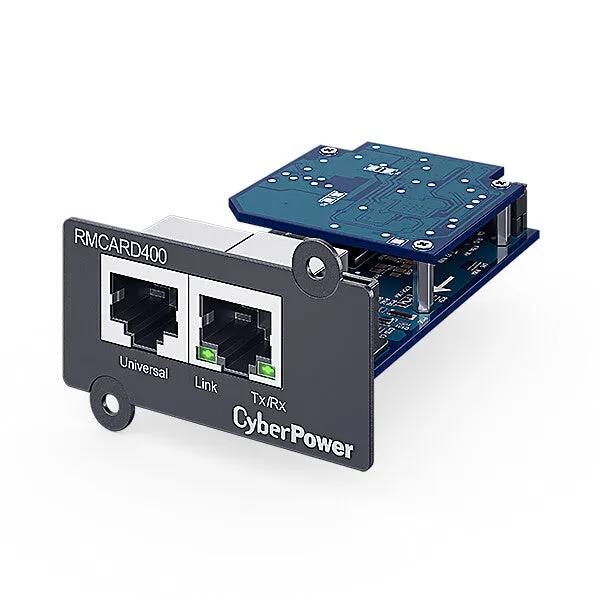

CyberPower RMCARD400 network card Internal Ethernet 1000 Mbit/s
- Wired
- Ethernet
- Gigabit Ethernet 1000 Mbit/s 10/100/1000BaseT(X)
- Internal Component for: Uninterruptible power supply (UPS)
A full-featured network management card, the CyberPower RMCARD400 Gigabit SNMP card remotely manages, monitors and controls select CyberPower UPS systems via a standard web browser, command line interface (CLI), SNMP or network management system (NMS). Especially suited to enterprise installations, the RMCARD400 provides scheduling for UPS shutdown, startup, and rebooting, along with event action settings, event logging, status recording, and automatic event notifications via email, SMS, SNMP traps, or Syslog. PowerPanel® Business Edition Client software protects servers and workstations from data loss due to power failure by initiating auto-shutdown command from a UPS when a power loss event occurs.
An optional environmental sensor (ENVIROSENSOR) can be connected to the RMCARD400 to monitor the ambient temperature and humidity of a server room, IT closet, or other critical environments. Administrators define temperature parameters in Fahrenheit or Celsius; thresholds can be configured to prompt the RMCARD400 to send a predefined notifications. The RMCARD400 comes with a three-year warranty.
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
2 |
| Interface |
Ethernet |
| Connectivity technology |
Wired |
| Network |
| Supported network protocols |
TCP/IP, UDP, FTP, SCP, DHCP, DNS, SSH, Telnet, HTTP/HTTPS, SNMPv1/v3, IPv4/v6, NTP, SMTP, Syslog |
| Cabling technology |
10/100/1000BaseT(X) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Networking standards |
IEEE 802.1x |
| Maximum data transfer rate |
1000 Mbit/s |
| Design |
| Certification |
CE, FCC Class A, RoHS |
| LED indicators |
Link, TX / RX |
| Component for |
Uninterruptible power supply (UPS) |
| Internal |
Yes |
| Operational conditions |
| Storage relative humidity (H-H) |
0 – 95% |
| Operating relative humidity (H-H) |
0 – 90% |
| Storage temperature (T-T) |
-10 – 50 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Sustainability |
| Sustainability compliance |
Yes |
| Weight & dimensions |
| Weight |
40 g |
| Height |
36 mm |
| Depth |
76 mm |
| Width |
54 mm |
| Packaging data |
| Package weight |
300 g |
| Package height |
165 mm |
| Package depth |
170 mm |
| Package width |
60 mm |
| Technical details |
| Compliance certificates |
Federal Communications Commission (FCC), RoHS |
